14 Bend-Tech Dragon
Material Coolant System Assembly
02
Material Coolant System Assembly Manual
tight.
Repeat this process with the third coolant tray.

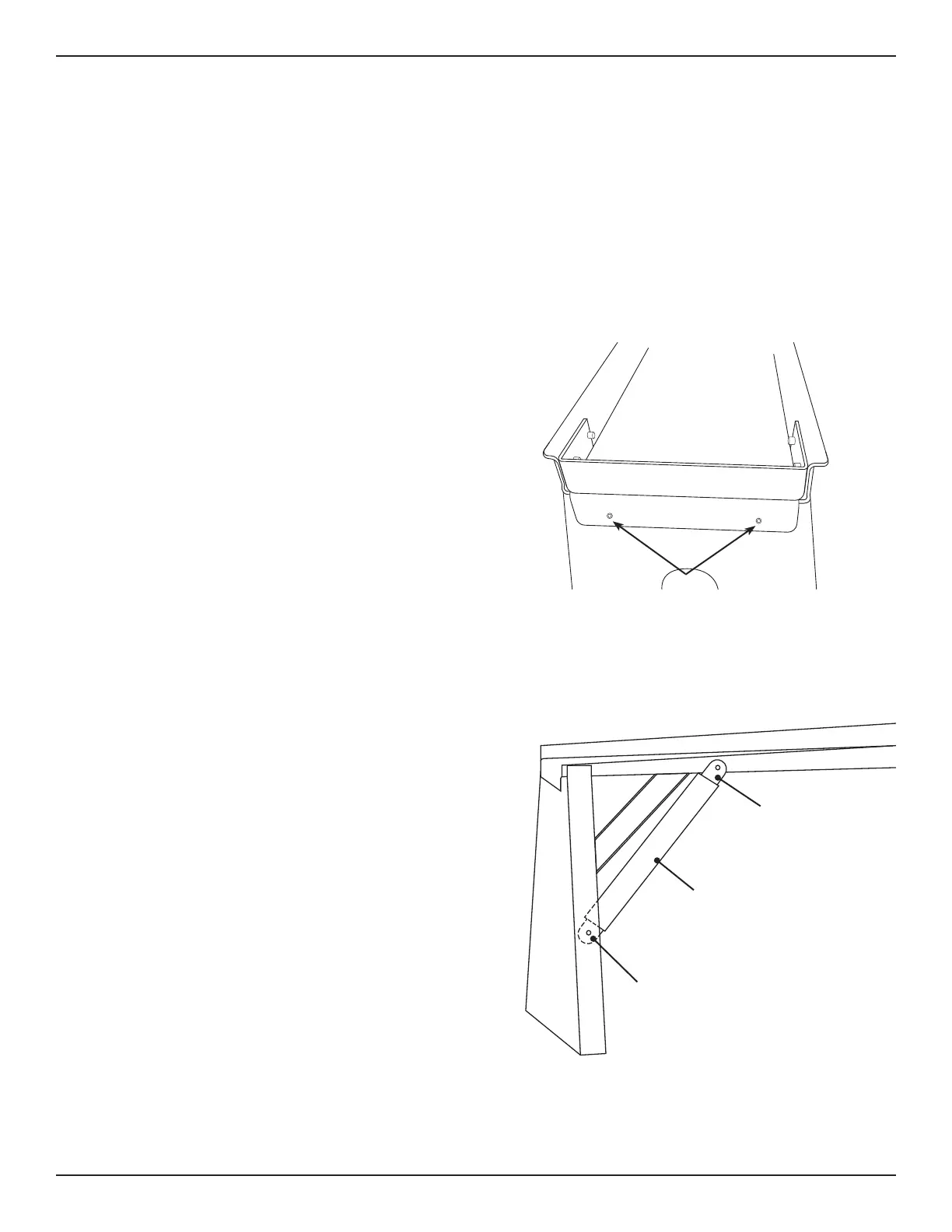

2.2.7 C-Bracket
Place the C-Bracket at the front end of Aluminum Tray No. 3. Align the mounting holes of the
third support leg with the holes in the
Water Tray and C-Bracket.
with the heads on the inside of the Water
Tray and the nuts and washers on the
outside of the support leg.
Below the C-Bracket, insert two ¾ in.
button head fasteners, with the heads on
leg and the nuts on the inside, to secure
leg.
2.2.8 Support Leg Braces
Starting at the front of the system, use (12)
¾ in. button head screws, washers and
nuts to attach the support leg braces to the
support legs and the coolant trays.
brace to the inside the of the support leg,
inserting the button head screws so the
head is on the outside of the support leg
and nut and washer are on the inside.
Attach the bent end of the support leg brace
to the outside of the coolant tray, feeding
the button head screw from the inside of the
coolant tray and the nut and washer are on
the outside.
Outside of Tray
(Bent End)
Support Leg Brace
Inside of Support
Leg (Flat End)
Tray 3
C-Bracket
fasteners
To Next Page
