2.3.2 PVC Drain Installation
The PVC drain system is installed beginning at the parts catcher and then working to the end
of the trays. The PVC parts are numbered in order of installation. During this process the
Installer will also place and connect the coolant reservoir. Using PVC cement, install the parts
per diagram 2.3.3.

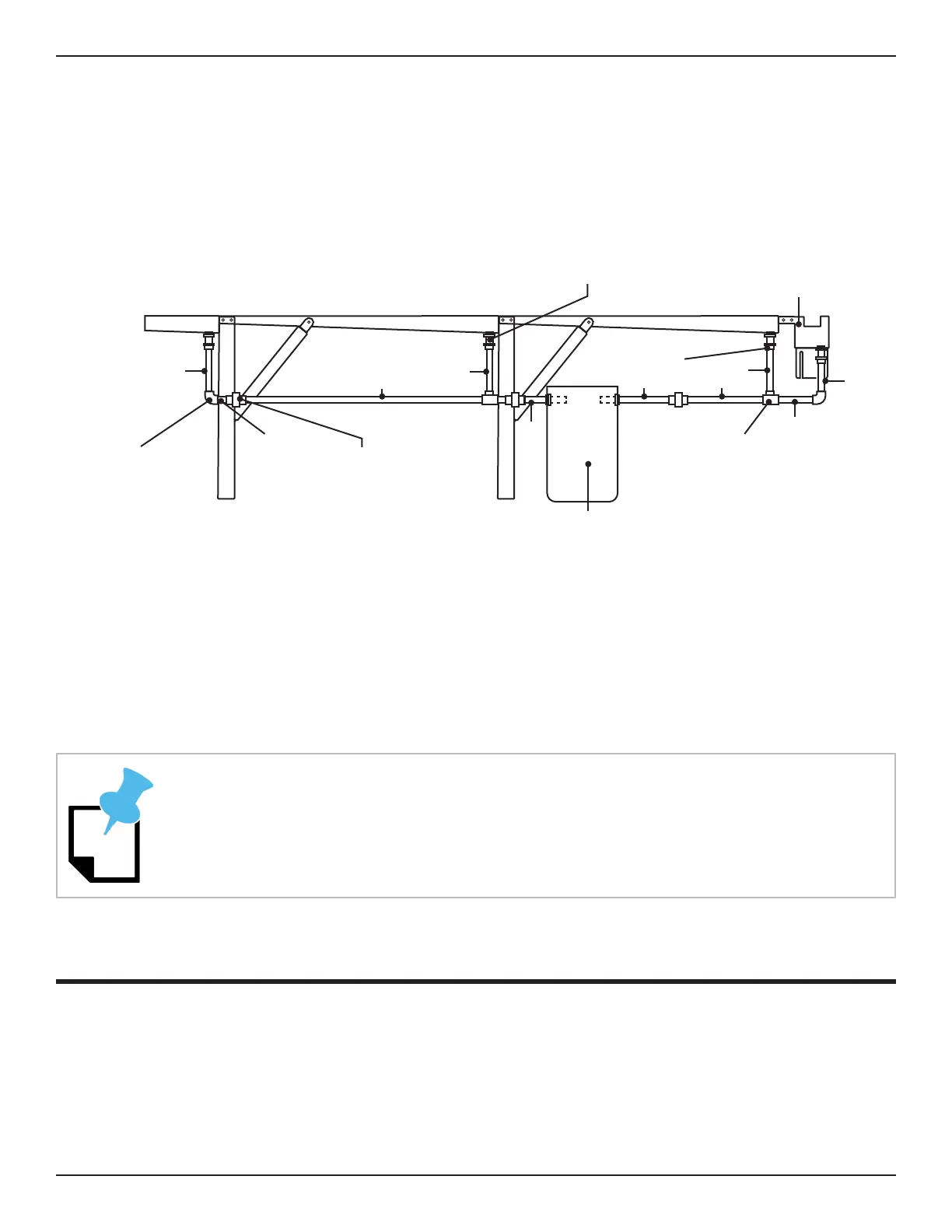

2.3.3 Tray System Drain Diagram
2.3.4 Placing the Cooling System Reservoir
Place the coolant reservoir according the diagram in section 2.3.3. Install the screens on the
drains feeding into the coolant reservoir. Secure using zip ties.
Fit the No. 5 and No. 6 PVC pieces through the grommets in the reservoir.
2.4 Water Pump
The material coolant system requires a water pump to be operational. Because customer
needs can vary, Bend-Tech does not supply a water pump with the coolant system. The
Customer will be required to supply a water pump to complete the coolant system. Refer to
Drain Bung
Coupler
Parts Catcher
Union Fitting
Elbow Fitting
T Fitting
Cooling System
Reservoir
1
2
3
45
8
9
10
11
6
Depending on the size of the the water pump used, the pump may need to be placed
into the reservoir prior to connecting the reservoir to the rest of the PVC drain system.
