17Bend-Tech Dragon
Material Coolant System Assembly
02
Material Coolant System Assembly Manual
2.4.1 Water Pump Requirements
2.4.2 Recommended Water Pump Specications
Voltage 120VAC
Running Amps 3.84
Horsepower .5
Volume 2500GPH
2.5 Hose System
The material coolant system uses hoses to transport water from the coolant reservoir back
through the material.
2.6 Connect the Pump
and attach to the water pump. Using a hose clamp
from the hose attachment bag, place the clamp
over the end of the long hose and slip the hose
securely.
2.7 Install the Water Pump
With the hose attached to the pump, set the pump
inside the coolant reservoir. Install the cover on the
coolant reservoir, routing the water pump power
cord and hose through the opening in the cover.
Attach the wireless remote-control outlet to the
water pump power cord, and then the yellow GFCI
power cable to the remote-control outlet.

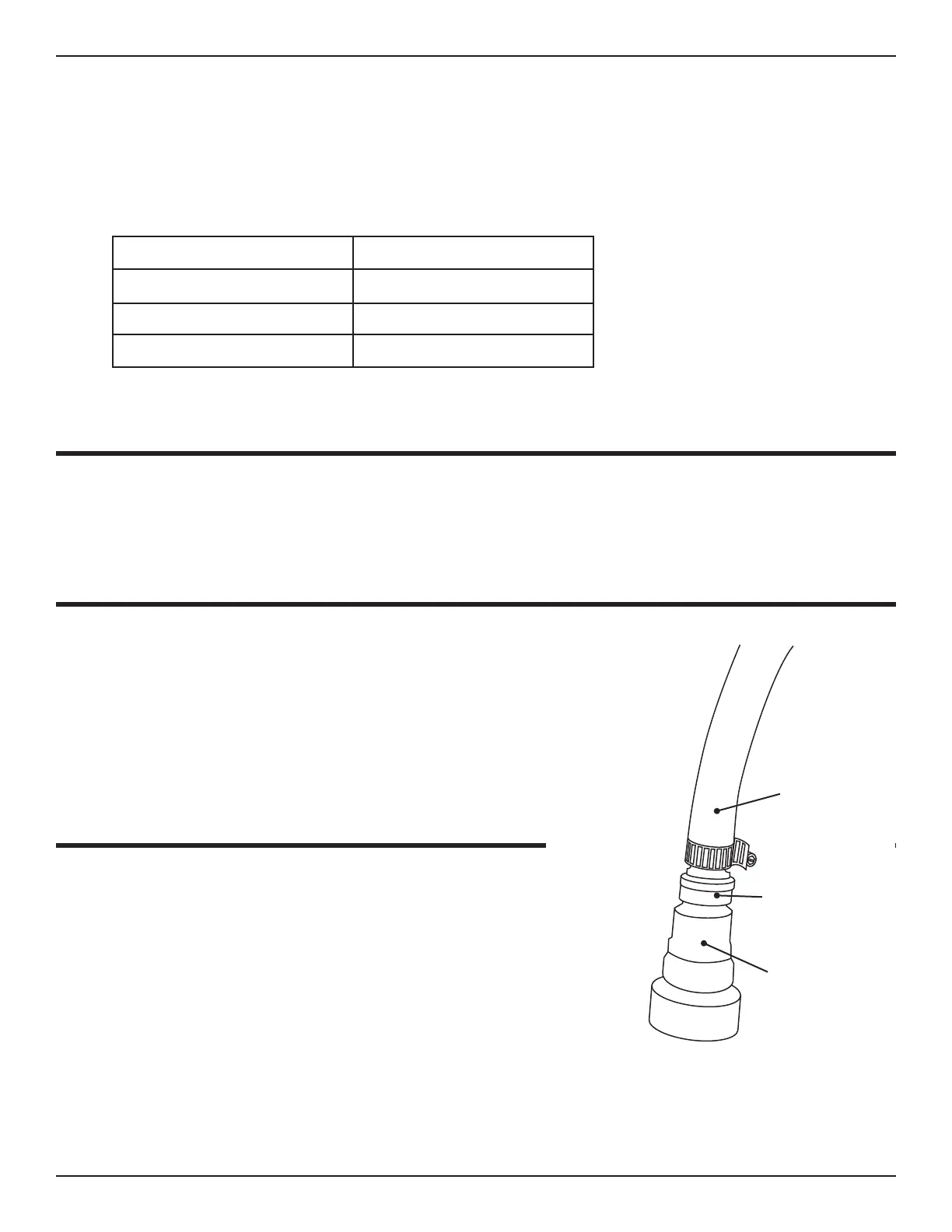

Hose Clamp
Brass Barb Fitting
Water Pump Outlet
To Next Page
