19Bend-Tech Dragon
Material Coolant System Assembly
02
Material Coolant System Assembly Manual

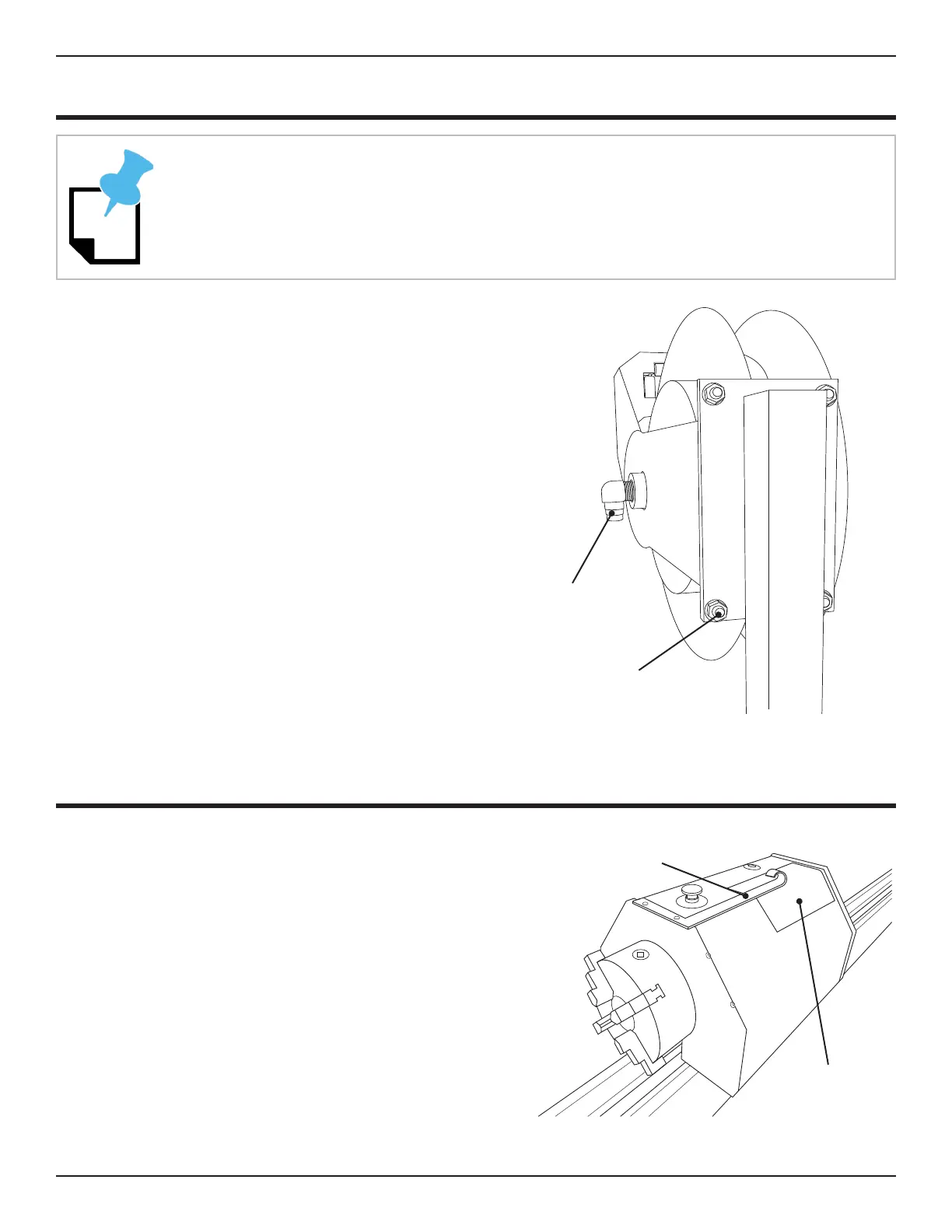

2.10 Hose Reel
four nyloc nuts in the hardware bag.
Position the hose reel in place on the
hose reel mount, aligning the four
hex bolts one at a time, with the head
on the hose reel side. Thread the nyloc
nuts on until they hit the nylon insert.
When all four bolts are in, tighten
socket.
Connect the water hose to the brass
connection on the side of the hose reel
and secure with a hose clamp.
2.11 Trolley Hose Mount
Before attaching the hose mount to the front of
the trolley cover, locate the black rubber mat.
Remove the backing from the rubber mat and
stick it to the side of the trolley cover as shown in
the image. This will reduce physical wear of the
Remove the two screws at the front of the trolley
cover, just above the chuck. Place the trolley
hose mount on the trolley cover. Fasten to the
trolley cover using the two trolley cover screws.
The hose reel is heavy, enlist help during the mounting process.
Hose Mount
Intake Connection
Black Rubber Mat
To Next Page
