Connection
Alternative c
onnec
tion for pow
er contactor
Alternatively
, the power contactor can be contr
olled via the customer's own AC or DC mains part in
combination with the 230 V relay (terminal H: 23, 24).

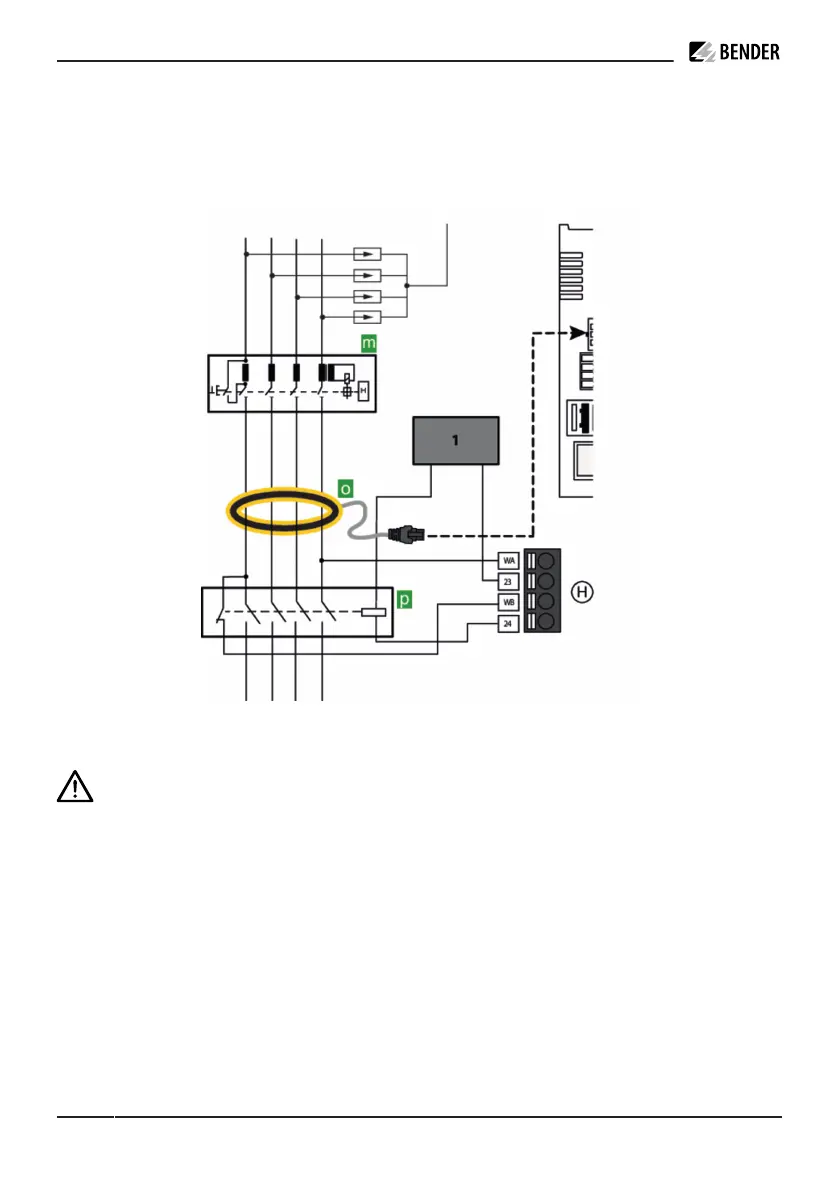

Detail of wiring diagram chapter "Charging system with type 2 socket-outlet"
1
Customer mains part (AC/DC)
ADVICE
Caution: DC residual currents caused b
y the contactor or the control relay are not detected
.
18
CC613_D00381_07_M_X
XEN/02.2023
17
19
Table of Contents
Table of Contents
3
General Instructions
5
How to Use the Manual
5
Indication of Important Instructions and Information
5
Signs and Symbols
5
Service and Support
5
Training Courses and Seminars
5
Delivery Conditions
6
Inspection, Transport and Storage
6
Warranty and Liability
6
Disposal of Bender Devices
6
Safety
7
Function
8
Intended Use
8
Device Features (Depending on the Variant)
8
Product Description
9
Functional Description
9
General Functions (Depending on the Variant)
9
Temperature Monitoring - Load Current and Cooling Monitoring
10
LED Indications
11
Dimensions and Mounting
12
Connection
13
Connection Plug Connections
13
Wiring Diagram
14
Connectivity
17
Master/Slave Connection
17
Interfaces
17
Power Contactor Connection
17
PE Monitoring
19
Control Pilot (CP) and Proximity Pilot Connections (PP)
20
I/O Extension (Depending on the Variant)
21
Emergency Opener
21
Residual Direct Current Monitoring Module (RDC-M)
21
Connectivity with Modbus Meters
21
4.3.10 Gateway Variants with Modem
21
Con Guration and Testing
23
Con Guration (Depending on the Variant)
23
Local con Guration of Parameters
23
Remote con Guration of Parameters
25
Factory Settings
25
Testing and System Boot Process
26
Connectivity to the Backend
26
Plug Locking and Unlocking
27
Authorisation and Charging
27
Technical Data
28
Declaration of Conformity
32
Standards and Approvals
32
Ordering Information
32
Revision History
33
