Connection

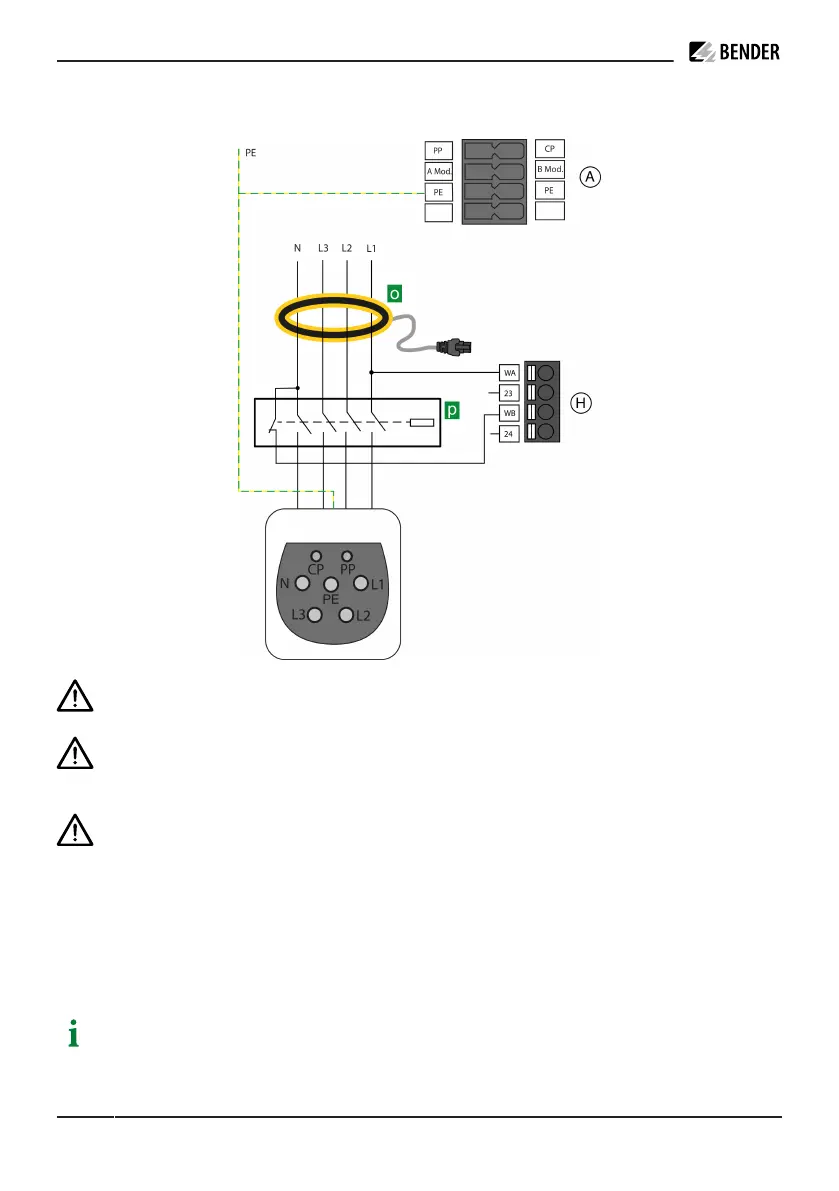

Wiring diagram
ADVICE
PE monitoring does not replace tests (e.g. protective earth resistance).
ADVICE
The Ethernet shield and the USB shield are directly connected to PE. This must be taken into
account in the test!
ADVICE
HV test: WA is coupled to PE via a protective circuit and with approximately 140 kΩ.
Above 500 V, a leakage current ows to PE.
Test voltages above AC 1000 V/1 s are not permissible!
4.3.5 Control Pilot (CP) and Proximity Pilot connections (PP)
The PP contact identies the connected charging cable and limits the maximum possible charging current.
The CP contact enables communication with the vehicle (see IEC61851 series of standards).
PP is not required if the charging cable is permanently installed.
20 CC613_D00381_07_M_XXEN/02.2023
