Bender RCMA423 - Assigning Alarm Categories to the Alarm Relays

Operation and setting
27
RCMA423_D00063_03_M_XXEN/03.2021
5.5.4 Assigning alarm categories to the alarm relays
Overcurrent, undercurrent and device-related errors of the residual current
monitor can be assigned to the alarm relays K1 (r1, 1) and K2 (r2, 2). By default,
the alarm relays K1 and K2 signal prewarning and alarm in case of overcurrent
and device-related errors.

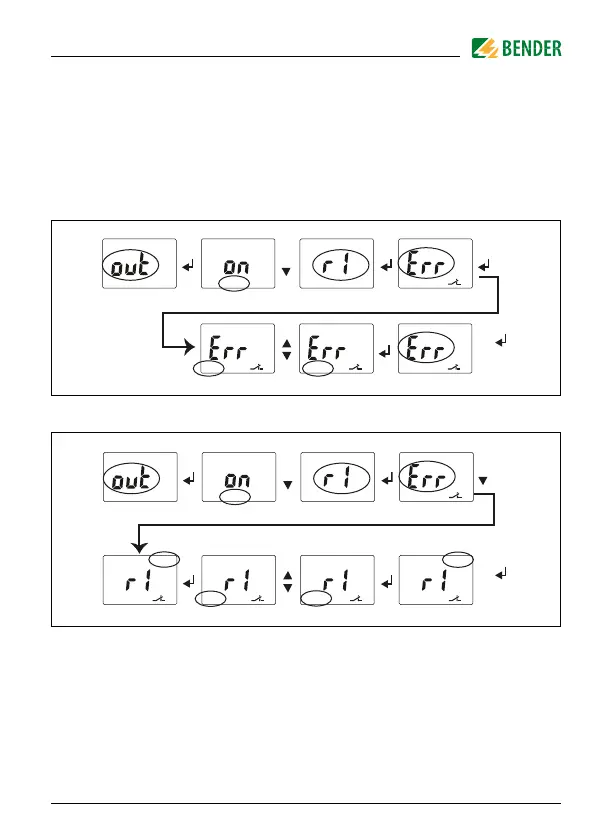

Alarm relay K1: Deactivating the category device error
Alarm relay K1: Deactivating the category response value I1
M
on
1
on
1
o
1
o
1
> 1,5 s
4x
3x
M
on
1
on
1
I
on
1
I
o
1
I
o
1
I
> 1.5 s
4x
3x
