Bendix/King KFC 400 - KHC 441 Heading and Course Controller

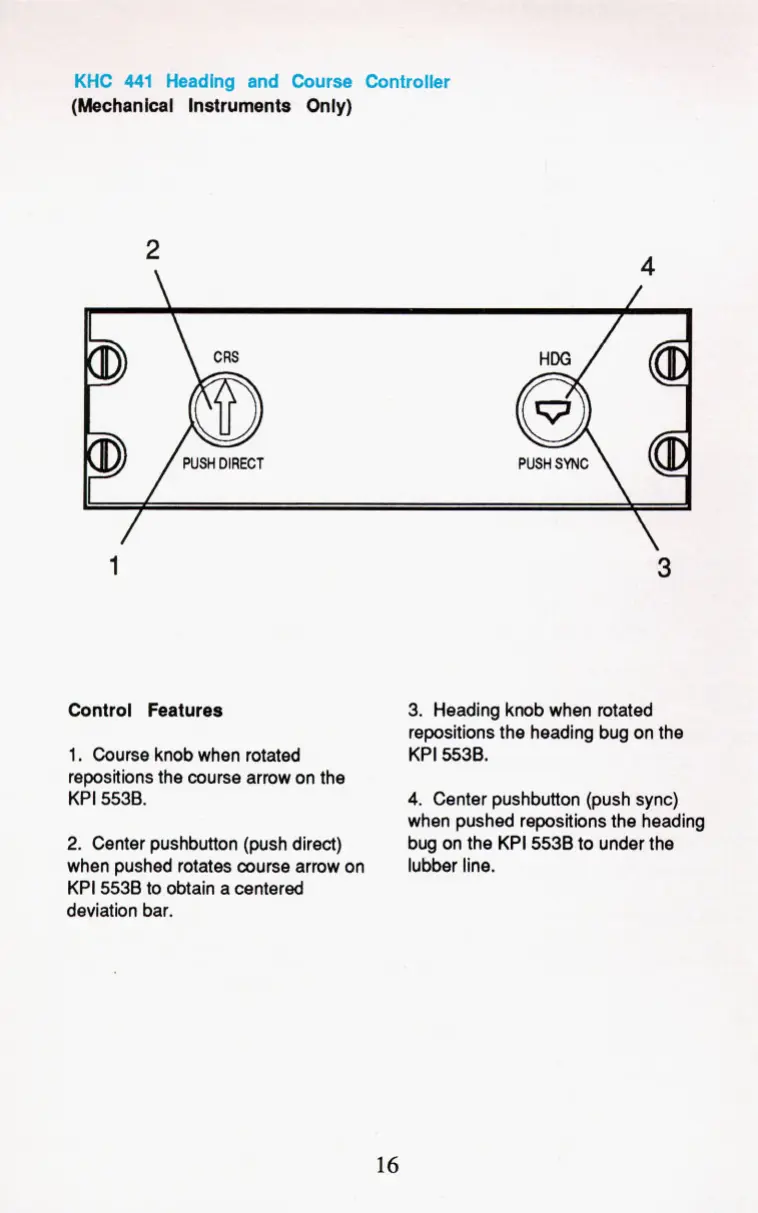

KHC 441 Heading and Course Controller
(Mechanical Instruments Only)
2
\
4
\ /
1
3
Control Features 3. Heading knob when rotated
1. Course knob when rotated
repositions the course arrow on the
KPI
5538.
2. Center pushbutton (push direct)
when pushed rotates course arrow
on
KPI 5538 to obtain a centered
deviation bar.
repositions the heading bug on the
KPI
5538.
4. Center pushbutton (push sync)
when pushed repositions the heading
bug on the KPI
5538 to under the
lubber line.
16
