Bendix/King KFC 400 - KAV 485 Altitudenertical Speed Indicator

7. SR (soft ride) is displayed in green
whenever
soft ride mode is engaged.
8. VS (engaged vertical mode) the
current vertical mode is displayed in
green. Flashing indicates the same
as on the the KMS
446 (see KMS 446
page 10). Possible annunciations in
this position are: MACH, VNAV, ALT,
ALTC (Altitude Capture), CLB,
DES,
IAS, VS, GS.
9. ALT (armed vertical mode) the
current armed vertical mode is dis-
played
in white. When the mode goes
from arm to coupled, the annunciation
moves up to the engaged vertical
mode position and changes
to green.
Possible annunciations are: VNAV,
ALT,
GS.
See the EFS 10 Pilot’s Guide for
information on displays and use of the
EFS
10 Electronic Flight Instrument
System.

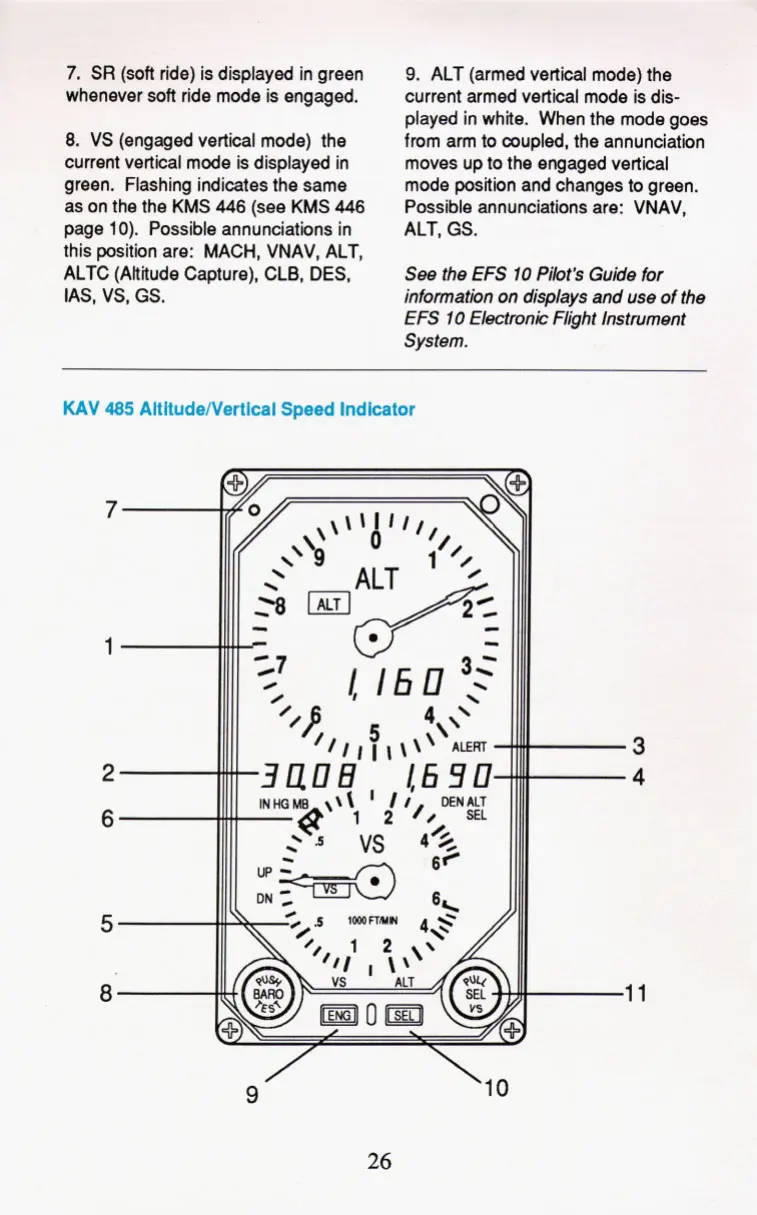

KAV 485 AltitudeNertical Speed indicator
7
1
2
6
5
a
26
