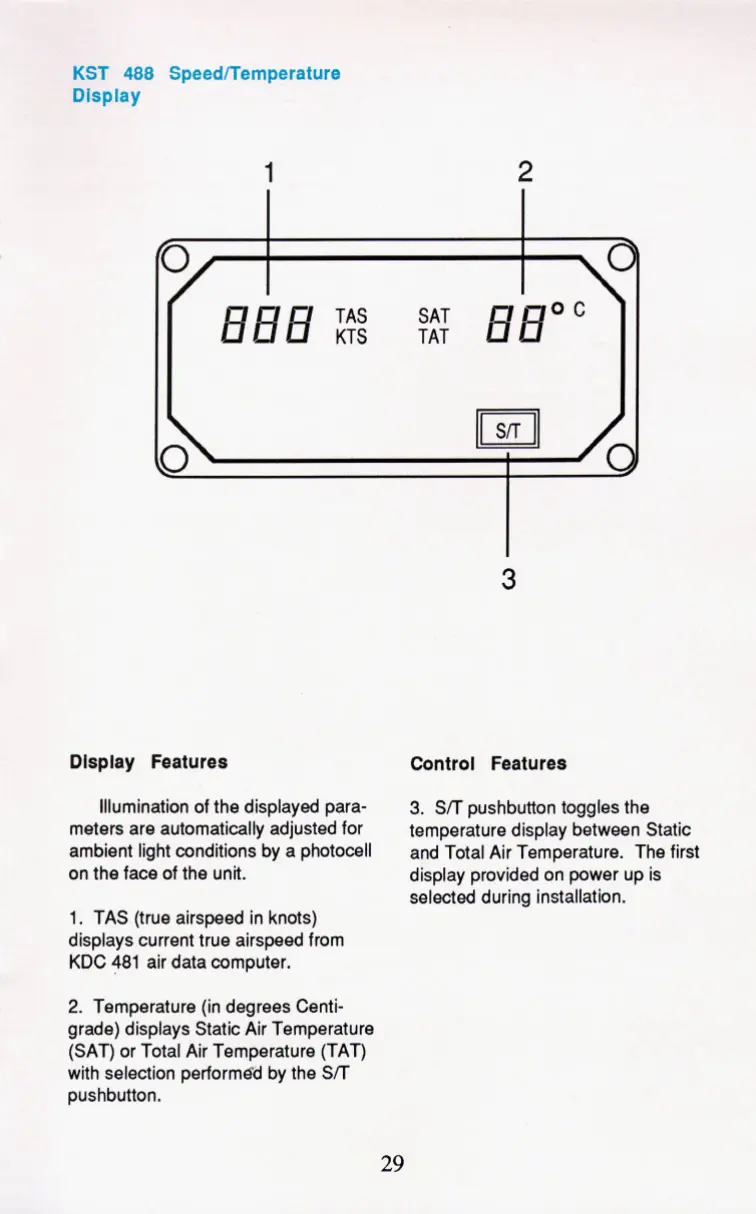

KST 488 Speed/Temperature
Display
1
2
3
Display Features Control Features
Illumination of the displayed para-
meters are automatically adjusted for
ambient light conditions by a photocell
on the face of the unit.
1. TAS (true airspeed in knots)
displays current true airspeed from
KDC 481 air data computer.
3. SIT pushbutton toggles the
temperature display between Static
and Total Air Temperature. The first
display provided on power up is
selected during installation.
2. Temperature (in degrees Centi-
grade) displays Static Air Temperature
(SAT) or Total Air Temperature (TAT)
with selection petformgd by the
S/T
pushbutton.
