Mounting Requirements
Mounting Requirements
Overview
The installation of the Bendix
™
VORAD
®
VS-400 System is intended to cover a wide range of commercial vehicle applications. This
publication is intended to be a reference for commercial vehicle installations using the vehicle’s SAE J1939 data link interface. For vehicles
without a SAE J1939 data link, some installation procedures may vary for a proper system installation and operation.

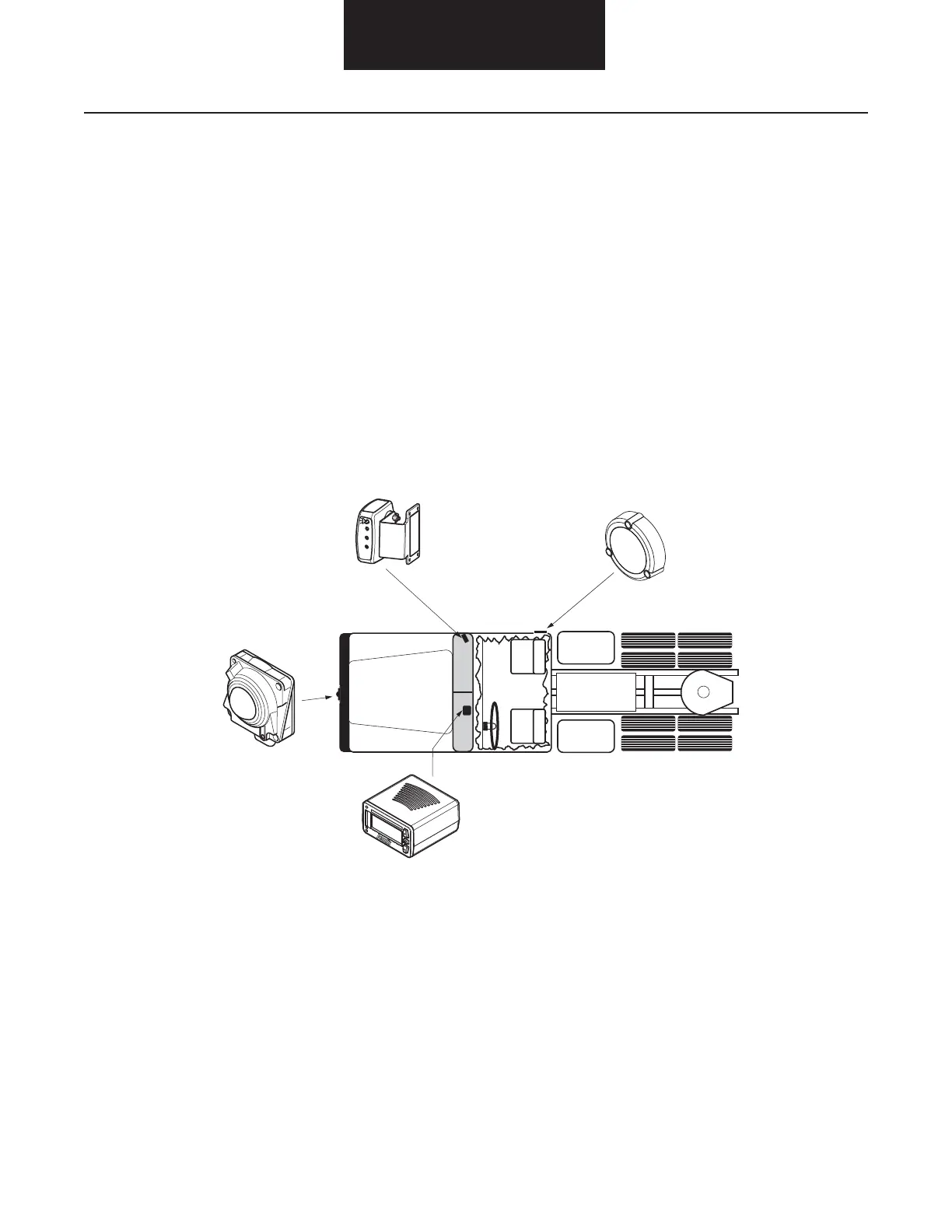

Typical Component Locations
Note: Not all components are required for every application.
Forward Looking
Radar (FLR)
Driver Interface
Unit (DIU)
Side Sensor
(SS)
Side Sensor
Display (SSD)
