34

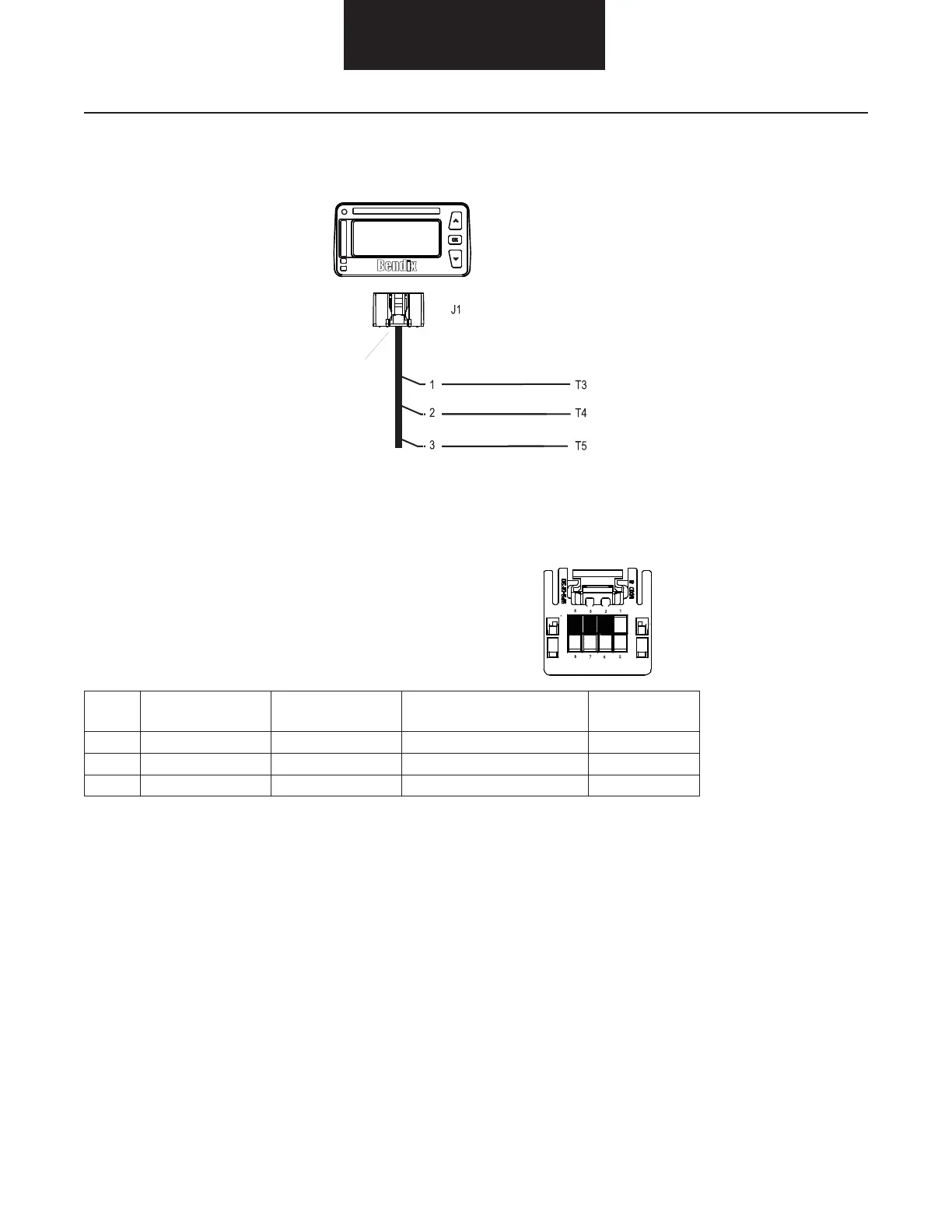

Electrical Requirements
Optional I/O
WIRE SOFTWARE
PIN # DESCRIPTION FUNCTION INPUT / OUTPUT REQUIRED
1 R-SPK Right Speaker Output - 4 ohm 1 watt Yes
2 L-SPK Left Speaker Output - 4 ohm 1 watt Yes
3 Blackout Blackout_Input Input - Tri-state Yes
Driver Interface Unit
FRONT VIEW
DIU (8-pin Connnector)
DIU
8-pin Connector
