30
Electrical Requirements
Electrical Requirements - Driver Interface Unit (DIU)
Power Requirements
• Operating Voltage: +9-32Vdc
• Power Current: Not to exceed 2 amps
• Recommended Fuse: 4 amp

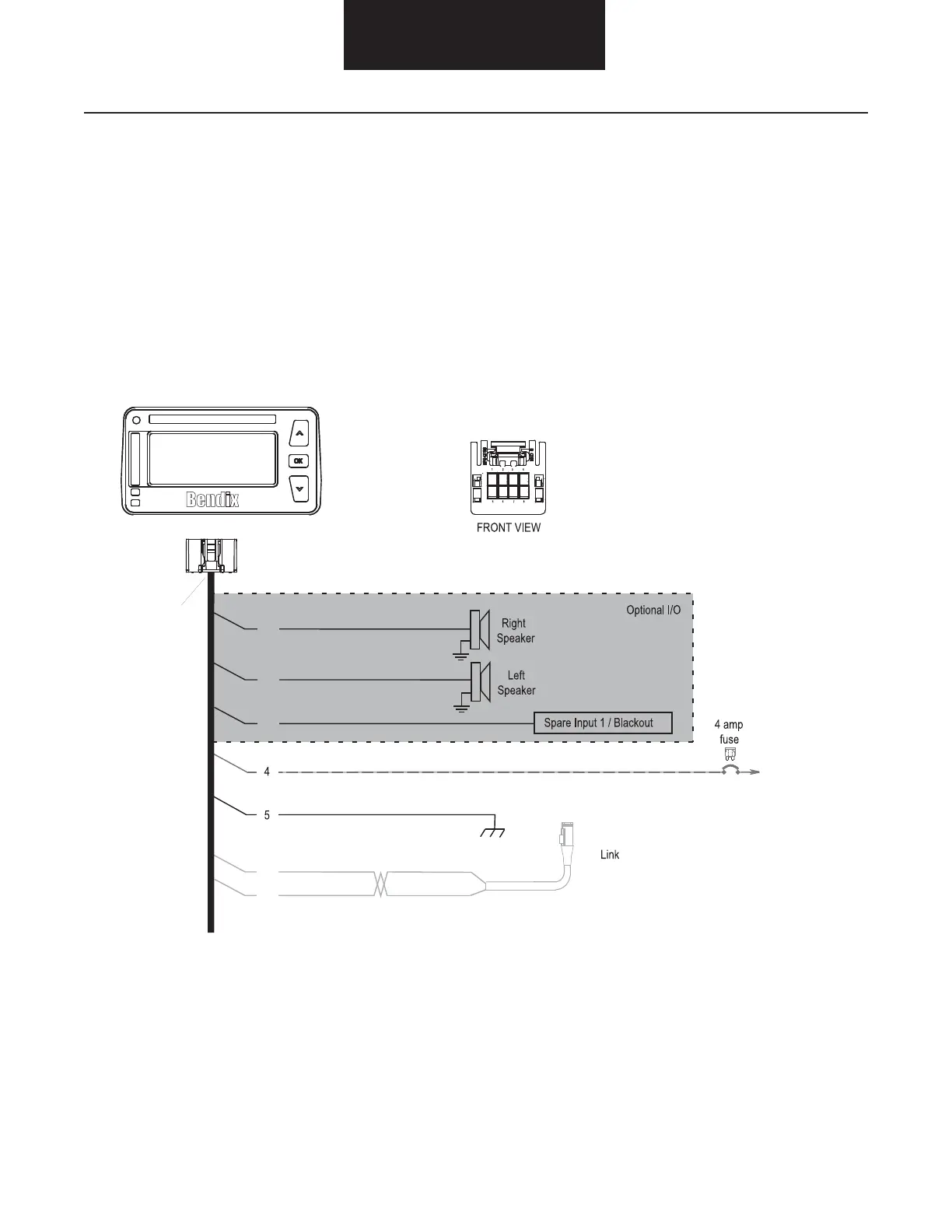

Wiring Schematics
Driver Interface Unit
J1
Mating Connector:
Connector Body:
Terminal:
Terminal (18/20 AWG):
Molex
30700-1081
Amp / Tyco
1393366-1
DIU
8-pin Connector
J3
T3
DIU 8-pin Connnector
6
7
J1939 Data
3
2
1
