32

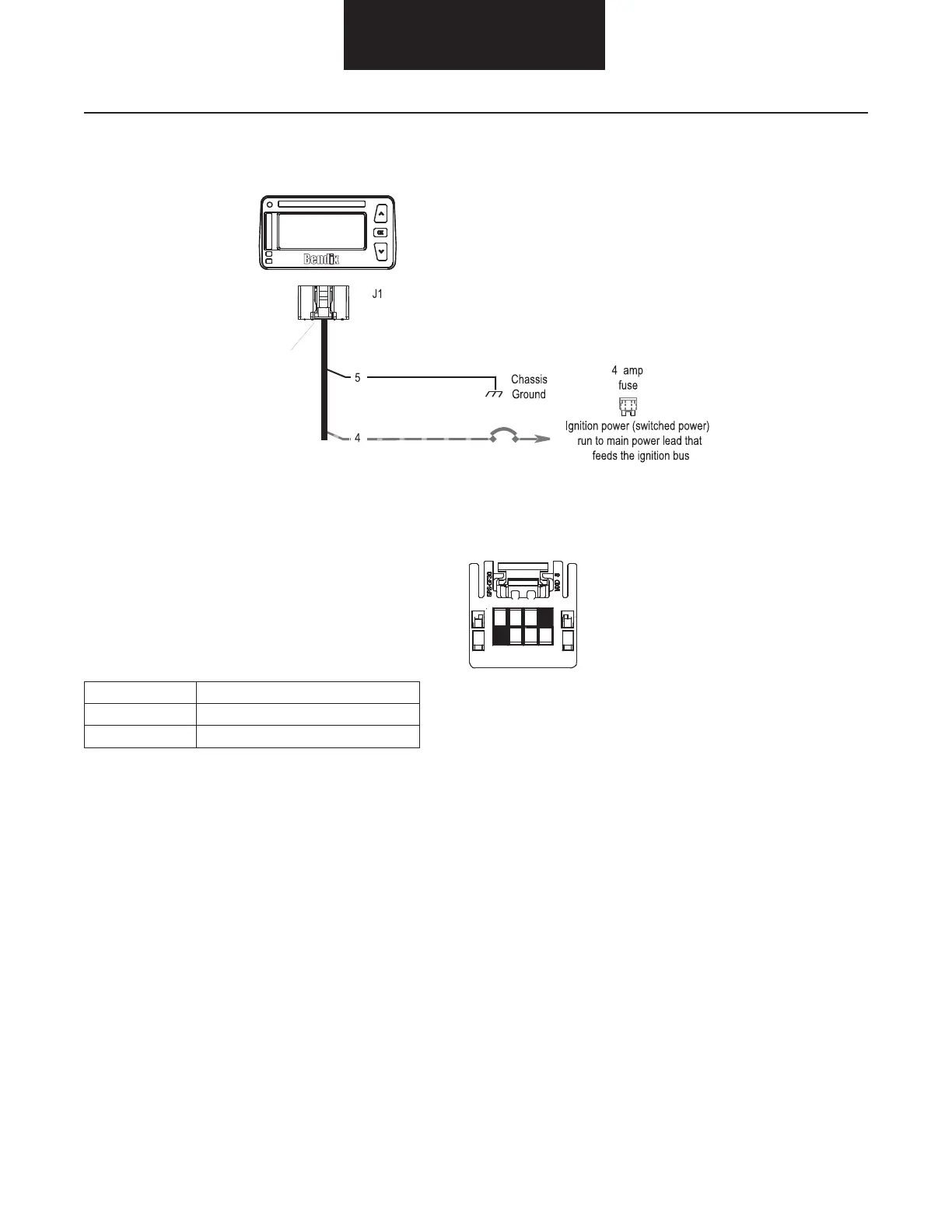

Electrical Requirements
Ignition and Ground
Pin # Description
J1-4 +9-32VDC Switched
J1-5 Chassis Ground
Driver Interface Unit
FRONT VIEW
DIU (8-pin Connnector)
DIU
8-pin Connector
1
2
3
4
5
6
78
