Electrical Requirements

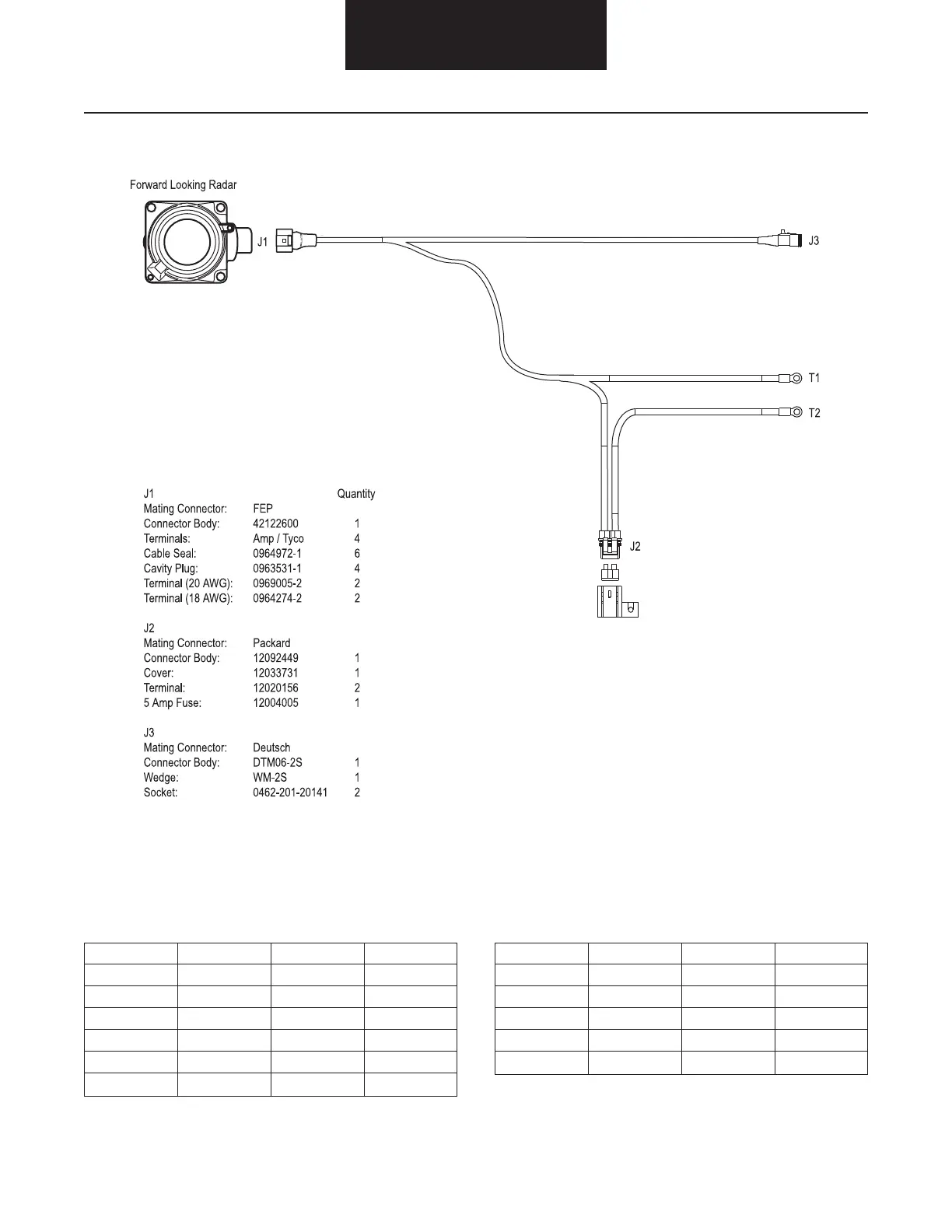

Wiring Harness

Notes:

All wires to be cross link TXL or equivalent unless otherwise speciﬁ ed.

Use approved J1939 cable.

Interconnection Table

From To Code Gauge

J1-1 Plug – –

J1-2 Plug – –

J1-3 Plug – –

J1-4 J3-A Yellow 20 AWG

J1-5 J3-B Green 20 AWG

J1-6 Plug – –

From To Code Gauge

J1-7 Plug – –

J1-8 Plug – –

J1-9 T1 Ground 18 AWG

J1-10 J2-A IGN1 18 AWG

J2-B T2 Ignition 18 AWG
