BENDIX VORAD VS-400 Installation Guide

24
Electrical Requirements
Electrical Requirements - Forward Looking Radar (FLR)
Power Requirements
• Operating Voltage: +9-16Vdc
• Power Current: < 2 amps (average 1 amp)
• Recommended Fuse: 5 amp delayed fuse

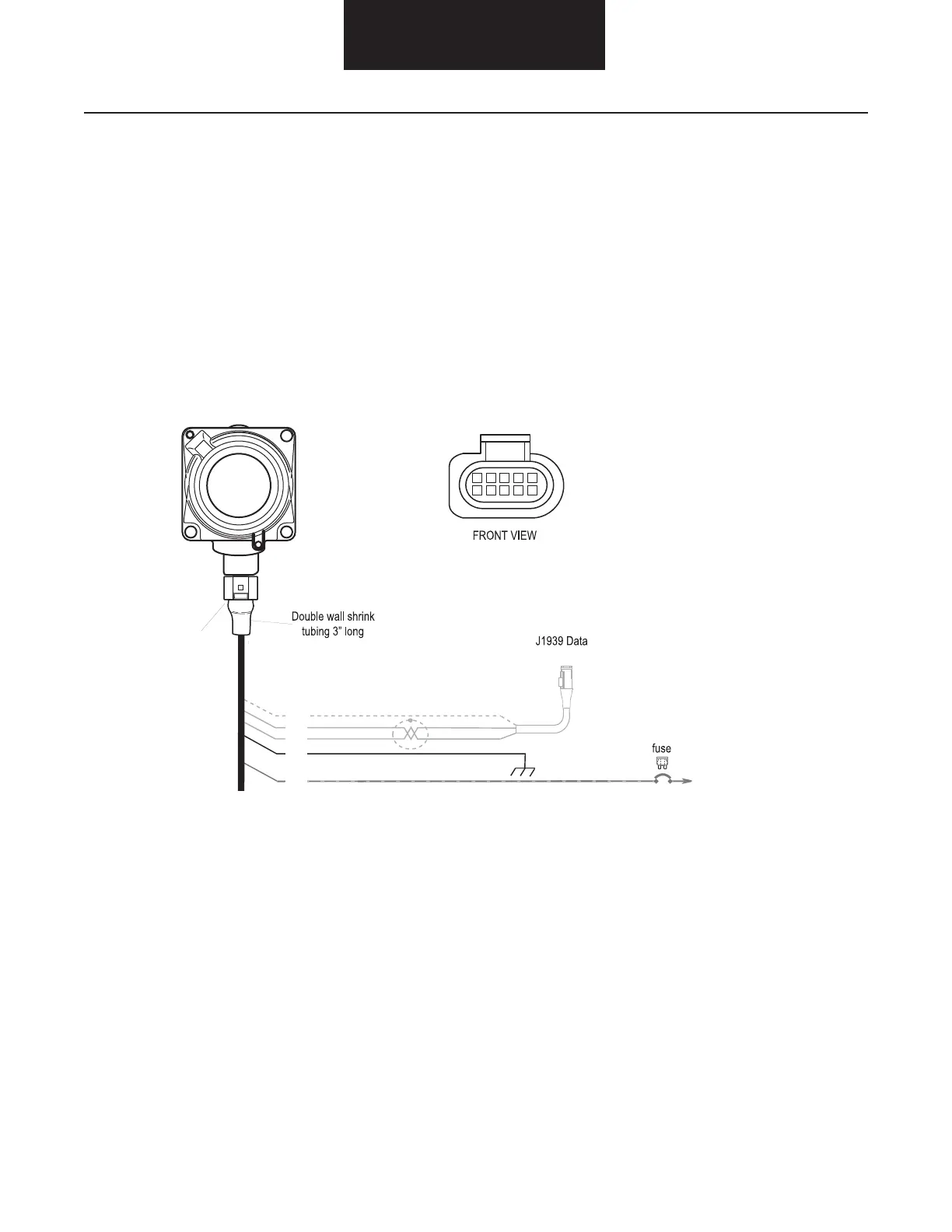

Wiring Schematic
All electrical connections can be made in the engine compartment.
Front Looking Radar
J1
Mating Connector:
Connector Body:
Terminals:
Cable Seal:
Cavity Plug:
Terminal (20 AWG):
Terminal (18 AWG):
FEP
42122600
Amp / Tyco
0964972-1
0963531-1
0969005-2
0964274-2
FLR
10-pin Connector
J1
Link
5 amp
T2
T1
10
9
5
4
3
FLR 10-pin Connnector
J1
