BENDIX VORAD VS-400 Installation Guide

31
Electrical Requirements

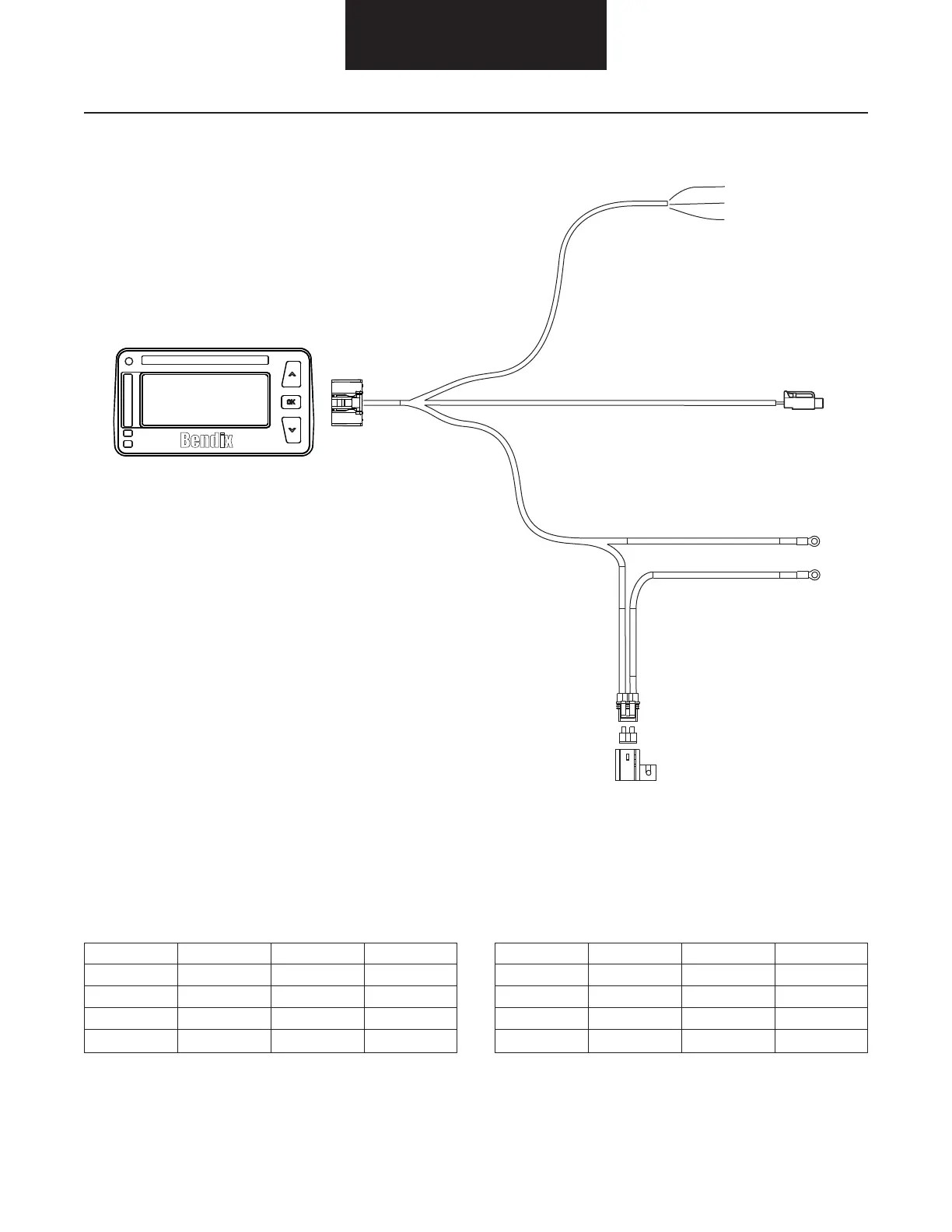

Wiring Harness
Notes:
All wires to be cross link GXL or equivalent unless otherwise specifi ed.
Use approved J1939 cable.
Interconnection Table
From To Code Gauge
J1-7 J3-A Yellow 20 AWG
J1-6 J3-B Green 20 AWG
J1-5 T1 Ground 18 AWG
J1-4 J2-A IGN1 18 AWG
From To Code Gauge
J2-B T2 Ignition 18 AWG
J1-1 T3 R-SPK 20 AWG
J1-2 T4 L-SPK 20 AWG
J1-3 T5 Blackout 20 AWG
Quantity
1
4
4
1
1
2
1
1
1
2
J1
Mating Connector:
Connector Body:
Terminal:
Terminal (18/20 AWG):
J2
Mating Connector:
Connector Body:
Cover:
Terminal:
4 Amp Fuse:
J3
Mating Connector:
Connector Body:
Wedge:
Socket:
Molex
30700-1081
Amp / Tyco
1393366-1
Packard
12092449
12033731
12020156
12004004
Deutsch
DTM06-2S
WM-2S
0462-201-20141
T1
J3
T2
J2
J1
T3
T4
T5
