Electrical Requirements
Electrical Requirements - Side Object Detection (SOD)
The Side Object Detection (SOD) system consists of two components: a Side Sensor (SS) and a Side Sensor Display (SSD).
Power Requirements
• Operating Voltage: +9-32Vdc
• Power Current: Not to exceed 0.25 amps
• Recommended Fuse: 1 amp

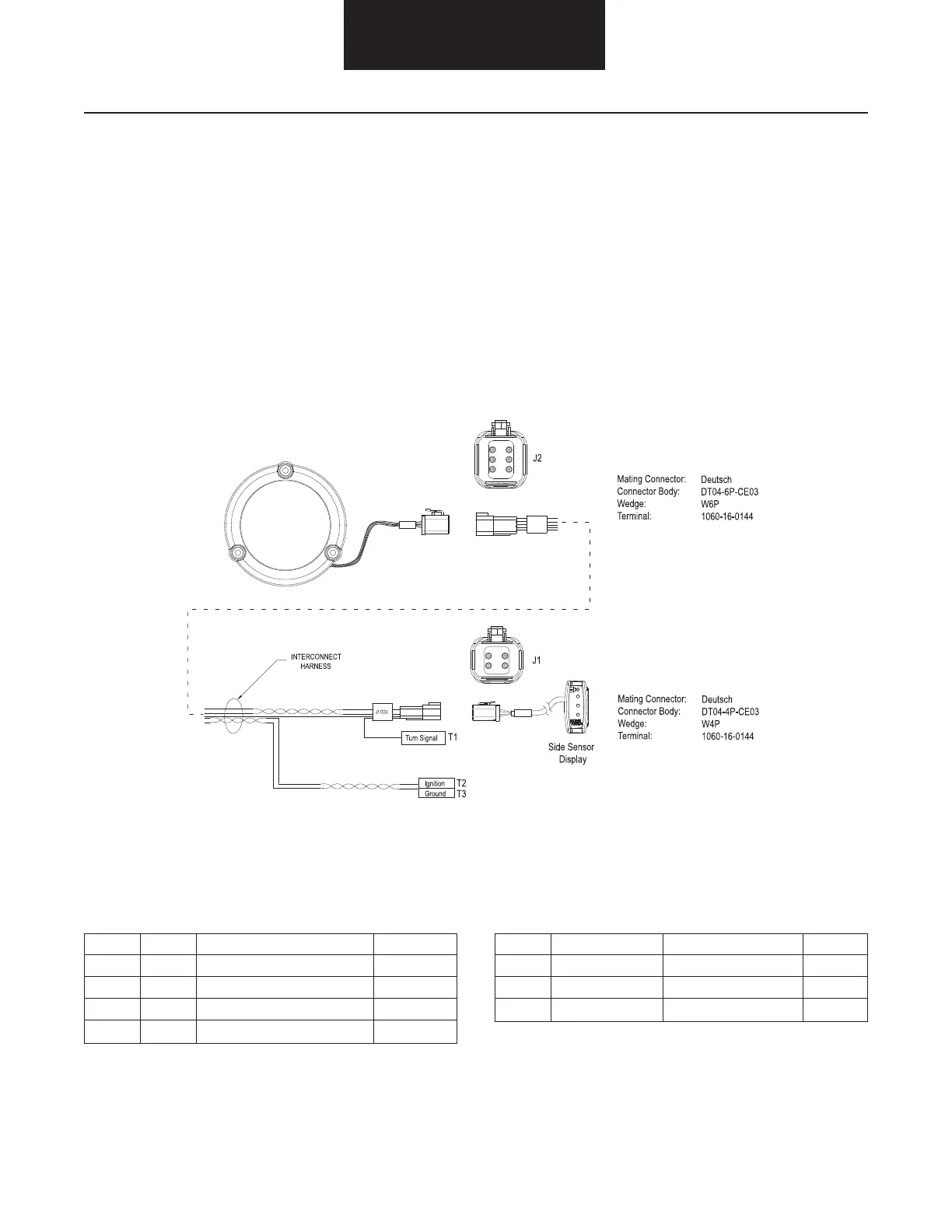

Wiring Schematics
Notes:
All wires to be cross link GXL or equivalent unless otherwise specifi ed.
Use approved J1939 cable.
Interconnection Table
From To Code Gauge
J2-1 T2 Ignition 18 AWG
J2-2 T3 Chassis Ground 18 AWG
J2-3 J1-3 Communication 18 AWG
J2-4 J1-1 Power 18 AWG
From To Code Gauge
J2-5 J1-2 Signal Ground 18 AWG
J2-6 No Connection – 18 AWG
J1-4 T1 Right Turn Signal* 18 AWG
** For this example, the right turn signal is used, however, the left turn signal could also be used for a Side Sensor installed on the driver
side of the vehicle.
1
2
3
4
5
6
Side Sensor
Connector Rear
P2 SOD
ODU P1
1
2
3
4
Connector Rear
To Next Page
