10

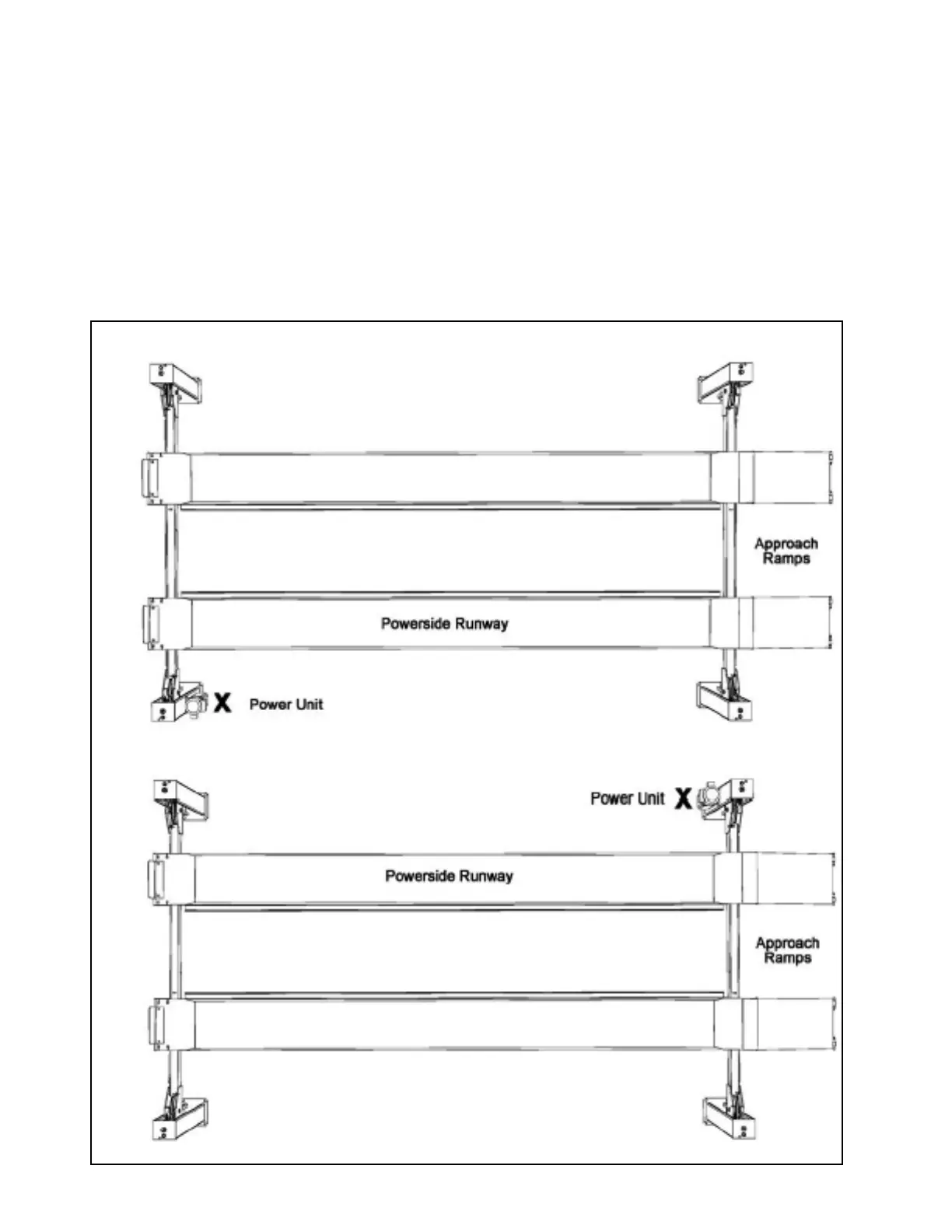

The Power Unit can be located at either “X”
location shown below. It is important to locate
the POWERSIDE runway (with cylinder) on the
SAME SIDE as the Power Unit location. Each
Runway MUST be installed with the Utility Rails
to the inside.
For the remainder of this instruction we will
illustrate the Power Unit mounted at the
DRIVER-SIDE (LEFT) FRONT column - TOP
ILLUSTRATION. For Power Unit at right rear,
rotate lift 180° leaving approach Ramps and
Front Tire Stops in original position.
IMPORTANT NOTE !
POWER UNIT LOCATION
