MODEL HD-14SS HD-14 HD-14X HD-14TL
Lifting Capacity
14,000lbs / 6350 Kg. 14,000 /6350 Kg. 14,000 Lbs. / 6350 Kg.
14,000lbs / 6350 Kg.
Max Capacity Front Axle
7,000 lbs. / 3175 Kg. 7,000 lbs. / 3175 Kg. 7,000 lbs. / 3175 Kg.
7,000 lbs. / 3175 Kg.
Max Capacity Rear Axle
7,000 lbs. / 3175 Kg. 7,000 lbs. / 3175 Kg. 7,000 lbs. / 3175 Kg.
7,000 lbs. / 3175 Kg.
A - Overall Width
126”/ 3200 mm 126”/ 3200 mm 126”/ 3200 mm
126”/ 3200 mm
B- Outside Length
181” / 4597 mm 205” / 5207 mm 243” / 6172 mm
205” / 5207 mm
C- Overall Length
211” / 5360 mm 235” / 5969 mm 273” / 6934 mm
235” / 5969 mm
D- Height of Columns
88” / 2235 mm 88” / 2235 mm 88” / 2235 mm
100” / 2540mm
E- Min Runway Height
7.5”/ 190 mm 7.5” / 190mm 7.5” / 190 mm
7.5”/ 190 mm
F- Max. Rise
70” / 1778 mm 70” / 1778 mm 70” / 1778 mm
82” / 2083 mm
G- Max Lifting Height
77.5” / 1968 mm 77.5” / 1968 mm 77.5” / 1968 mm
89.5” / 2273 mm
H- Width Between Columns
116” / 2946 mm 116” / 2946 mm 116” / 2946 mm
116” / 2946 mm
I- Runway Width
20” / 508 mm 20” / 508 mm 20” / 508 mm
20” / 508 mm
J - Width Between
Runways(*)
37 - 49”
940 mm - 1245mm
37” - 49”
940 mm - 1245mm
37” - 49”
940 mm - 1245mm
37 - 49”
940 mm - 1245mm
K- Length of Runways
174” / 4420 mm 198” / 5029 mm 236” 5994 mm
198” / 5029 mm
Min. Wheelbase @ Rated Capacity 125” / 3175 mm 140” / 3556 mm 170” / 4318 mm
140” / 3556 mm
Min. Wheelbase @ 75%Rated Capacity 105” / 2667 mm 120” / 3048 mm 145” / 3683 mm
120” / 3048 mm
Min. Wheelbase @ 50%Rated Capacity 90” / 2286 mm 100” / 2540 mm 120” / 3048 mm
100” /2540 mm
Min. Wheelbase @ 25%Rated Capacity 70” / 1778 mm 80” / 2032 mm 95” / 2413 mm
80” / 2032 mm
Locking Positions
13 13 13
17
Lock Spacing
Every 4” / 102 mm Every 4” / 102 mm Every 4” / 102 mm
Every 4” / 102 mm
Lifting Time
60 Seconds 60 Seconds 60 Seconds
60 Seconds
Standard Motor(**)
220 VAC / 60Hz 1 Ph. 220 VAC / 60Hz 1 Ph. 220 VAC / 60Hz 1 Ph.
220 VAC / 60Hz 1 Ph.
* This dimension may be limited with the addition of rolling jacks. See Rolling Jack Specifi cations on Separate page.
** Special Voltages Available upon Request.
The design, material and specifi cations are subject to change without notice.

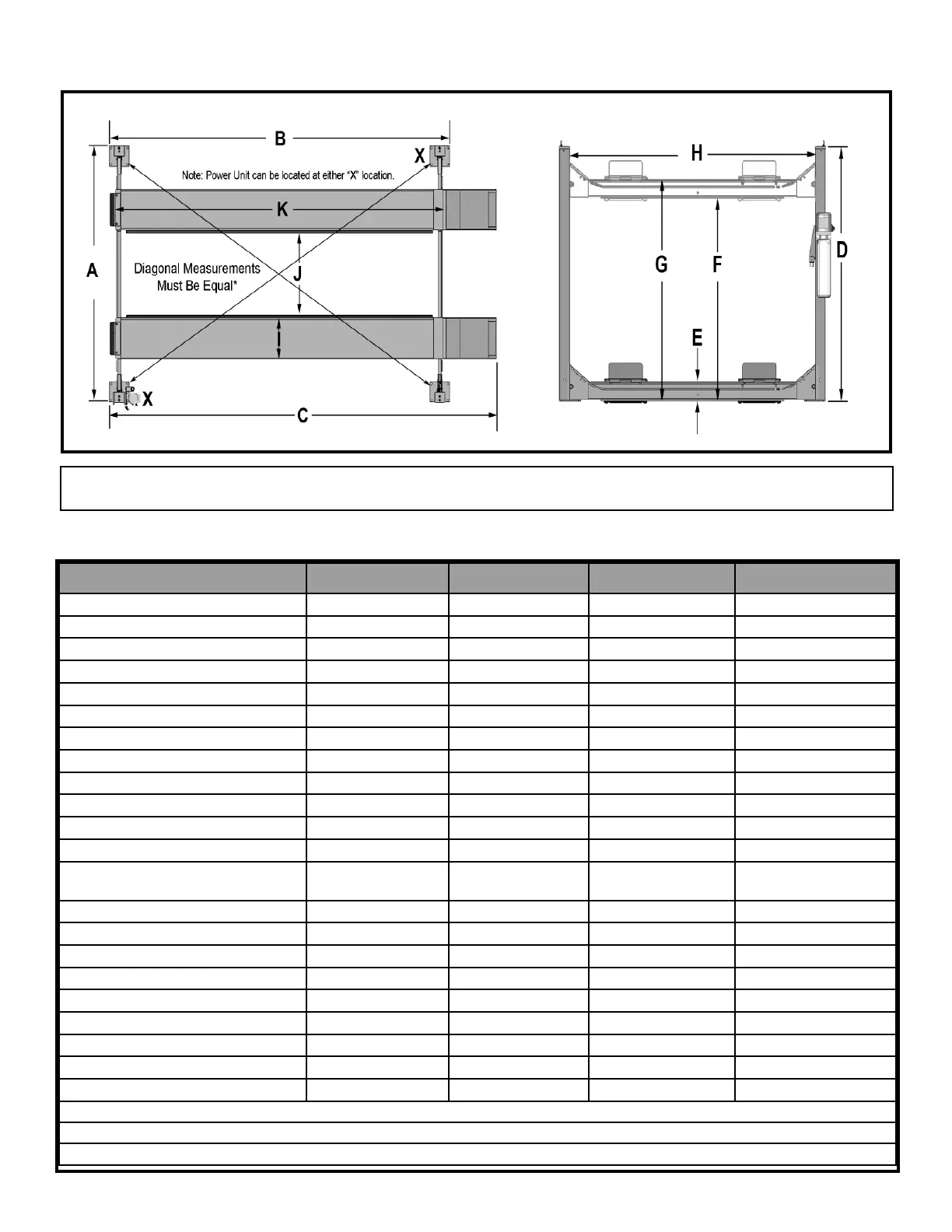

FLOOR PLAN
*IMPORTANT NOTE*
Check Diagonal Measurements To Ensure Square Layout Diagonal Measurements Must Be Equal.
