HD-14T Four Post Lift 22 P/N 5900037 — Rev. F — February 2022
Installing the Crosstubes
Your Lift has two Crosstubes:
• Crosstube with Large Windows: Goes on the end of the Lift opposite of the Power Post, with
the Windows facing to the inside of the Lift. 5215595.
• Crosstube with Small Windows: Adjacent to the Power Post, with the Windows facing to the
inside of Lift. 5215596.
Important: It is possible to install the Crosstubes
incorrectly
in several different ways. Take your
time now and get it right the first time.

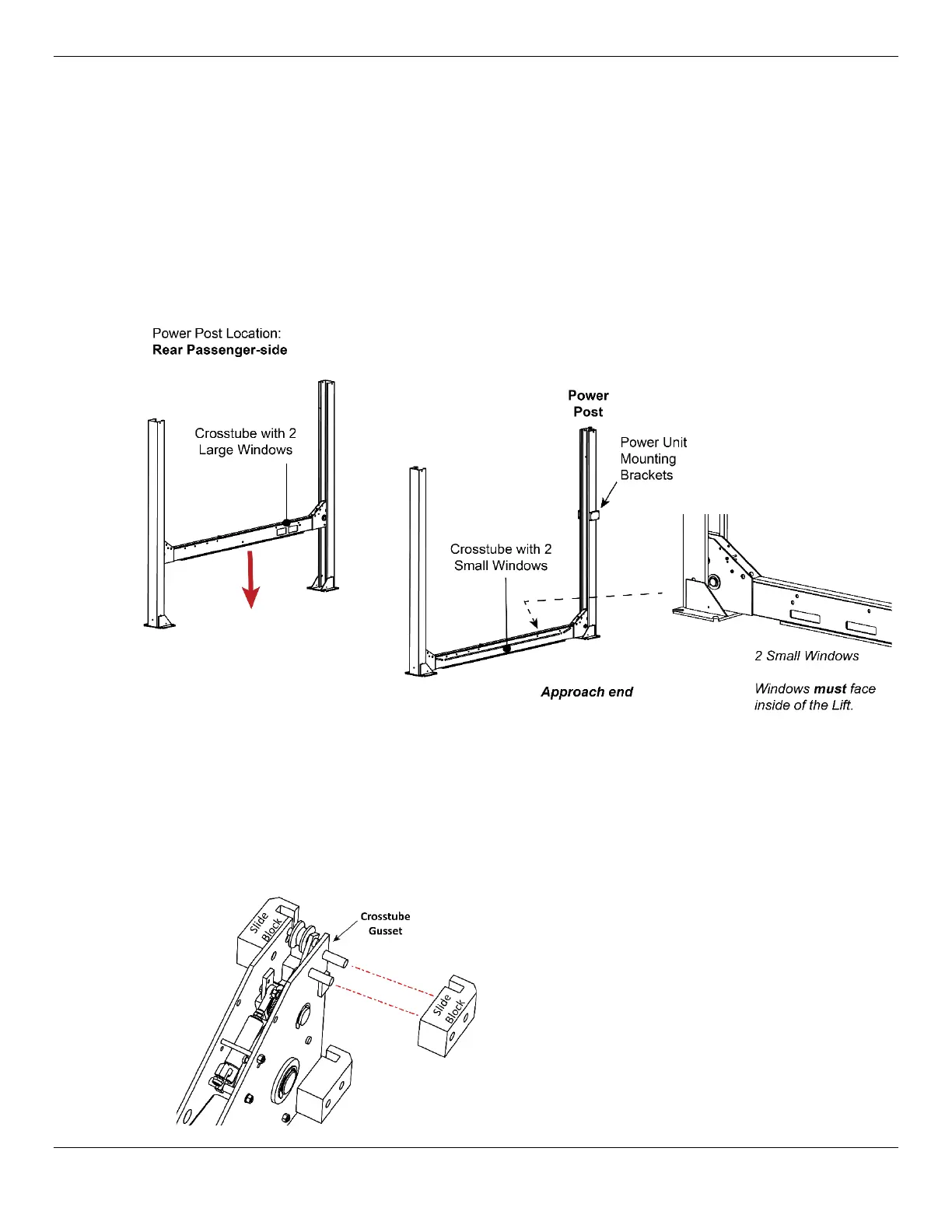

The following drawing shows the correct locations for the Crosstubes.
To install the Crosstubes:
1. Orient the Crosstubes in their required locations.
2. Put the black Slide Blocks (5716005) into place on the outside ends of each Gusset, four Slide
Blocks per each Crosstube Gusset.
Align the holes in the Slide Blocks with the rods on the side of the Gusset, then press the Slide
Blocks in. Make sure the Slide Blocks are oriented so that they create a Slot when pushed in.
Top View. Drawing shows how to properly
install two install Slide Blocks onto the
Crosstube Gusset.
Not all components are shown.
