Installing the Ladders and Top Cap
Each Post has a Ladder; each Ladder gets installed on the inside back of a Post. Ladders are secured
at the top and the bottom.
Make sure to install each Ladder through
both slots on each Crosstube Gusset.
Note: It is much easier to secure the bottom of the Ladders once the Crosstubes have been
raised, so that portion of installing the Ladders is described in Securing the Ladders.
⚠ WARNING Make sure to install the Ladders correctly. If they are not installed correctly, the
Safety Locks on your Lift may not hold the weight of a Vehicle, putting anyone
under the Lift in danger.

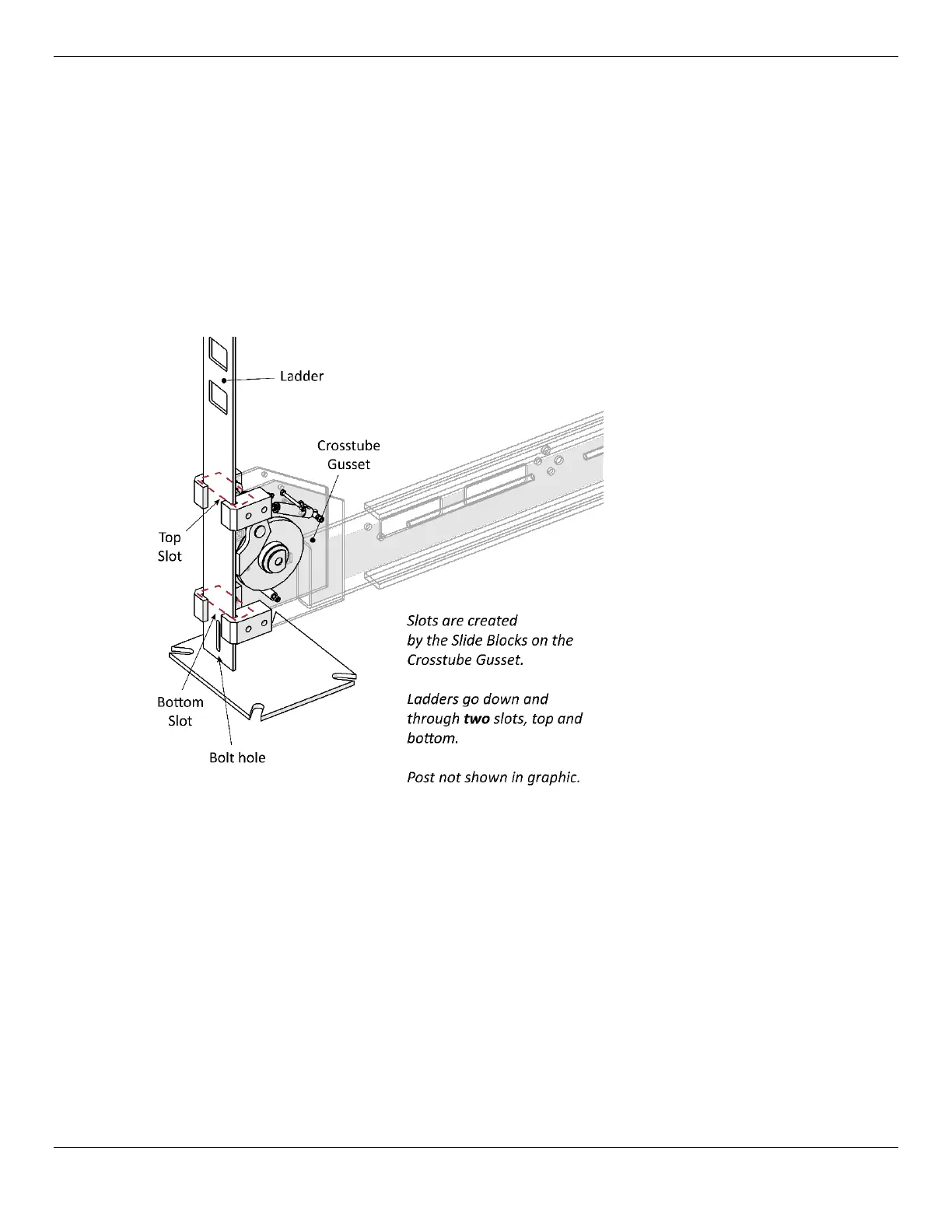

Drawing shows how to route
the Ladders through both
Slots created by the Slide
Blocks.
Not all components shown.
Post not shown for clarity.
To install the Ladders and the Top Caps:
1. Take a Ladder (5600916) and slide it down the back of the Post, with the Bolt Hole end at the
bottom, as shown in the graphic above.
Make sure the Ladder goes through both Slots on each Gusset .
⚠ WARNING It is easy to see the top Slot created by the Slide Blocks. It is difficult to see the
bottom Slot, but it is
required that the Ladder goes through both Slots.
2. Install the remaining three Ladders the same way.
