3.
Moving to the top of the Ladders
, put the M20 Nut on the Threaded Bolt at the top; move
the M20 Nut down half an inch from the top of the Post.

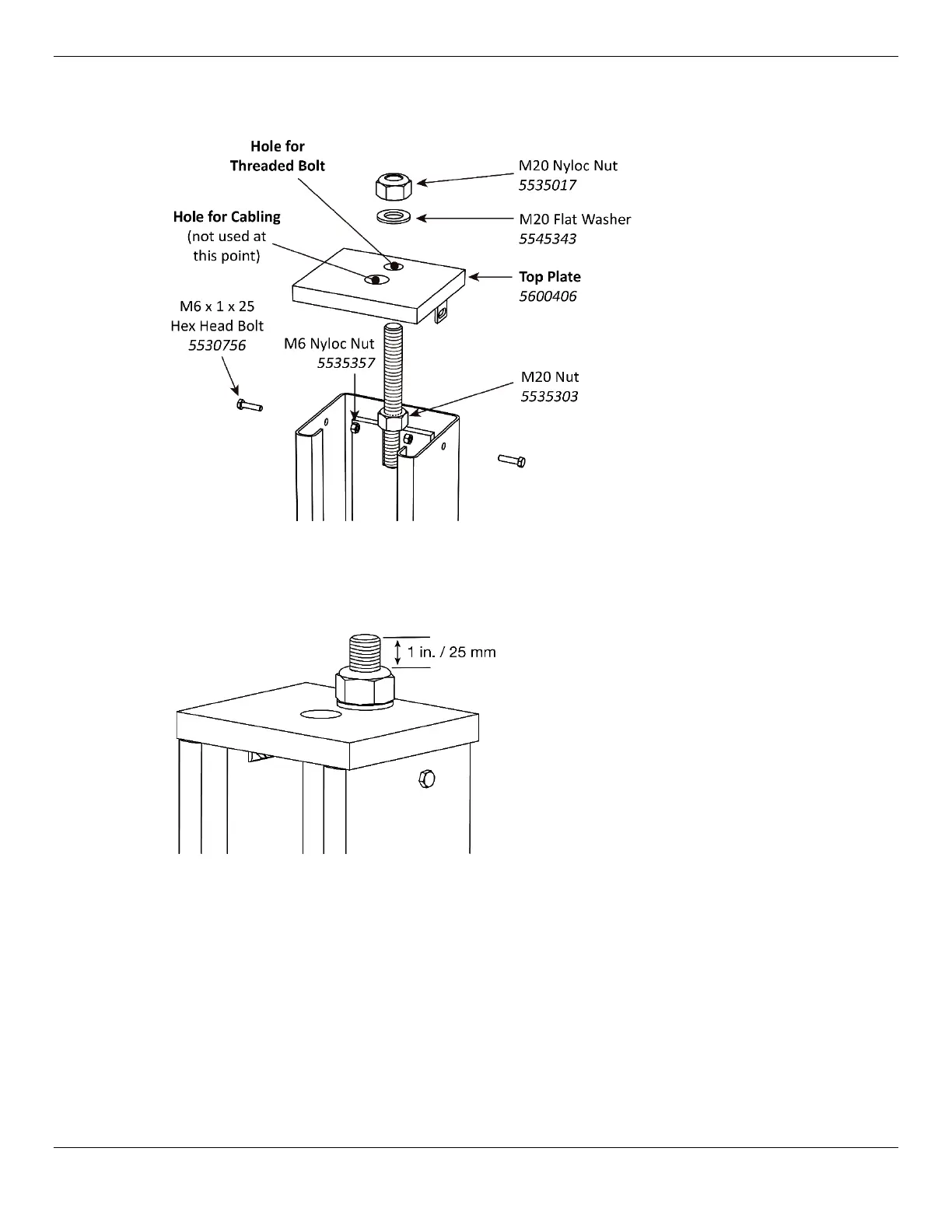

Drawing shows connections
to make to the Top Cap, near
the top of the Posts.
Not all components shown.
4. Put the Top Caps in place and secure the sides with two M6 Hex Bolts (5530756). D
5. Attach a M20 Nyloc Nut on each Safety Ladder until 1 in / 25 mm of thread is above the top of
the Top Nut.
Drawing shows the threads to
leave out above the Top Nut.
Adjust as needed.
Not all components shown.
Important: Do not securely tighten the Top Nut at the top of the Top Cap at this point; they can
be securely tightened after you do the final leveling to the Lift.
6. Install the remaining Top Caps the same way.
