HD-14T Four Post Lift 32 P/N 5900037 — Rev. F — February 2022
If the Cylinder does not move, stop using air pressure; instead, use a pulling device (such as a
Come Along Tool) to extend the Piston and Retainer Plate; be care not to damage the Piston.
8. Disconnect the Air Pressure source and reinstall the Shipping Plug.

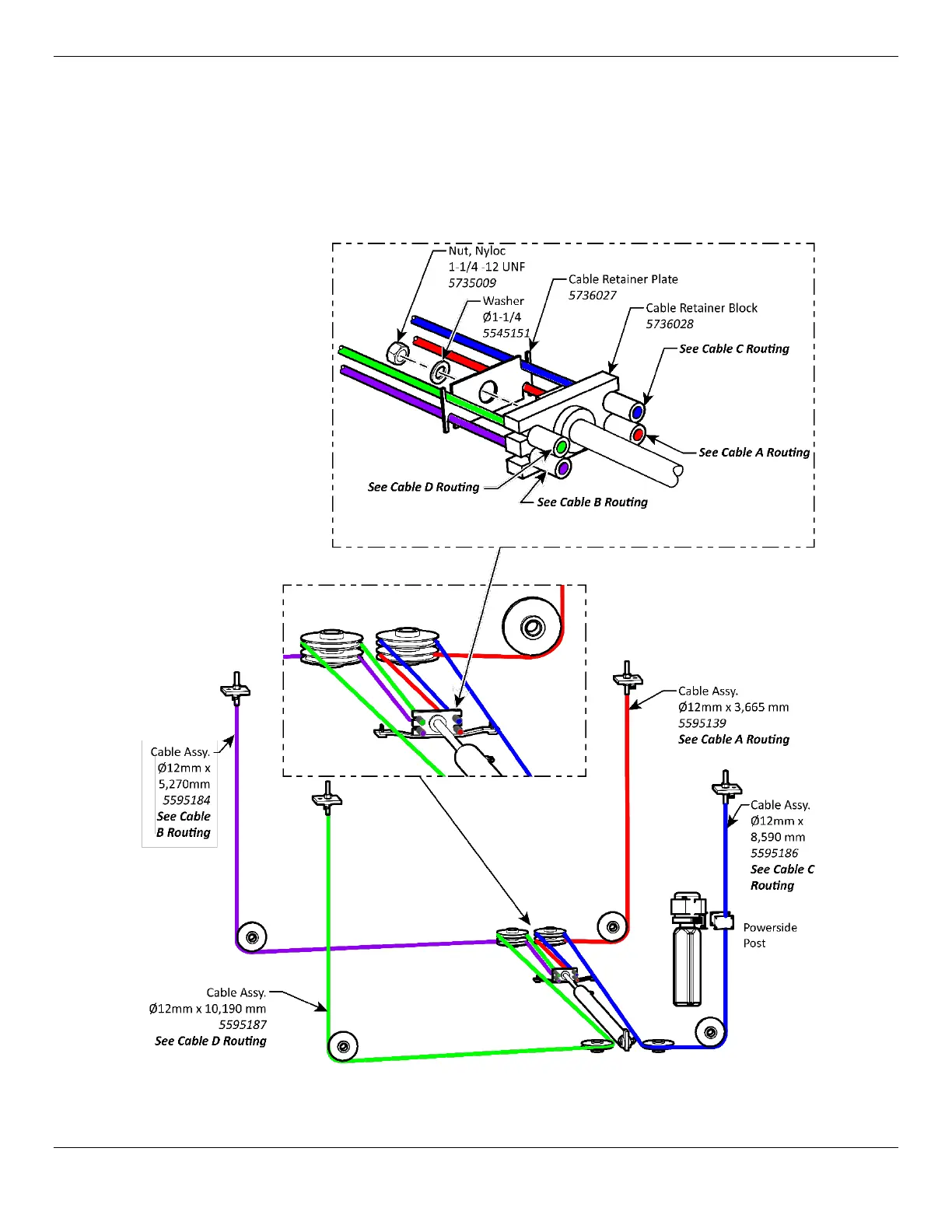

Routing the Lifting Cables
Refer figure below and follow the routing procedures on the following pages.
Not to scale, components removed for clarity.
To Next Page
