Installing the Hydraulic Hose
The Hydraulic System moves hydraulic force from the Power Unit to the Hydraulic Cylinders, which use
that force to raise and lower the Runways.
To install the Hydraulic Hose, you need the following components:
• The Hydraulic Hose. 5570025. The Hydraulic Hose has a Curved end and Straight end.
• JIC to NPT Hydraulic Elbow Fitting. 5550106. The JIC end goes to the Hydraulic Hose and
the NPT end goes to the Hydraulic Cylinder.
• JIC to ORB Hydraulic Elbow Fitting. 5550008. The JIC end connects to the Hydraulic Hose
and the ORB end connects to the Power Unit. Not connected at this point.

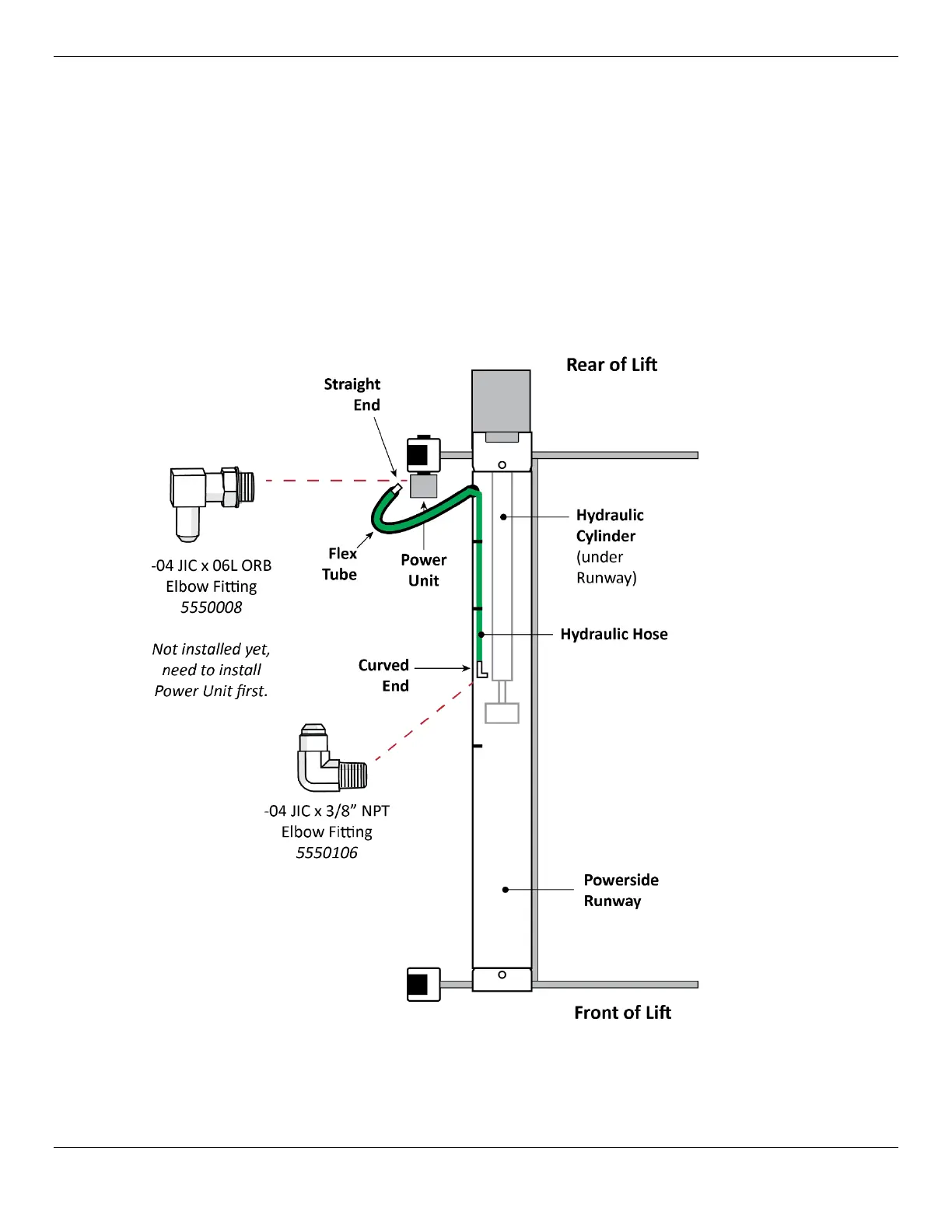

The following drawing shows the connections to make to the Hydraulic Hose.
Drawing shows a top view of the Powerside Runway. Not drawn to scale. Not all components shown.
