HD-14T Four Post Lift 40 P/N 5900037 — Rev. F — February 2022
To install the Hydraulic Hose:
1. Find the Hydraulic Hose and a Hydraulic Elbow Fitting (5550106).
2. Prepare the Hydraulic components using the information in Hydraulic Fluid Contamination.
3. On the Hydraulic Cylinder, remove the Shipping Plug from the Port at the Piston Rod end.
4. Attach the NPT end of the Elbow Fitting to the Port and tighten it.
Use Thread Sealant on NPT Threads only
.

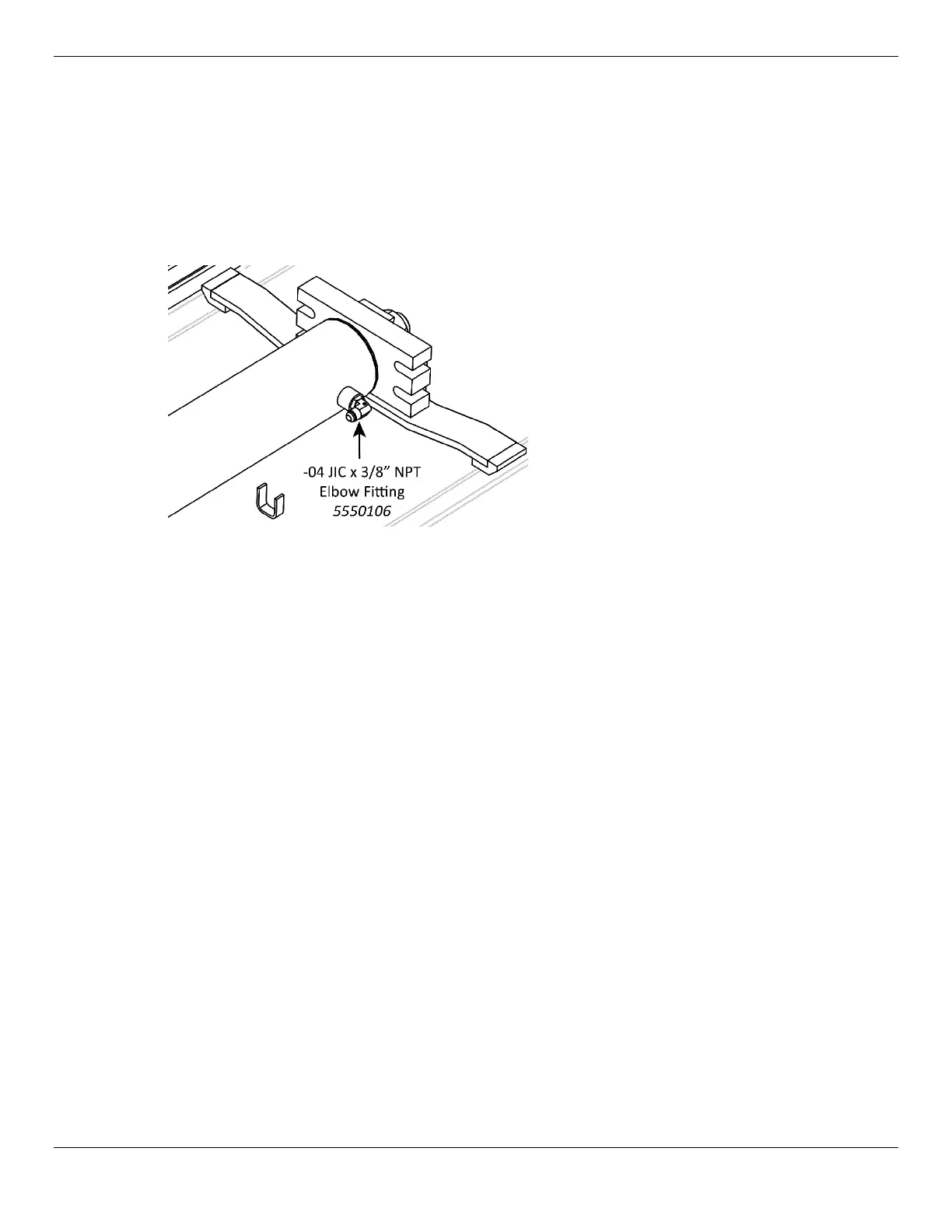

View is from underneath the Powerside Runway. Not all components are shown.
5. Attach the Straight end of the Hydraulic Hose to the JIC end and tighten it.
6. Take the Curved end of the Hydraulic Hose and, starting at the Hydraulic Cylinder, route the
Curved end through the Retaining Rings along the inside edge of the Runway and then through the
Flex Tube opening.
NOTICE Once completed, the Curved end should be coming out of the Flex Tube opening near
the Power Unit.
7. Leave the Curved end of the Hydraulic Hose coming out of the Flex Tube opening for now.
