Installing the Return Line
The Return Line takes excess Hydraulic Fluid coming out of the Hydraulic Cylinder and sends it back
into the Fluid Reservoir on the Power Unit.
To install the Return Line, you need the following components:
• The Return Line. 5570795. The Return Line is a single piece of ¼ inch, black, polyethylene
Tubing and Elbow Compression Fittings on each end. You need to cut off a piece of the supplied
Tubing of the right length to create the Return Line.
• (2X) COMP to NPT Hydraulic Elbow Fittings. 5550089. The COMP end connects the
Return Line and the NPT end connects to the Power Unit and the Hydraulic Cylinder.
Important: The Return Line uses the same ¼ inch, black, polyethylene Tubing as the Air Lines. Be
sure not to confuse the two; the Return Line and the Air Lines do completely different
things and
must
be kept separate from each other.

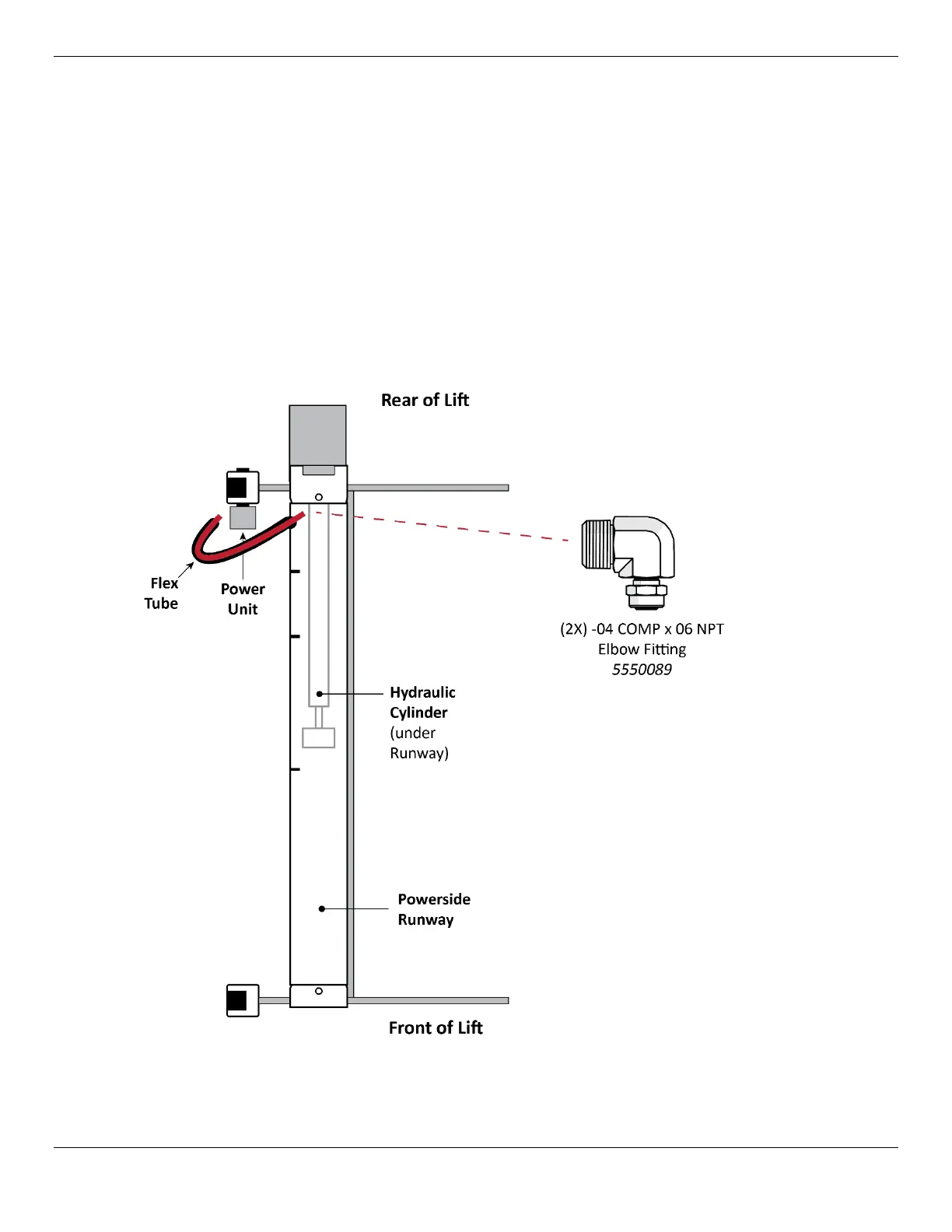

Drawing shows a top view of the Powerside Runway. Not drawn to scale. Not all components shown.
