To install the Return Line:
1. Measure the distance from the Return Line Port on the Hydraulic Cylinder to the Return Line Port
on the Power Unit.
2. Cut a piece of Tubing to the measured length from the roll of Tubing that comes with the Lift.
It is better to cut the Tubing a little too long rather than a little too short.
3. Route the Tubing from the Hydraulic Cylinder through the Flex Tube opening, and out next to
where the Power Unit will be installed.
4. Remove the Shipping Plug from the Return Line Port on the Hydraulic Cylinder, then connect and
tighten the Compression Elbow Fitting (5550089) into the Port where the Shipping Plug was.
Use Thread Sealant on NPT threads only.

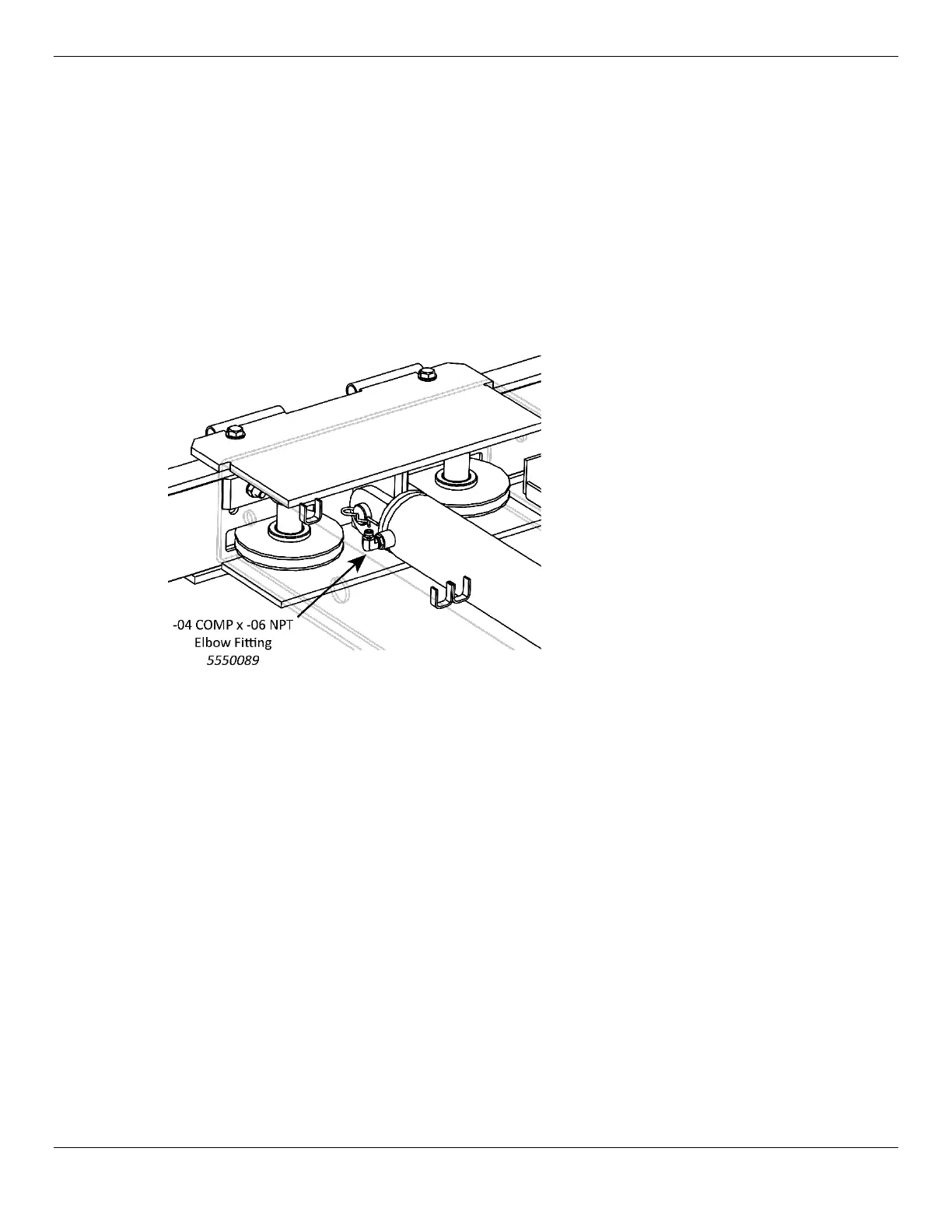

View is from underneath the Powerside Runway, near Cylinder end. Not all components shown.
5. Connect one end of the Return Line to the COMP end of the Fitting.
Refer to Working with Compression Fittings and Tubing for instructions.
6. Leave the Power Unit end of the Return Line hanging out of the Flex Tube opening for now.
