Installing the Power Unit
This section describes how to
install
, but not make the connections to, the Power Unit for your Lift.
An Electrician is
not
needed to install the Power Unit; one is required to connect the Power Unit to its
power source.
The Power Unit
must
be installed on the Power Post; attach it to one of the two Mounting Brackets,
whichever is more convenient for the installation.
⚠ DANGER Risk of explosion: The Power Unit has internal arcing or parts that may spark and
should not be exposed to flammable vapors. Never expose the Power Unit motor
to rain or other damp environments. Damage to the motor caused by water is
not
covered by the warranty.
⚠ CAUTION The Power Unit is heavy. BendPak recommends you have one person hold the
Power Unit while another person bolts it in place.

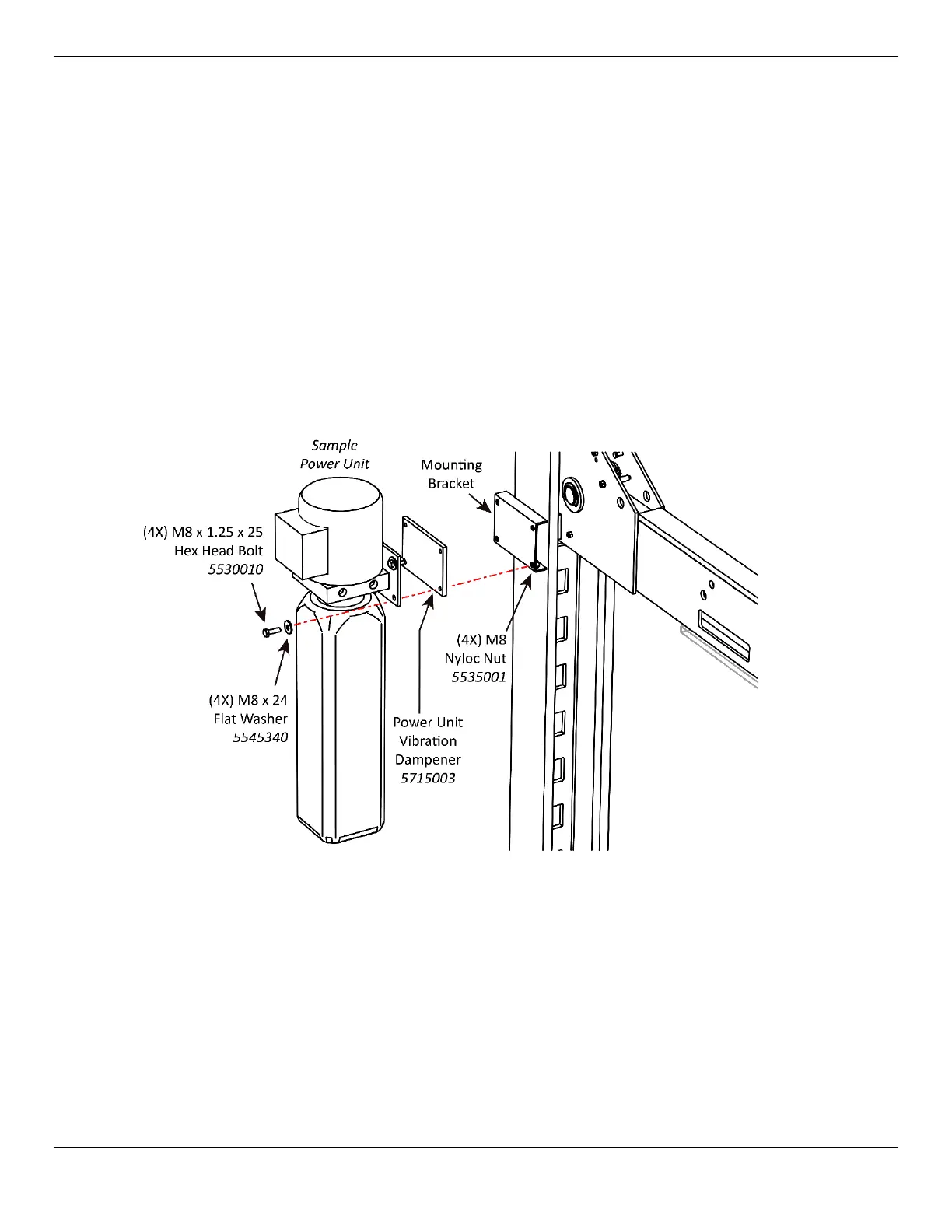

The following drawing shows how to attach the Power Unit to the Power Post.
NOTICE Your Lift came with the Power Unit that was ordered. In order to support a wide variety
of applications, that Power Unit could be one of multiple Power Units that are available.
Because of this, the Power Unit that came with your Lift may look slightly different from
the drawings in this manual.
To install the Power Unit:
1. Find the Power Unit, Vibration Dampener, and supplied hardware.
2. Line up the holes on the Mounting Plate and Vibration Dampener with the four holes in the
Mounting Bracket you want to use.
Both the Vibration Dampener and the Mounting Bracket have four holes, one in each corner. Make
sure to use all four holes to hold the Power Unit.
3. Secure the Power Unit and Vibration Dampener to the Mounting Plate using supplied hardware.
