Filling the Hydraulic Fluid Reservoir
The Hydraulic Fluid Reservoir requires approximately 3.6 gallons / 13.5 liters of Hydraulic Fluid.
The Power Unit will
not work correctly until it is filled with the approved Hydraulic Fluid.
Approved fluids are any general purpose ISO-32, ISO-46, or ISO-68 Hydraulic Fluid or approved
automatic transmission fluids such as Dexron III, Dexron VI, Mercon V, Mercon LV, or any synthetic
Multi-Vehicle automatic transmission fluid.
⚠ WARNING Do not run your Power Unit without Hydraulic Fluid; you will damage it.
To fill the Hydraulic Fluid Reservoir:
1. Remove the Reservoir Cap and set it aside.
Take care to
keep contaminants out of the Hydraulic Fluid Reservoir.
2. Fill the Hydraulic Fluid Reservoir on the Power Unit with the appropriate amount of Hydraulic Fluid.
3. When the Reservoir is filled, replace the Reservoir Cap.
Do not connect the Power Unit to a power source at this point .
Installing the Flex Tube

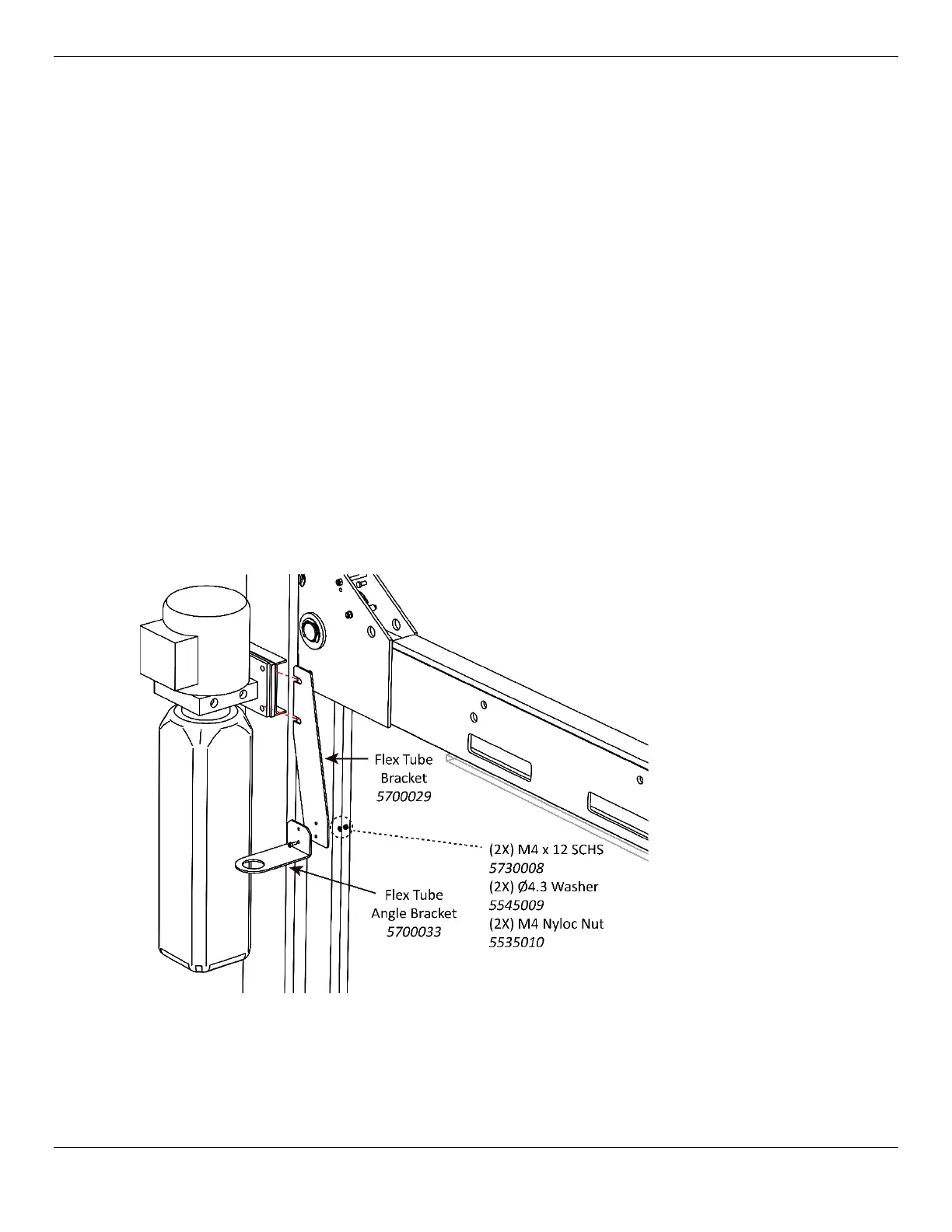

To connect the Flex Tube to the Power Unit, you first need to connect the Flex Tube Bracket and the
Flex Tube Angle Bracket.
BendPak recommends orienting the Flex Tube so that the lines coming out of it are near where it
connects on the Power Unit and to the Pushbutton Air Valve.
