HD-14T Four Post Lift 47 P/N 5900037 — Rev. F — February 2022

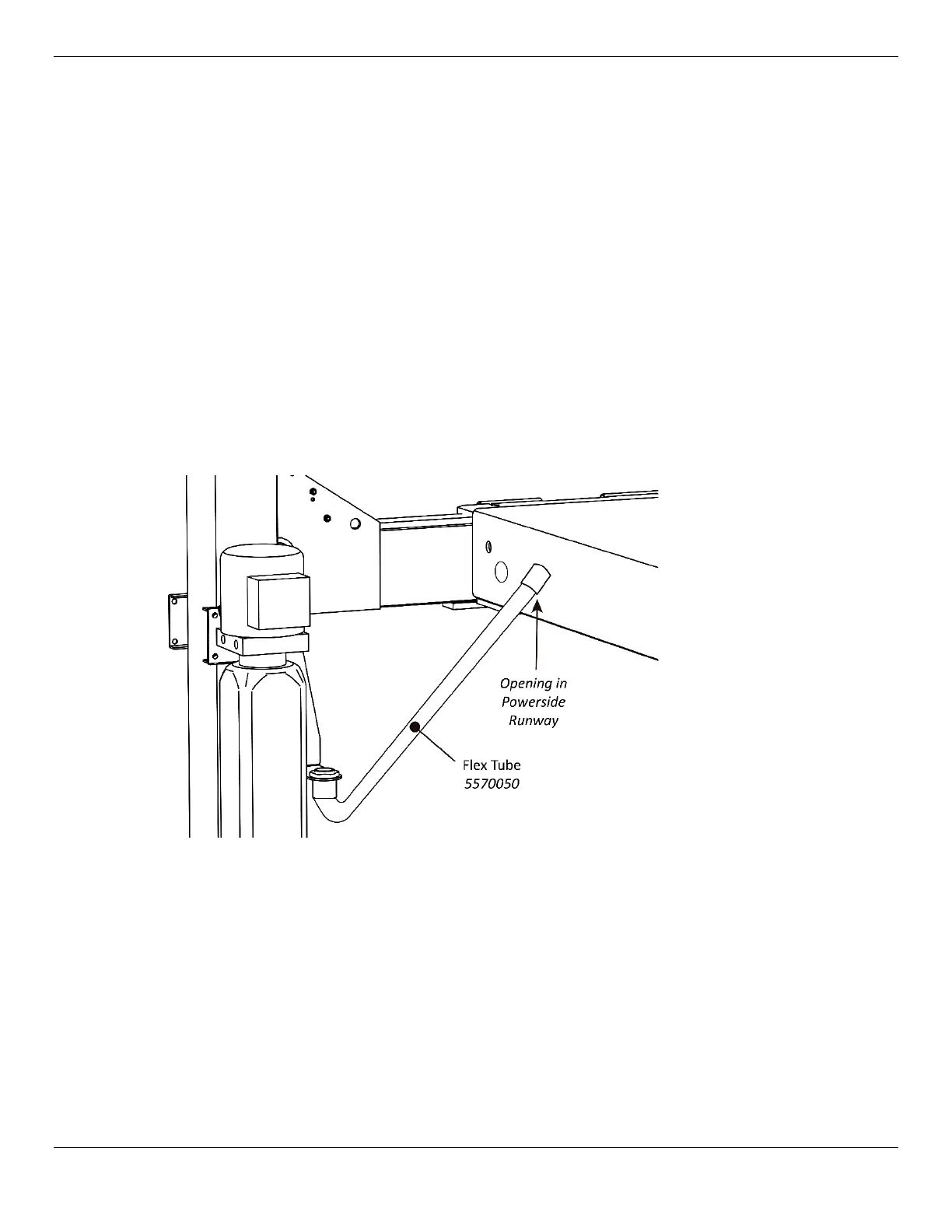

To connect the Flex Tube:
1. Locate the Flex Tube Bracket and the Flex Tube Angle Bracket from the Parts Box.
2. Install the Flex Tube Bracket Plate. Location options are: between the Mounting Bracket and the
Back Plate or between the Back Plate and the retaining Nut.
NOTICE It is common to install the Flex Tube Bracket Plate between the Mounting Bracket and
the Back Plate. This allows the Zero Angle Bracket (which holds the Pushbutton Air Valve
and is described in the next section) to be installed between the Back Plate and the
retaining Nut. This configuration is common, but not required.
3. Connect the Flex Tube Angle Plate to the Flex Tube Bracket Plate using two Bolts, Washers, and
Nuts.
The Flex Tube Angle Plate can be connected on either side of the Flex Tube Bracket Plate.
4. When the Flex Tube Angle Plate is in place, unscrew the Plastic Collar of the Flex Tube.
5. Holding the Flex Tube by the Plastic Collar, put the Threads through the hole on the Flex Tube
Angle Plate
from underneath
.
6. Screw the Plastic Nut back onto the Threads and tighten.
