16. Route Lifting Cable C all the way to the other end of the Runway, where Lifting Cable A is, making

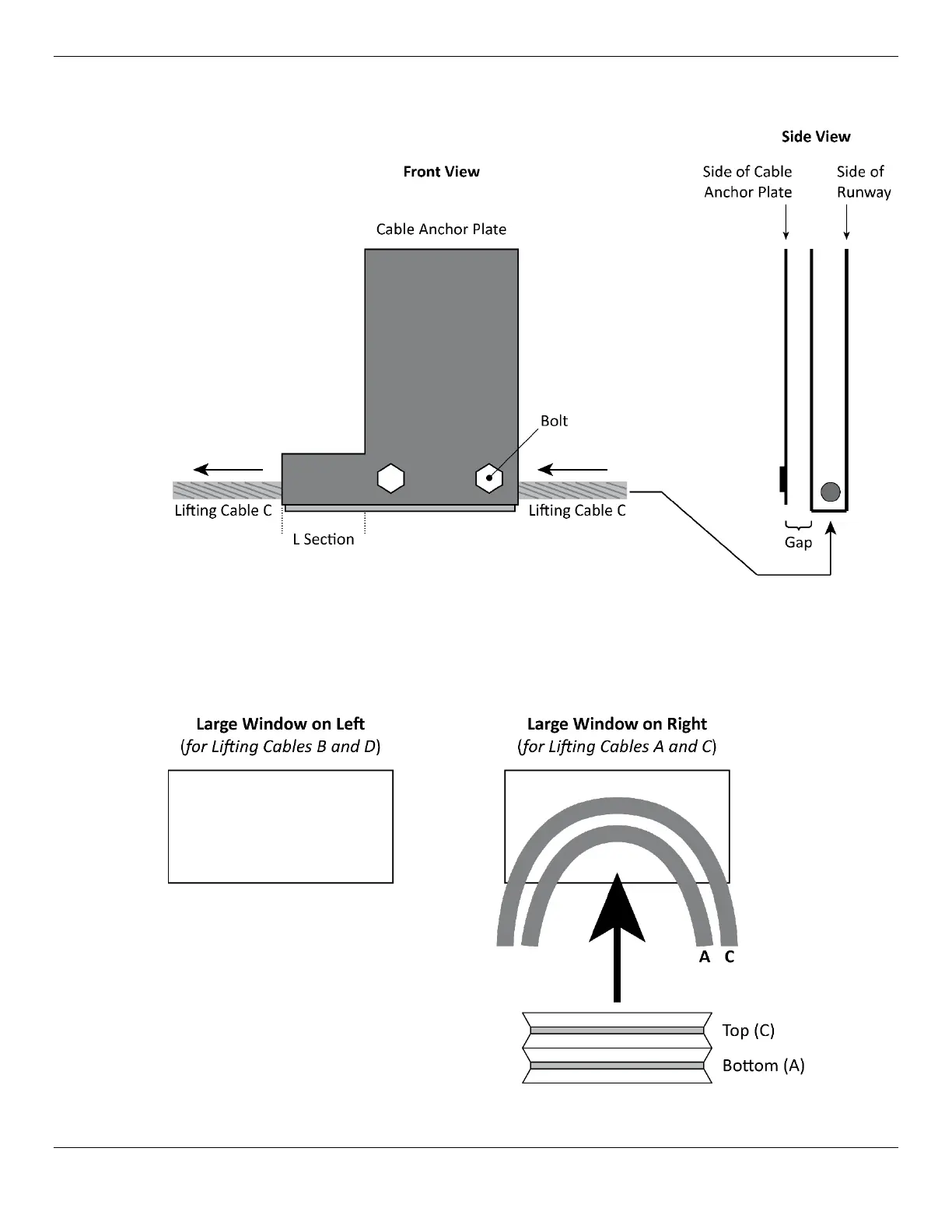

sure to route it over the retaining section of the Cable Anchor Plate (shown below).
Not necessarily to scale. Not all components shown.
17. Gather the unrouted portions of Lifting Cables A and C, making sure to orient Lifting Cable C
above Lifting Cable A.
18. Push Lifting Cables A and C into the space where the double Cable Sheave goes (in the Large
Window) and move the Button Ends towards the Pull Box.
Not necessarily to scale. Not all components shown.
To Next Page
