BendPak HD-7W - Page 16

HD-7P / HD-7W Four-Post Lifts 16 P/N 5900041 — Rev. M — July 2019

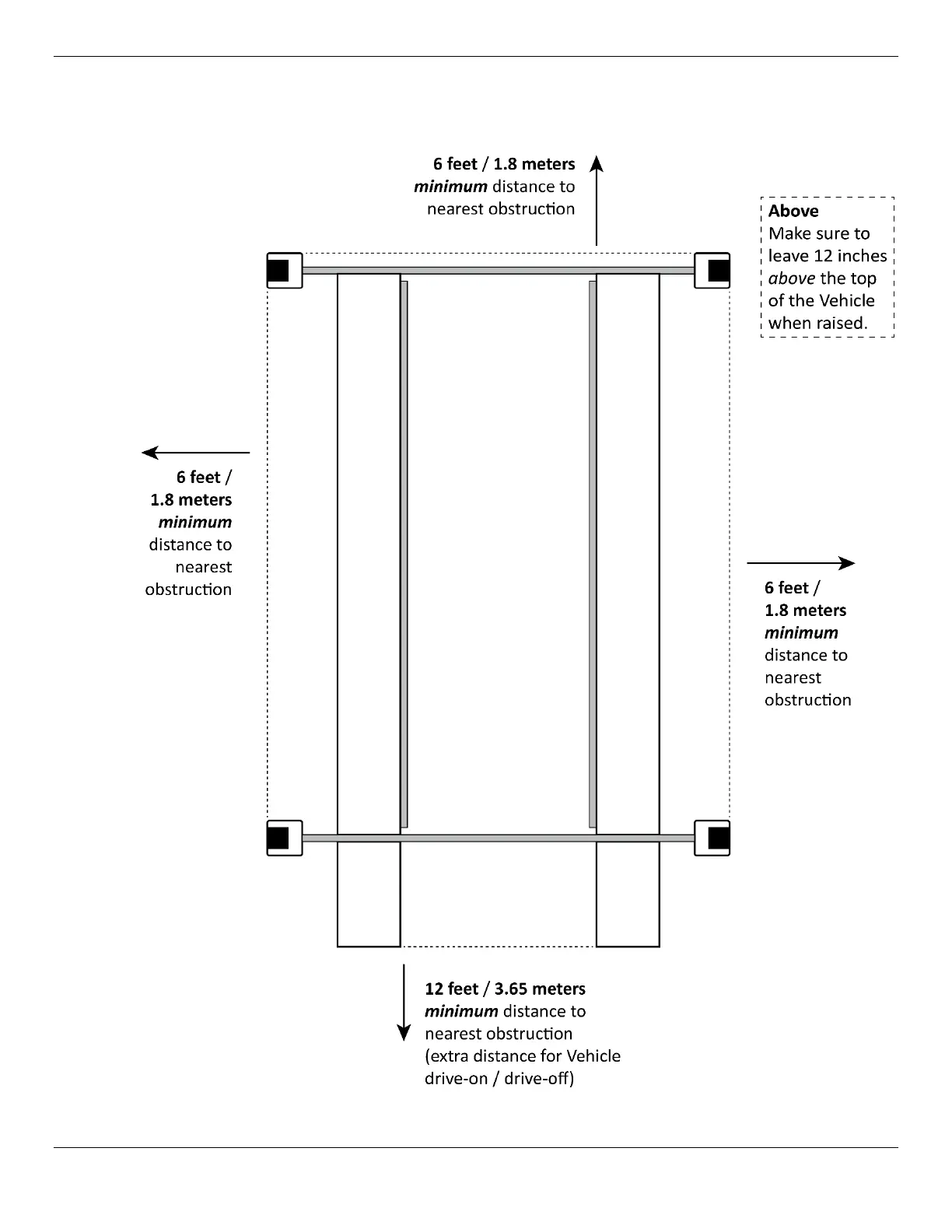

Checking Clearances
For safety purposes, a certain amount of clear space around the Lift is required .
Drawing is a top view. Not necessarily to scale. Not all components shown.
