HD-7P / HD-7W Four-Post Lifts 54 P/N 5900041 — Rev. M — July 2019

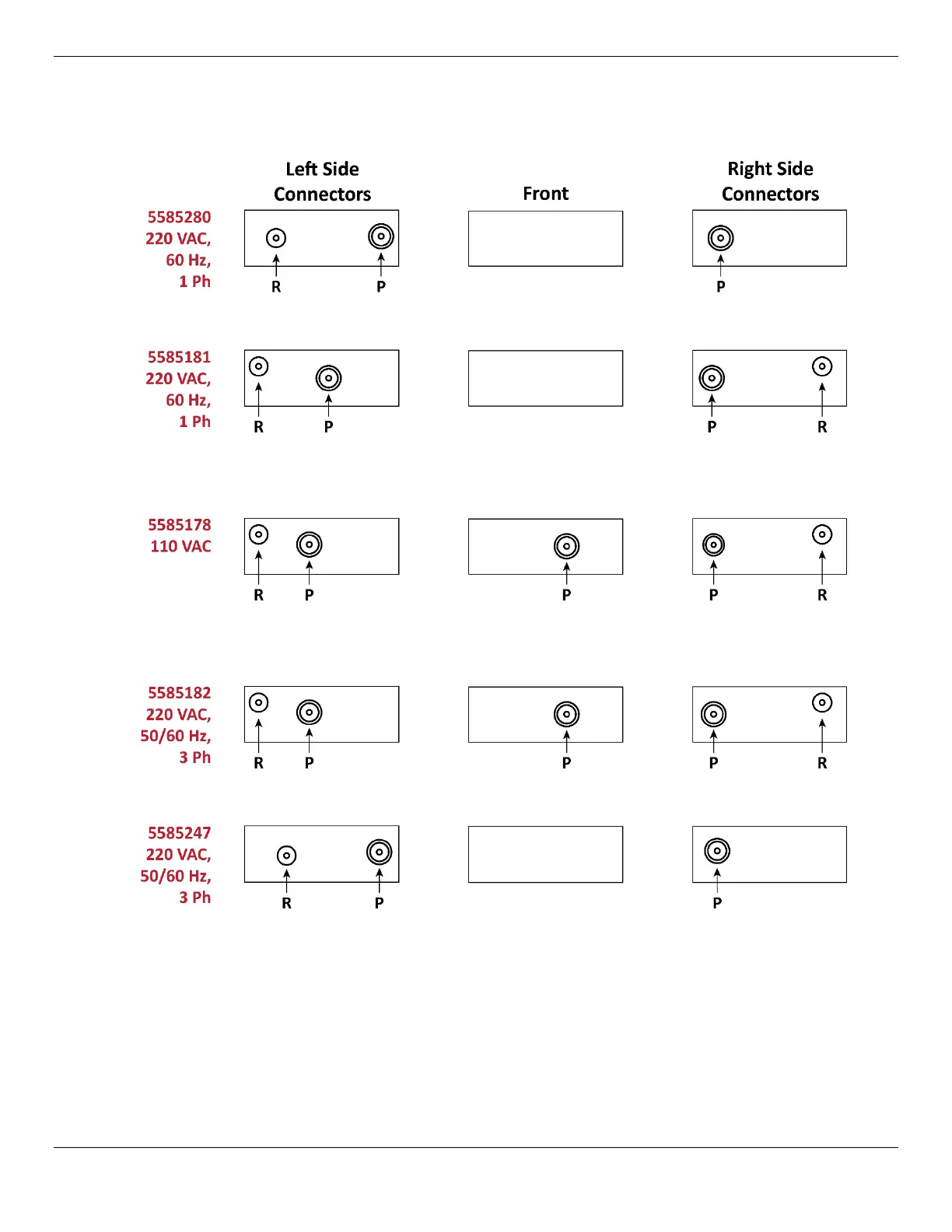

The Hydraulic Out and Return Line ports for HD-7P and HD-7W Power Units are shown below.
Hydraulic Out ports on the Power Units are labeled P below, while Return Line ports are labeled R.
Port labels on individual Power Units may be slightly different or may not be present at all.
