BendPak HD-9STX - Shipping Information; Safety Considerations; Safety Information

DIMENSIONS ARE IN MM
☺
B
4
3
2
8
5
9
1
7
6
DETAIL A
SCALE 1 : 2
11
12
10
DETAIL B
SCALE 1 : 22
16
15
13
14
NEXT ASSEMBLY
5260528
ITEM
NO.
PART
NUMBER
DESCRIPTION QTY REV
1 5216149 HD-9ST/STX CROSSTUBE ASSEMBLY, SMALL WINDOW 1 A
2 5216150 HD-9ST/STX CROSSTUBE ASSEMBLY, LARGE WINDOW 1 A
3 5600919 HD-7/9/7500 SAFETY LADDER WELDMENT 4 C
4 5601134 HD-7/9/7500 POWER SIDE POST WELDMENT 1 B
5 5601133 HD-7/9/7500 OFF SIDE POST WELDMENT 3 B
6 5215192 HD-9/7500BLX POWER SIDE RAMP ASSEMBLY 1 AD
7 5600205 HD-9/7500BLX OFF SIDE RAMP WELDMENT 1 K
8 5600890 HD-7/7500/9 TIRE STOP PLATE WELDMENT 2 F
9 5215193 HD-7/9/7500BL DRIVE UP RAMP ASSEMBLY 2 G
10 5535021 NUT M16 x 2.0 4 -
11 5535008 NUT M16 x 2 NL 4 -
12 5545025 WASHER, M16 x 30mm FLAT 4 -
13 5746381 HD-7/7500/ 9 SPACER, SAFETY LADDER, 17.5mm LG 4 B
14 5535013 NUT M10 x 1.5 NL 4 -
15 5545341 WASHER M10 x Ø20 FLAT 8 -
16 5530167 HHB M10 x 1.5 x 45mm 4 -
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
V UPDATED BOM REVISION 07/14/2021 TM 01316
W UPDATED BOM REVISIONS 12/13/2021 TM 01367
X
REPLACED 5215601 WITH 5216149, AND
5215602 WITH 5216150
05/24/2022 TM 01414
WHERE USED
HD-9STX
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
X
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5245392

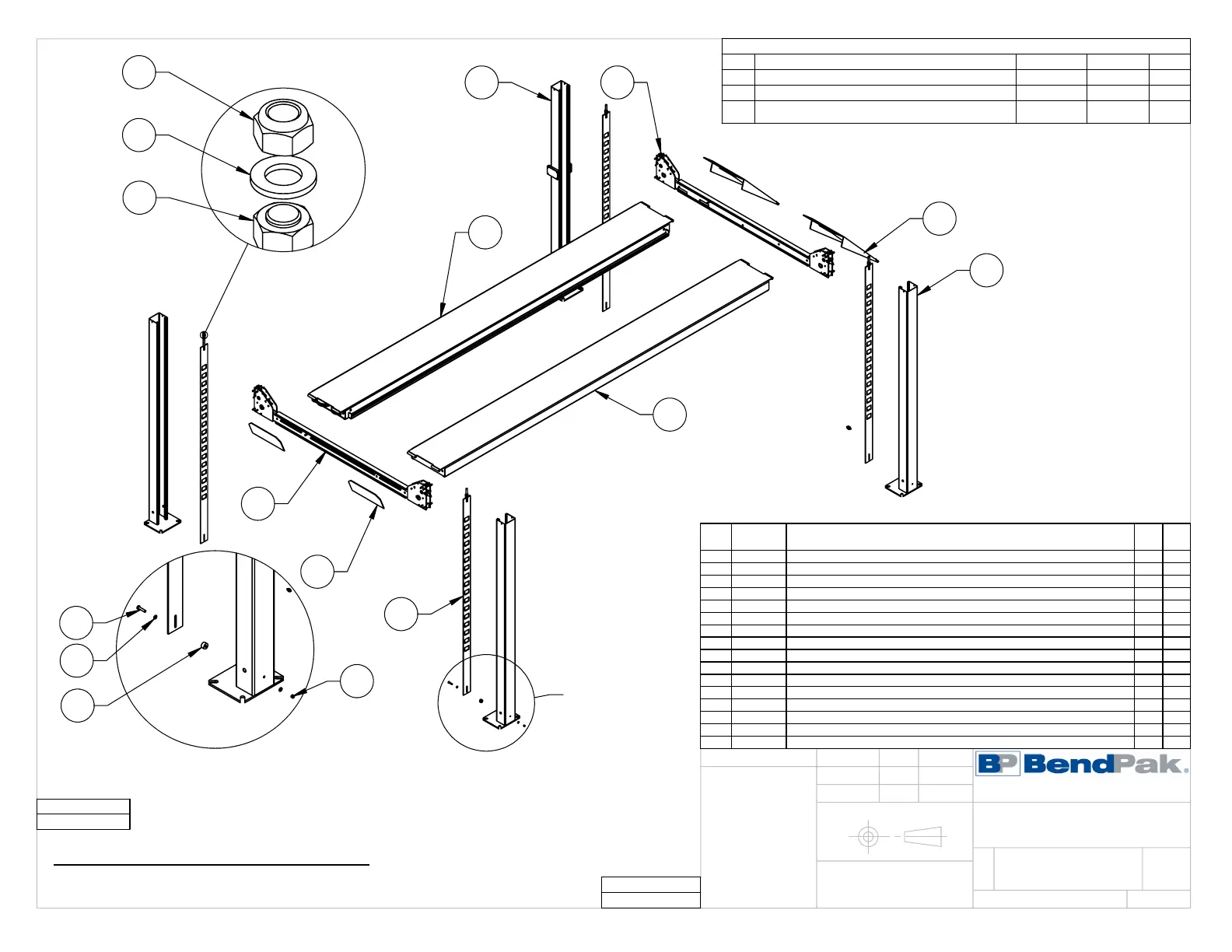

HD-9STX LIFT
SUPERSTRUCTURE
08/11/2014
DO NOT SCALE DRAWING
1:45
SCALE:
THIRD ANGLE PROJECTION
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 1.
THREAD M16 HARDWARE ONTO LADDER BOLTS AS SHOWN 2.
