DIMENSIONS ARE IN MM
☺
1
22
DETAIL A
SCALE 1 : 6
6
17
3 7
8
2
13
16
4
5
14
19
9
15
10
21
20
12
18
23
11
ITEM
NO
PART
NUMBER
DESCRIPTION
QTY
REV
1 5601808
HD-9ST CROSSTUBE WELDMENT, SMALL WINDOW
1
A
2 5746008
D4-12, HD/HDS-7/7500/9/14, HDSO-14 SAFETY PIN
2
D
3 5575420
HD-7/7500/9 SAFETY ROLLER
2
C
4 5215122
HD-7/7500/9 SINGLE SHEAVE ROLLER ASSEMBLY
2
E
5 5600160
HD-7/7500/9 CROSSTUBE SHEAVE SHAFT WELDMENT
2
G
6 5600760
D4-12, HD/HDS LIGHT DUTY SAFETY WELDMENT
2
C
7 5600044
4 POST LIGHT DUTY SLACK SAFETY WELDMENT
2
F
8 5540275
E RING Ø25mm OD DIN 6799 0250
8
-
9 5502195
AIR CYLINDER, Ø19mm x 25 STROKE
2
-
10 5530005
HHB M6 x 1 x 70
6
-
11 5545005
WASHER, M6 x 12mm FLAT
2
-
12 5535357
NUT M6 x 1.0 NL
8
-
13 5540065
SPRING Ø13mm x 90mm, SLACK SAFETY
2
A
14 5505625
FEMALE ROD END M6 x 33
2
-
15 5550087
FTG ELB -04 COMP x -02 NPT
2
-
16 5540010
E RING Ø32mm OD DIN 6799
2
-
17 5505030
PUSH-ON CLIP Ø10mm SS
2
-
18 5545026
WASHER M6 x Ø12 SL
2
-
19 5530756
HHB M6 x 1.0 x 25mm
2
-
20 5755136
AIR CYLINDER SPACER 12mm
2
A
21 5755137
AIR CYLINDER SPACER 25mm
2
A
22 5755157
D4-12, HD-7/7500/9 CROSSTUBE SPACER Ø16 x Ø10 x 50
2
A
23 5535230
NUT 1/4-28 JN
2
-
NEXT ASSEMBLY
5245392
5245395
WHERE USED
HD-9ST
HD-9STX
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
A
PRODUCTION RELEASE, DERIVED FROM 5215601
04/28/2022
TM
01414
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
A
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED
.
TM

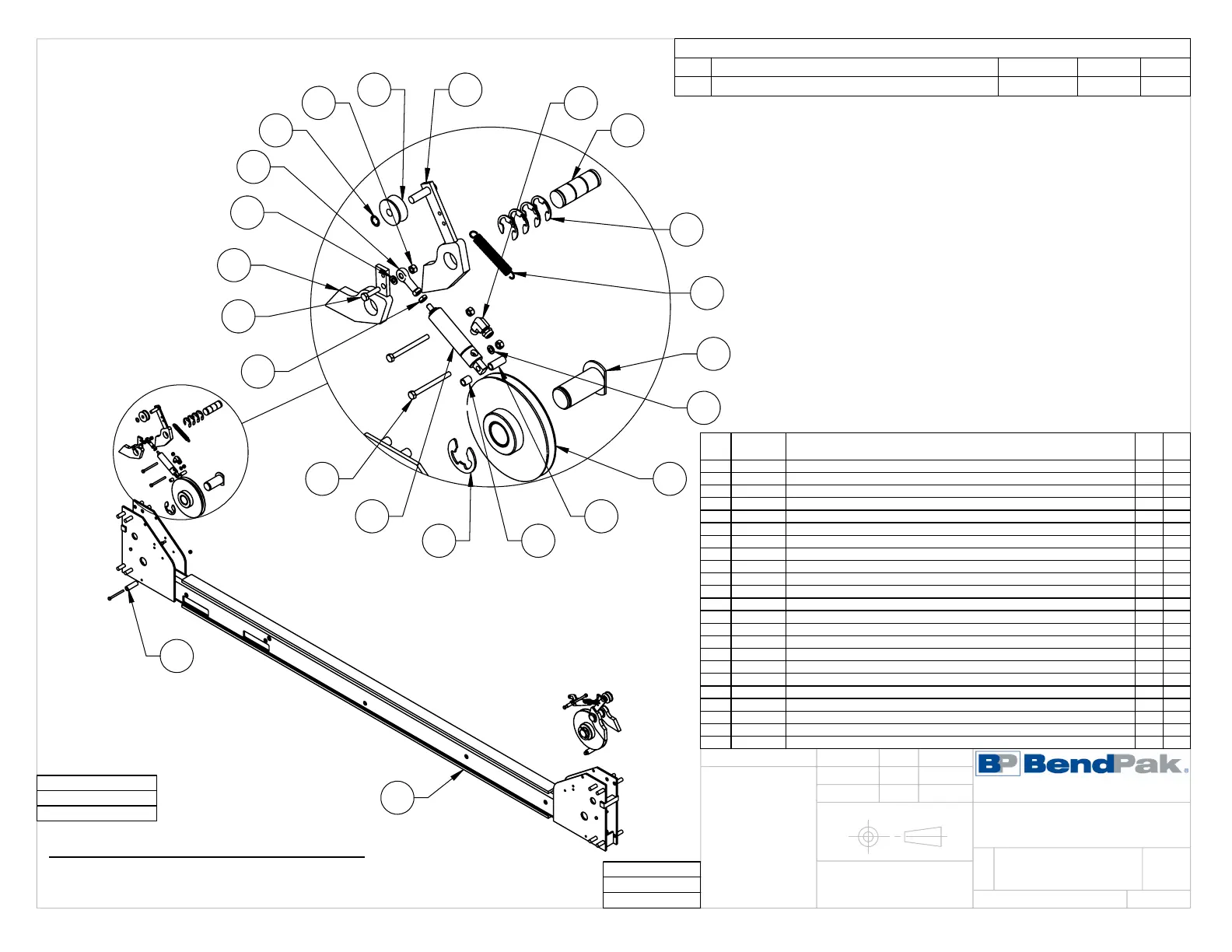

5216149
HD-9ST/STX CROSSTUBE
ASSEMBLY, SMALL WINDOW
04/28/2022
DO NOT SCALE DRAWING
1:16
SCALE:
THIRD ANGLE PROJECTION
REFER TO MODEL FOR ADDITIONAL INFORMATION
1.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING
2.
ASSEMBLE ITEMS AS SHOWN
3.
