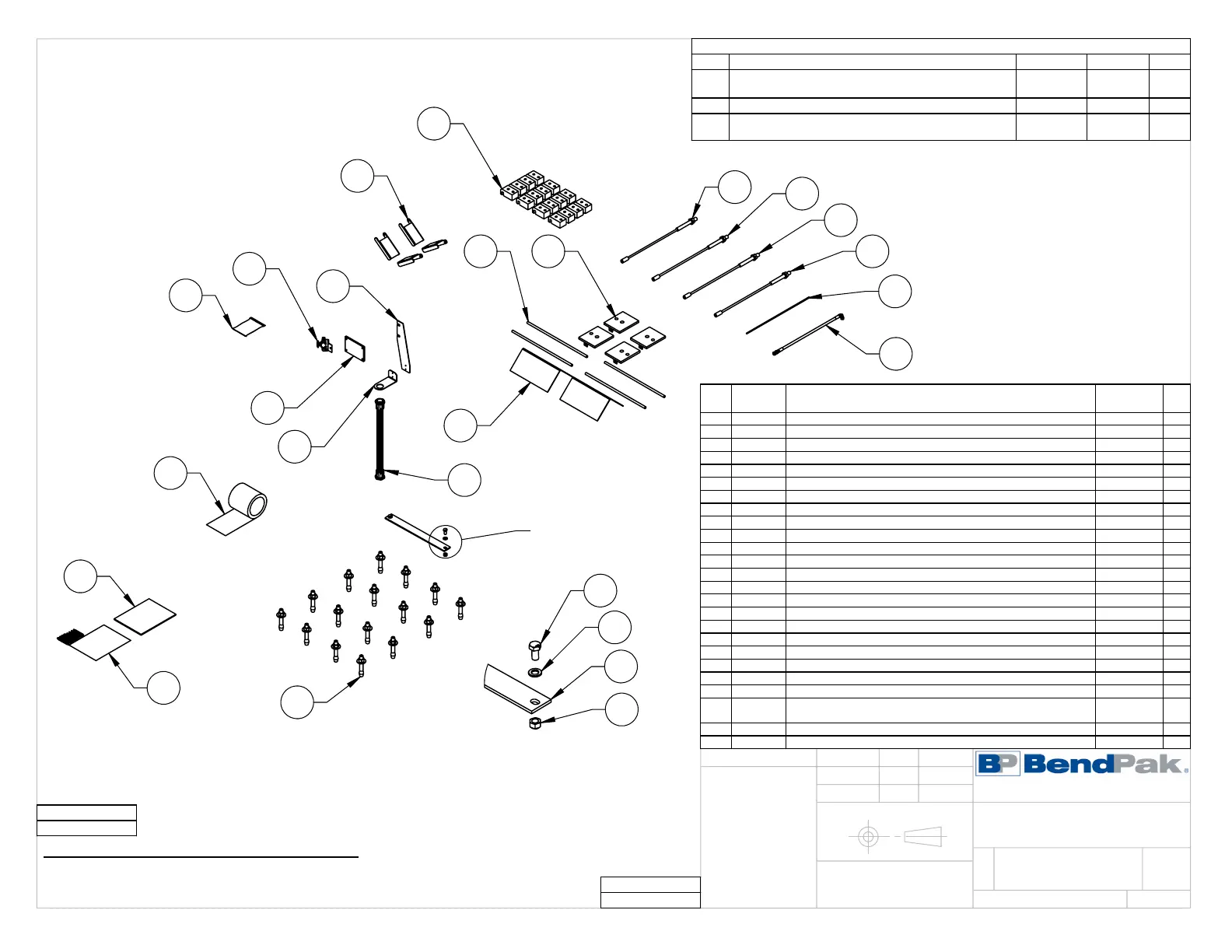

BendPak HD-9STX - 5250189; Sheet1; Drawing View1; Detail View B (1: 8)

DIMENSIONS ARE IN MM
☺
B
24
16
8
1
12
11
13
5
4
3
2
6
14
15
9
17
7
18
23
25
10
DETAIL B
SCALE 1 : 8
21
20
19
22
WHERE USED
HD-9STX
ITEM
NO.
PART
NUMBER
DESCRIPTION QTY. REV
1 5715003 POWER UNIT VIBRATION DAMPENER 1 B
2 5595918 HD-9STX CABLE ASSEMBLY Ø10 x 9404mm ST 1 F
3 5595912 HD-9STX CABLE ASSEMBLY Ø10 x 7978mm ST 1 G
4 5595908 HD-9STX CABLE ASSEMBLY Ø10 x 4663mm ST 1 G
5 5595902 HD-9STX CABLE ASSEMBLY Ø10 x 3240mm ST 1 H
6 5700072 WHEEL CHOCK 2 B
7 5216139 FLEX TUBE KIT, UP TO 2000mm 1 A
8 5215096 PUSH BUTTON AIR ASSEMBLY 1 G
9 5745014 HD-7/7500/9 DRIVE UP RAMP PIN 4 B
10 5174092 HD-7/9/7500 PARTS BAG 1 G
11 5570795 1/4" POLY-FLO TUBING 17000*mm -
12 5700029 HD-SERIES FLEX TUBE BRACKET PLATE 1 F
13 5700033 HD-SERIES FLEX TUBE ANGLE 1 E
14 5570036 HD-9STX/9XW HYD. HOSE ASSY Ø6.4 x 3683mm 1 E
15 5530456 AB 3/4" x 4 - 3/4" 16 -
16 5600405 HD-7/9/7500 TOP PLATE WELDMENT 4 C
17 5900123 HD-9 INSTALLATION MANUAL 1 -
18 5716630 HD-7/7500/9 CROSSTUBE COVER, PLASTIC 4 A
19 5735663 HD-9 RAMP STRAP, BOLT ON 1 B
20 5545347 WASHER, M12 FLAT WASHER 2 -
21 5530375 HHB M12 x 1.75 x 25 CL12.9 2 -
22 5535012 NUT M12 x 1.75 NL 2 -
23 5716005
D4-12, HD-7/7500/9/14/HDSO-14 POLYETHYLENE SLIDE
BLOCK
16 M
24 5210241 4 POST LIGHT DUTY CE PARTS BAG 1 A
25 5930195 ANTI-SLIP TAPE, 6” x 24ft 1 --
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
N
ADDED 5210241, REMOVED 5535358 AND
5545342, UPDATED BOM REVISIONS
07/15/2020 TM 01174
P UPDATED BOM REVISION 07/19/2021 TM 01316
Q
ADDED 5930195, REPLACED 5570052 WITH
5216139
05/04/2022 TM
01414
PRE A
NEXT ASSEMBLY
5260528
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
Q
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5250189
HD-9STX PARTS BOX
05/09/2013
DO NOT SCALE DRAWING
1:25
SCALE:
THIRD ANGLE PROJECTION
OR 05/09/2022
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 1.
HOSES AND CABLES IN REPRESENTATIONAL FORM 2.
(*) LENGTH FOR REFERENCE ONLY 3.
