HDS-14LSX / HDS-14LSXE Lifts 36 P/N 5900162 — April 2018 — Rev. F3

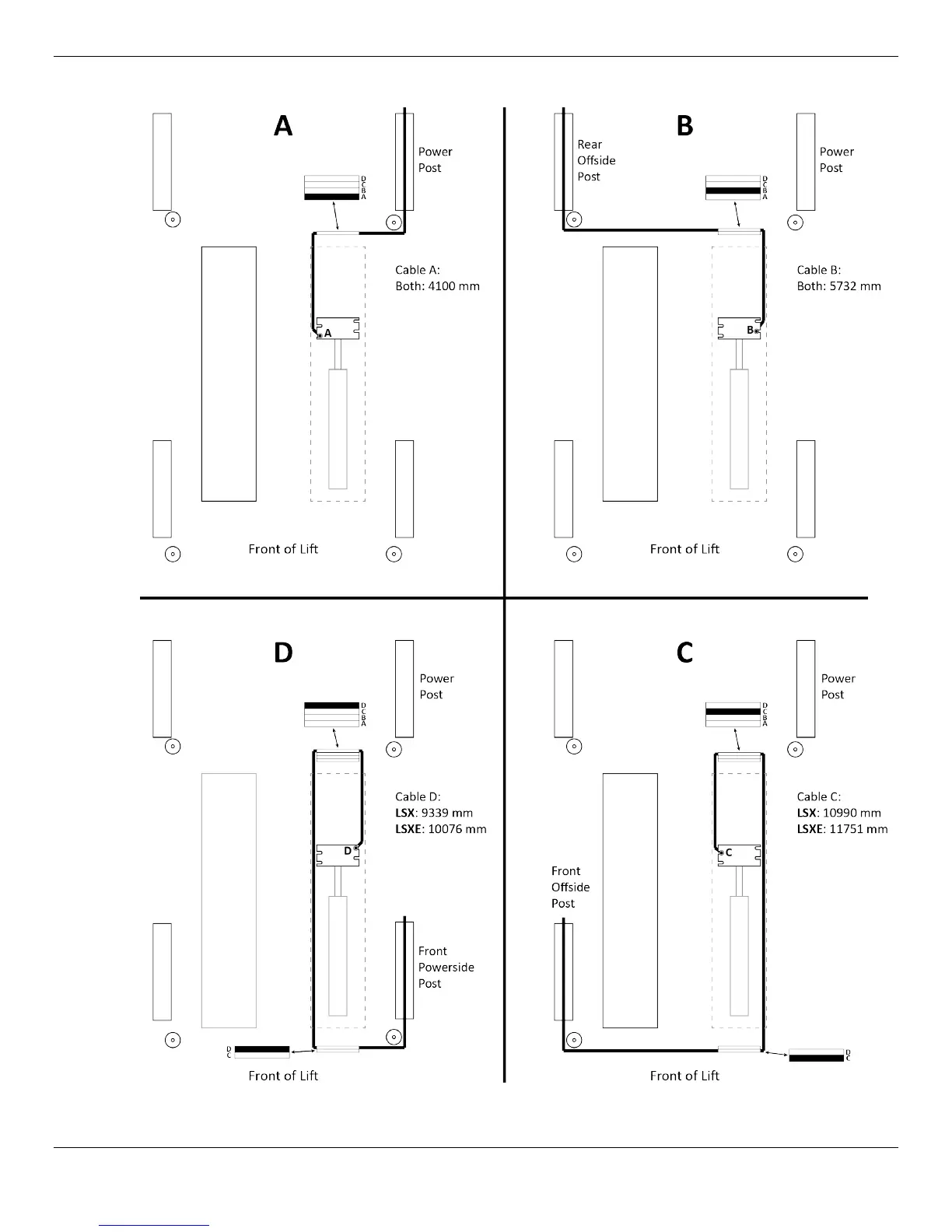

The following drawing shows the routing for all four Cables.
Not to scale. Not all components shown. View is from the Front of the Lift looking towards the Rear,
which is different from many of the other orientation drawings.
