HDS-14LSX / HDS-14LSXE Lifts 51 P/N 5900162 ā April 2018 ā Rev. F3

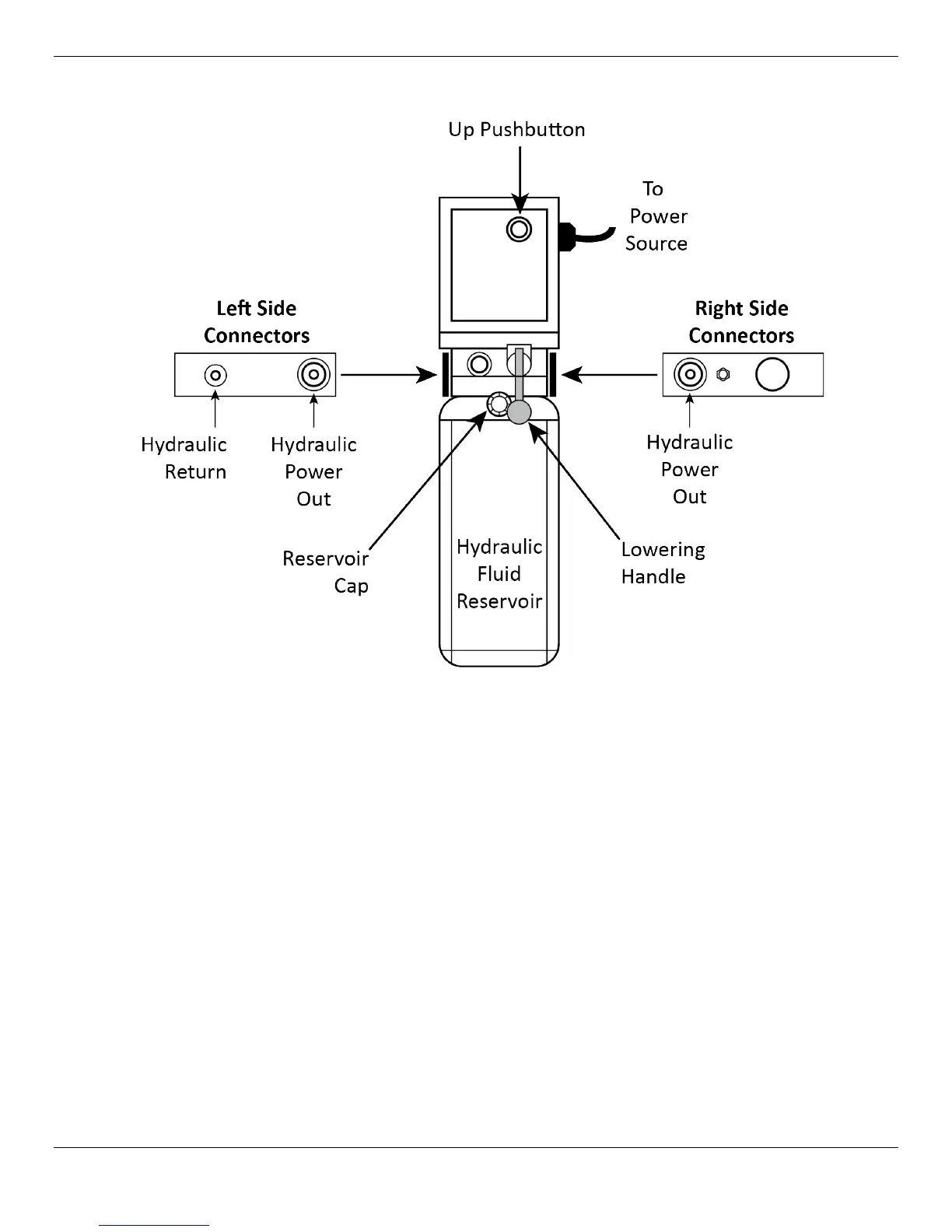

The following drawing shows Power Unit 2.
Note: The Up Pushbutton for Power Unit 1 is centered; it is off-center to the right on Power Unit 2.
To connect the Lift to a power source:
1. Have a certified, licensed electrician connect an appropriate plug to the wiring coming out of the
top of the Power Unit (labelled To Power Source in the drawings above).
The plug is
not
supplied with the Lift.
2. Connect the power source cable to the plug you just connected.
Refer to Wiring Diagrams for proper wiring information.
The power source cable is
not
supplied with the Lift.
3. Double check to make sure the Hydraulic Fluid Reservoir has an adequate supply of fluid.
Do not run the Lift without adequate supply of Hydraulic Fluid; you will damage the Power Unit.
