BendPak P-9000LT - Clearance Requirements

P-9000LT/F Low-Rise Pit Lift 13 P/N 5900022 — Rev. B — Nov. 2019

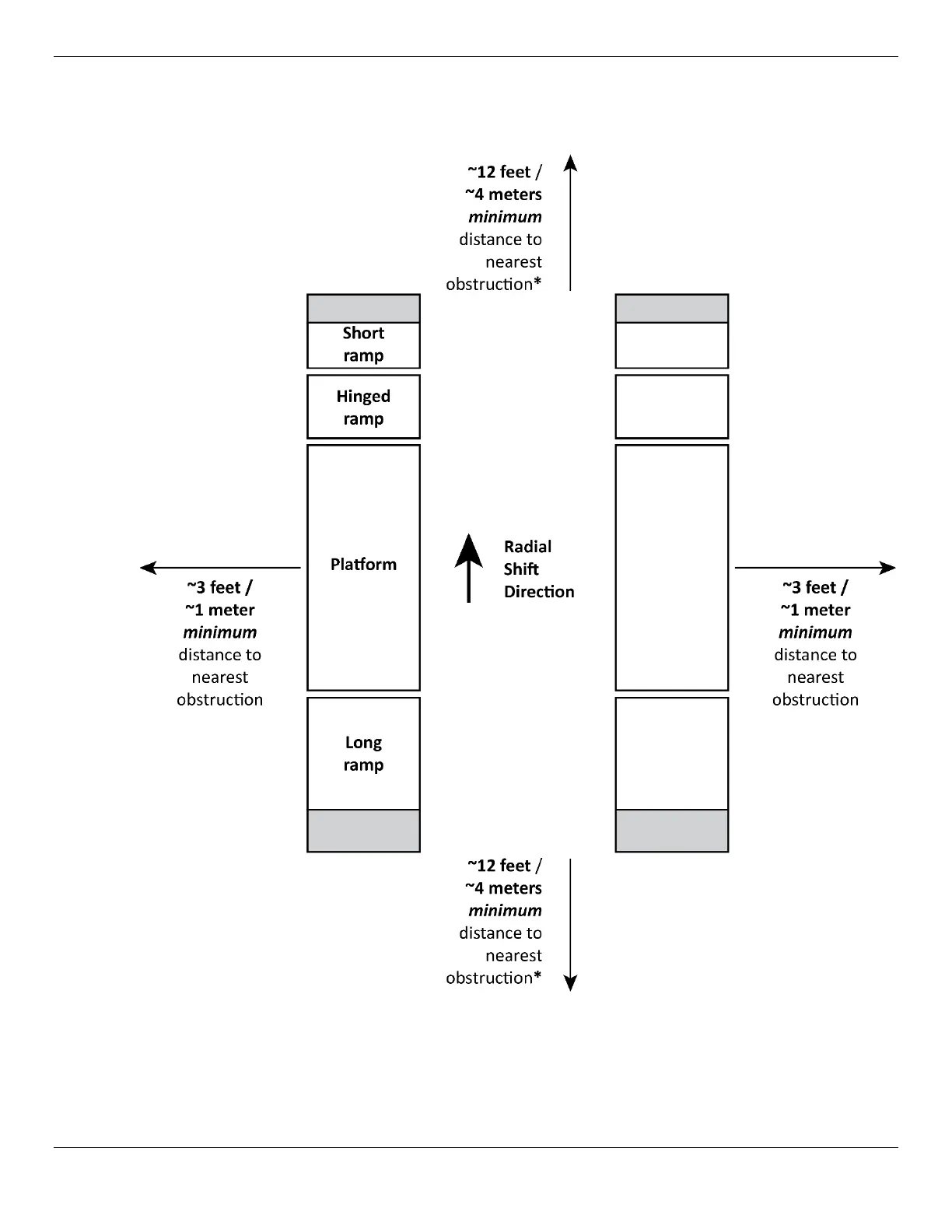

Clearance Around the Lift
For safety purposes, a certain amount of clear space around the Lift is required .
* If one end is
never going to be used to drive on or off the Lift (there’s a wall there, for example),
then only ~3 feet / ~1 meter is needed to the nearest obstruction on that end.
P-9000LTF does not have Long or Short ramps. Not necessarily to scale.
