P-9000LT/F Low-Rise Pit Lift 40 P/N 5900022 — Rev. B — Nov. 2019
Add the Ramps
The Lift comes with four Ramps: two Long Ramps and two Short Ramps. The P-9000LTF does not
come with any Ramps, as it is flush mount.
The standard configuration is for the Short Ramps to be installed next to the Hinged Ramps and the
Long Ramps to be installed on the other end of the Base.
This configuration creates a flat, extended Platform onto which you drive the Vehicle to be raised. The
extended Platform keeps the Vehicle flat and well above the Platforms, making it easy to position the
Lift Blocks under the manufacturer-recommended Lifting Points.

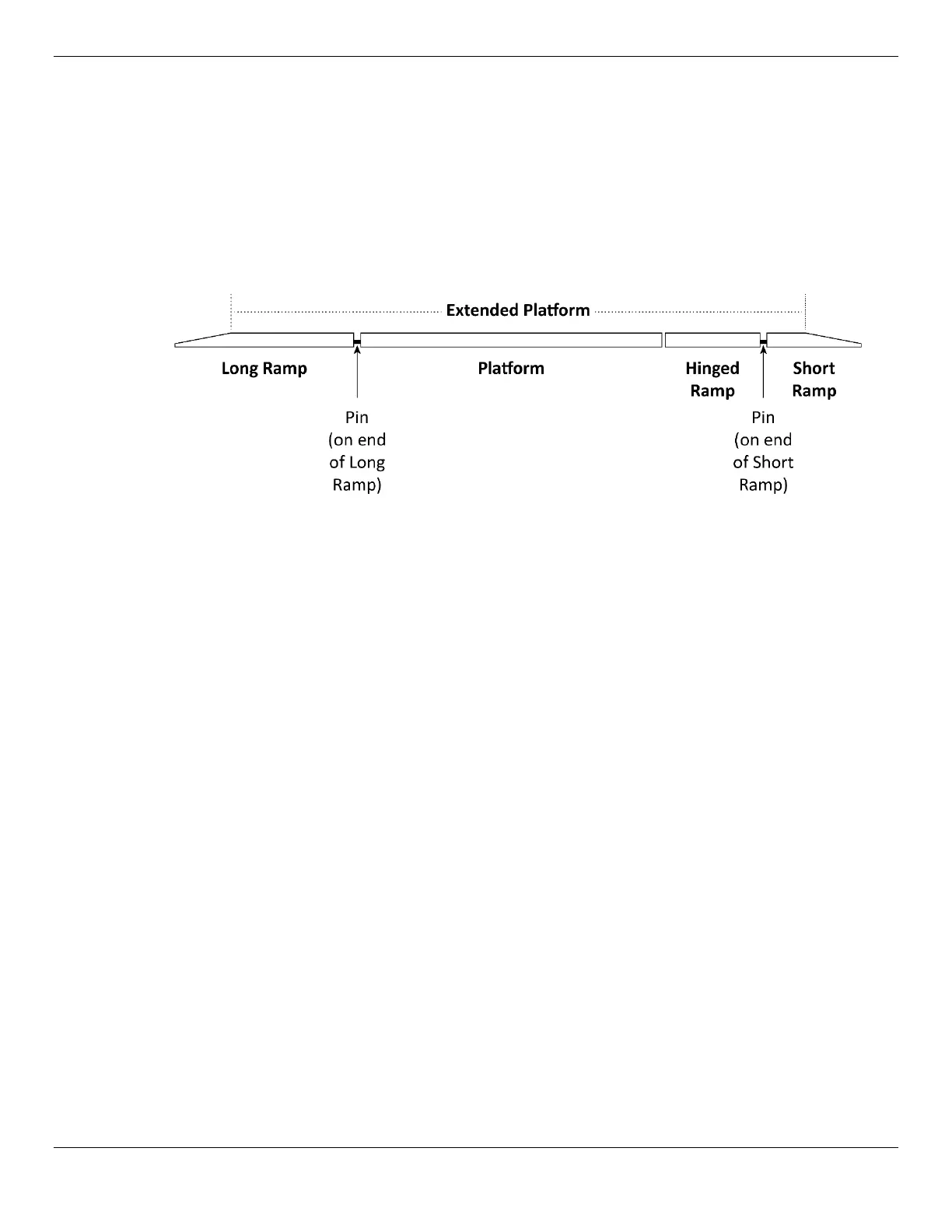

Not necessarily to scale. Not all components shown. Side view.
All four Ramps come with pins that fit into holes in the Base. To put a Ramp into position, put the pins
into the holes in the Base and make sure they are correctly seated.
Final Checklist Before Operation
Make sure these things have been done
before
using your Lift:
• Review the Installation Checklist to make sure all steps have been performed.
• Make sure the Power Unit is getting power from the power source.
• Check the Hydraulic Fluid Reservoir; it must be full of approved Hydraulic Fluid or automatic
transmission fluid.
You can harm the motor by running it without enough fluid.
• Check the Hydraulic System for leaks.
• Check to see that all Anchor Bolts are appropriately shimmed and correctly torqued.
• Make sure nothing is interfering with the Safety Locks; they must
not
be blocked in any way.
• Leave the Installation and Operation Manual with the owner/operator. It needs to be available to
anyone who operates, maintains, or troubleshoots the Lift.
