P-9000LT/F Low-Rise Pit Lift 47 P/N 5900022 — Rev. B — Nov. 2019

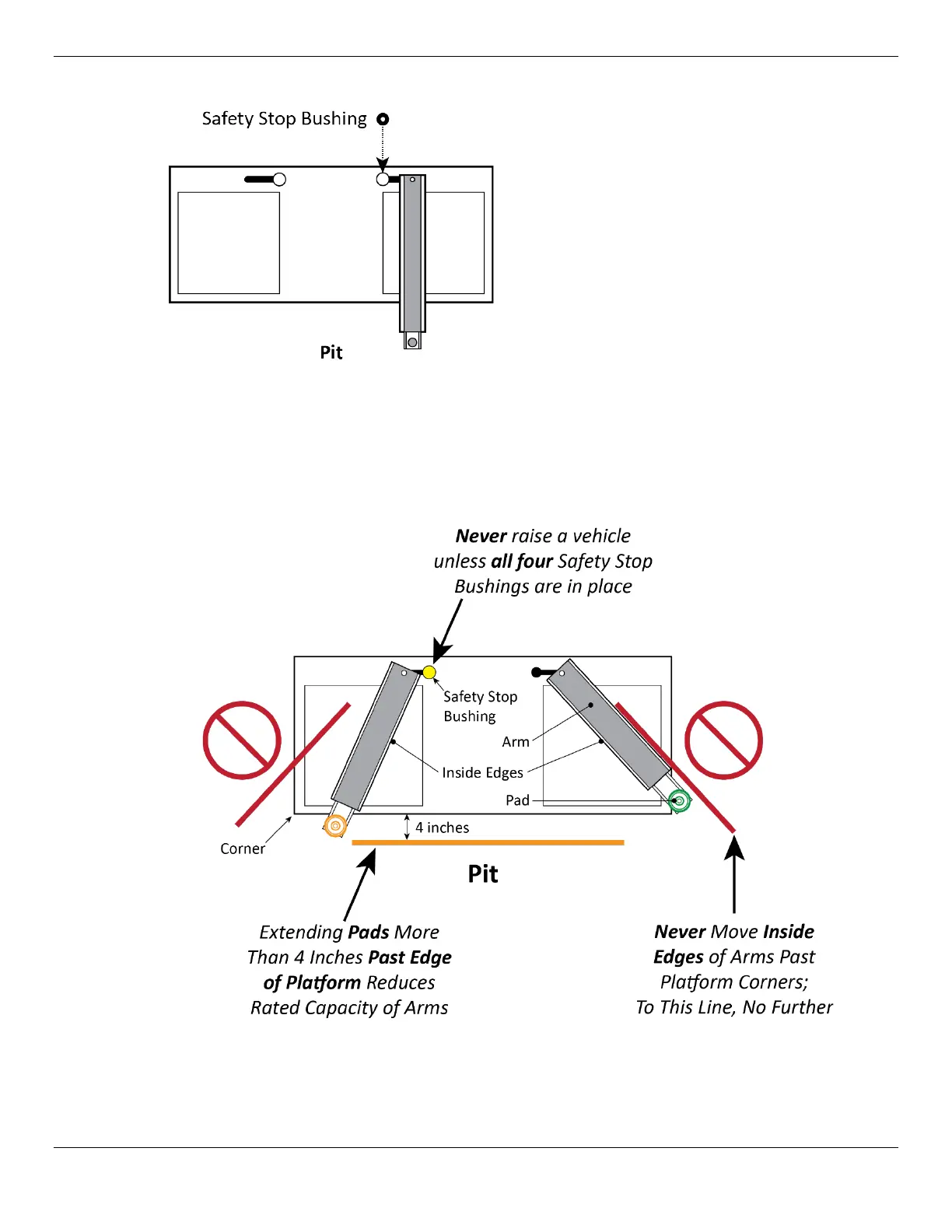

3. Put the Safety Stop Bushing into the hole and firmly press it into place.
Important: Do not use any of the Lift Arms unless
all four
of the Safety Stop bushings are in place.
4. Repeat Steps 1 through 3 for the other Lift Arms.
⚠ WARNING Never move the inside edges of the Lift Arms past the corners of the Platform. They
are not designed to hold weight past the inside edges; you could damage the Lift or
the Lift Arms.
