P-9000LT/F Low-Rise Pit Lift 6 P/N 5900022 — Rev. B — Nov. 2019
• Hydraulic Cylinders. Push the Platforms up to raise a Vehicle, move the Platforms down to
lower a Vehicle.
• Safety Locks. Hold the Platforms while they are raised. Each Platform has four Safety Locks.
• Air Cylinders. Move the Platforms off the Safety Locks when you want to lower the Lift.
• Lift Blocks. Rubber blocks that make contact with the manufacturer’s recommended Lifting
Points on the underside of the Vehicle being raised. Always use the Lift Blocks to raise a Vehicle.
• Lift Arms. An optional accessory that provides additional raising capability for trucks and SUVs.

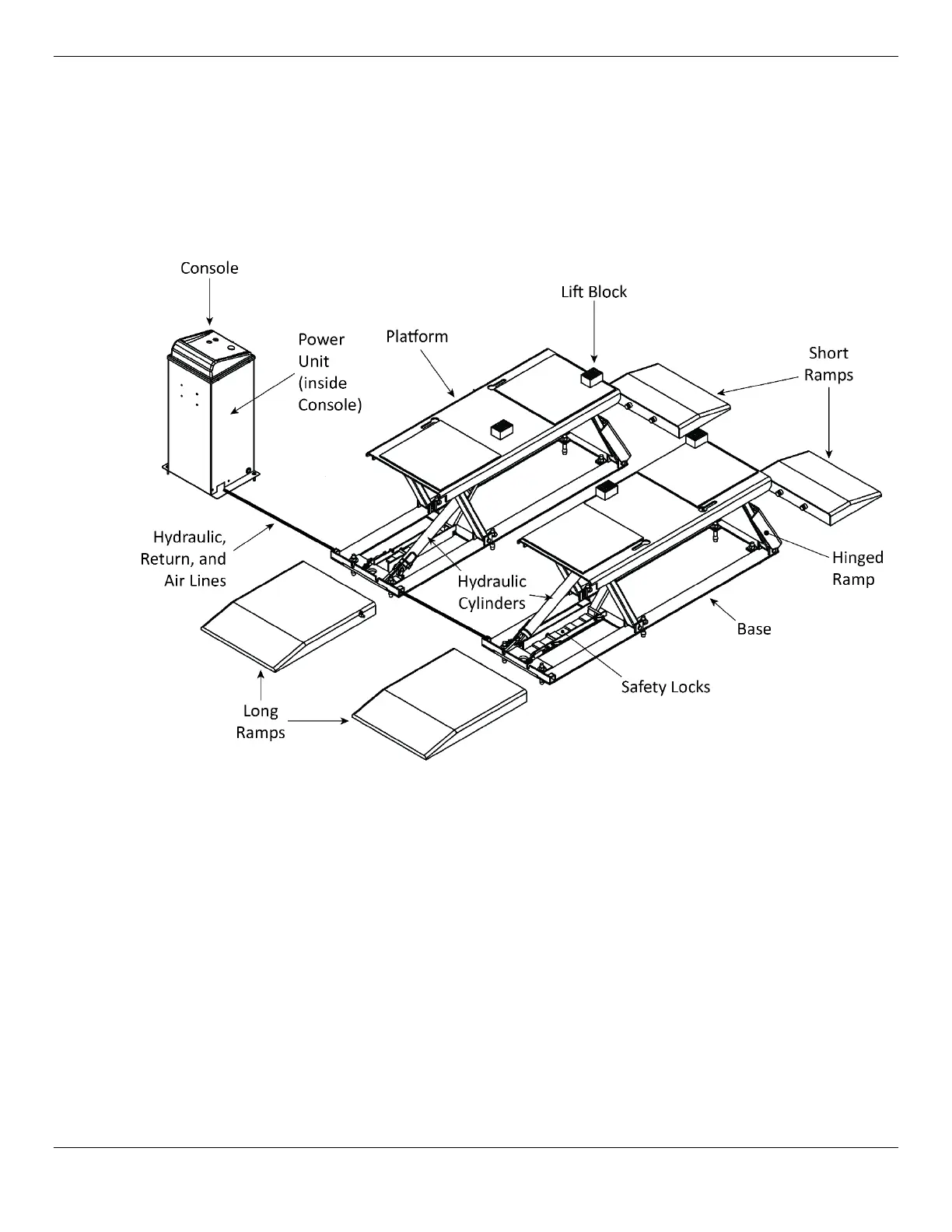

Covers for Hydraulic, Return, and Air Lines included with Lift. Ramps shown in standard configuration:
Short Ramps next to Hinged Ramps, Long Ramps on other side of Base. P-9000LT
F
does not have
Long or Short Ramps. Optional Lift Arms not shown.
