27

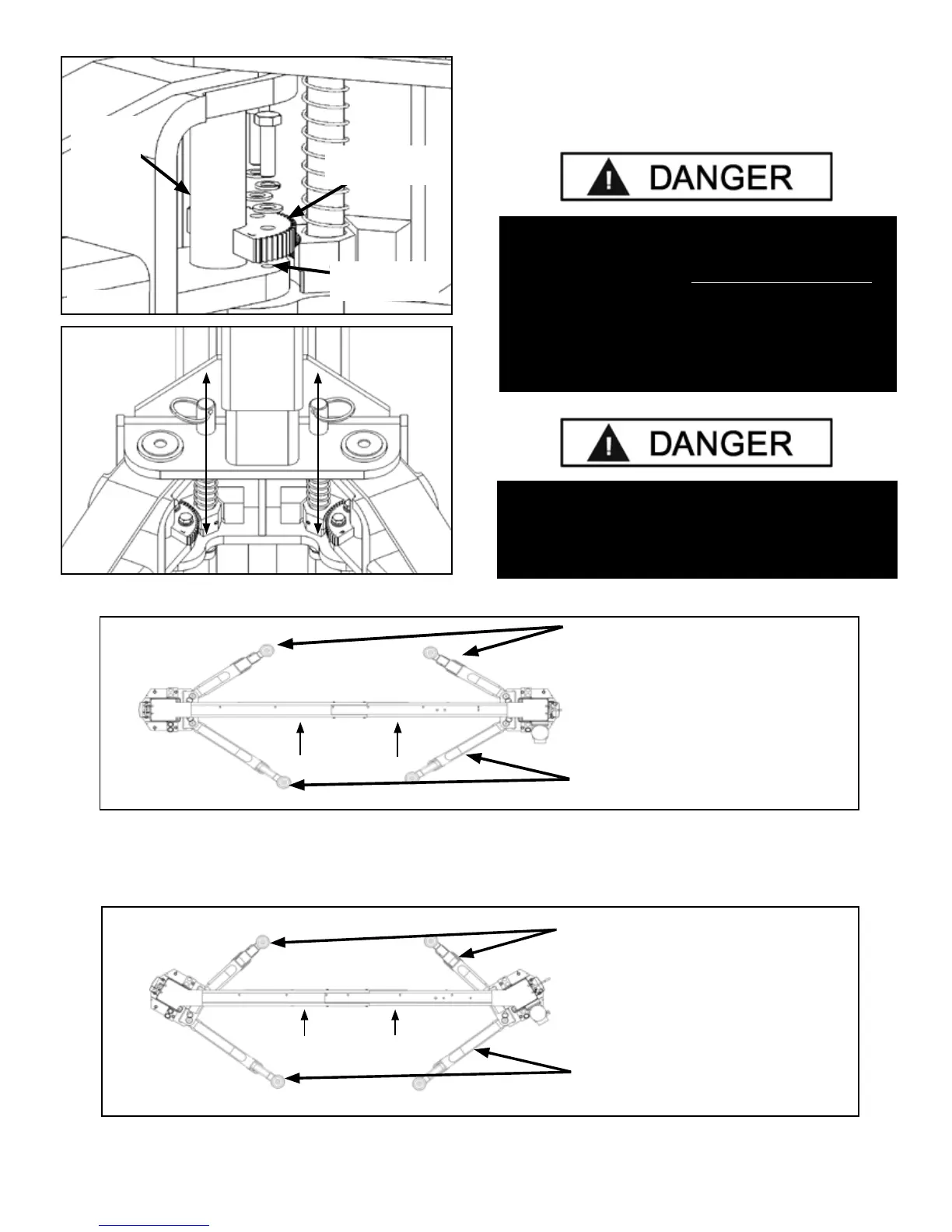

Fig. 14.5
Fig. 14.6
Fig. 14.7
Approach
Fig. 14.8
XPR-10AS: Triple Telescoping Arm Assembly
XPR-10AS-LP: Short Arm Assembly
XPR-10S/TS: Triple Telescoping Arm Assembly
XPR-10S-LP: Medium Arm Assembly
XPR-10AS/LP: Long Arm Assembly
XPR-10S/LP: Medium Arm Assembly
XPR-10TS: Triple Telescoping Arm As-
sembly
Approach
Arm Ear
threaded holes
Arm Restraint
Gear Ring
Lift Head
Pin
REPLACE ANY BROKEN COMPONENTS OR
COMPONENTS WITH BROKEN TEETH ONLY
WITH AUTHORIZED OR APPROVED
REPLACEMENT PARTS.
NOTE:
EACH ARM RESTRAINT ASSEMBLY MUST BE
INSPECTED BEFORE EACH AND EVERY TIME
THE LIFT IS OPERATED.
DO NOT OPERATE THE LIFT IF ANY OF THE FOUR
ARM RESTRAINT SYSTEMS ARE NOT
FUNCTIONING PROPERLY.
