BendPak XPR-10S User Manual

53

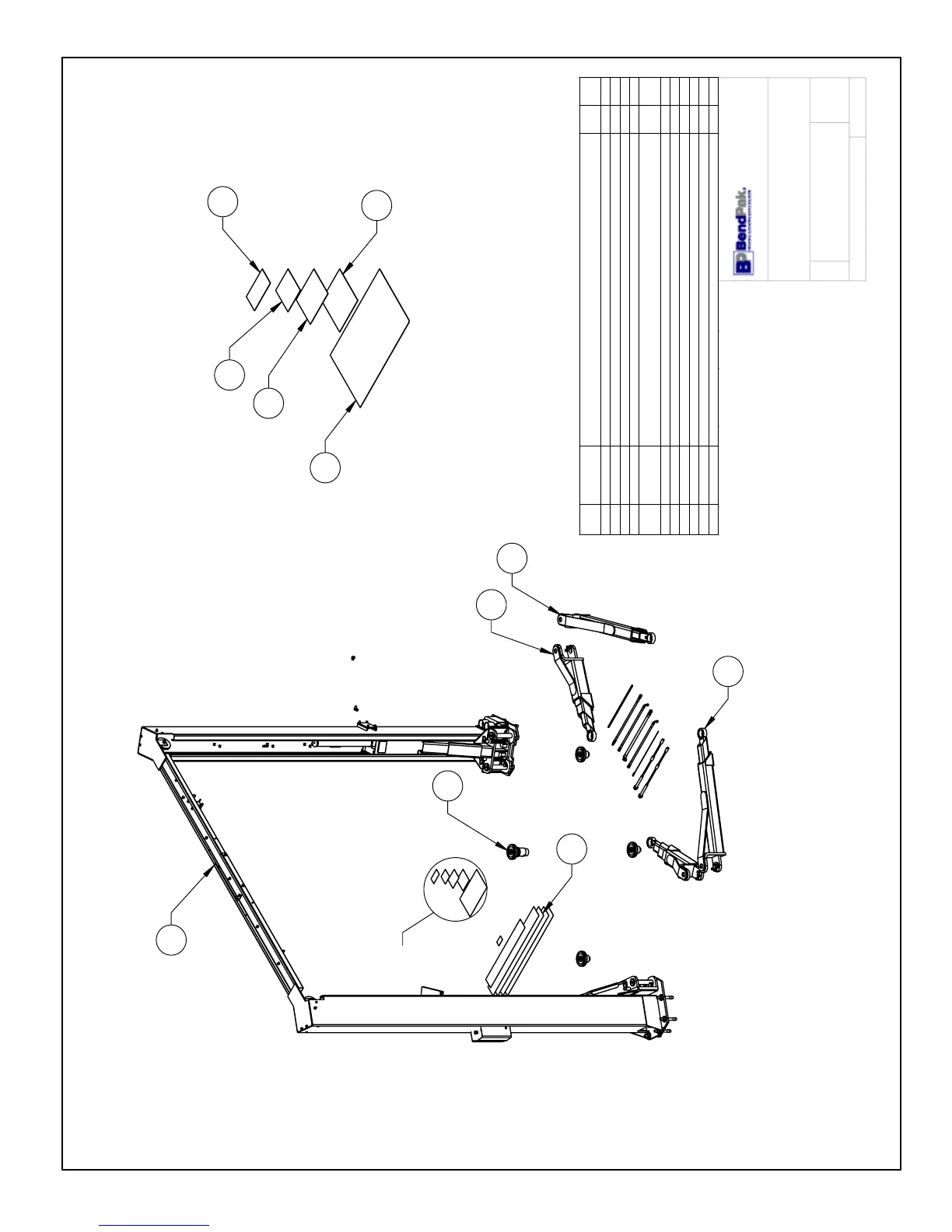

DIMENSIONS ARE IN MM
☺
A
5
1
3
4
2
7
DETAIL A
SCALE 1 : 12
10
11
8
9
6
ITEM
NO
PART
NUMBER
DESCRIPTION
QTY
REV
1 5245044
XPR-10A LIFT SUPERSTRUCTURE
1
D
2 5250039
XPR-10AS PARTS BOX
1
A
3 5215286
XPR-10A LOW PROFILE LONG ARM ASSEMBLY, R.H.
1
C
4 5215285
XPR-10A LOW PROFILE LONG ARM ASSEMBLY, L.H.
1
C
5 5215284
XPR-10AS LOW PROFILE TRIPLE TELESCOPING ARM
ASSEMBLY
2
C
6 5905109
WARNING ALI/WL 101
1
-
7 5905131
2 POST DECAL KIT, LESS ALI
1
C
8 5905403
MAX CAP DANGER 10K
1
-
9 5905465
MANUFACTURER LABEL
1
-
10 5905940
PRODUCT DATA LABEL
1
-
11 5905950
2015_SERIAL_TAG-A-5905950
1
-
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
A
PRODUCTION RELEASE, DERIVED FROM 5260088
12/14/2015
TM
00738
SHEET 1 OF 2
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
A
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED
.
TM
5260562
XPR-10AS PRODUCTION
LIFT VER F
12/14/2015
DO NOT SCALE DRAWING
1:35
SCALE:
THIRD ANGLE PROJECTION
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING
1.
ALL LABELS TO BE APPLIED TO POSTS AFTER PAINTING.
2.
SEE ATTACHED LABEL PLACEMENT SHEET.
