When removing the lift from shipping angles, pay close attention as the posts can slide and can cause injury. Prior
to removing the bolts make sure the posts are held securely by a fork lift or some other heavy lifting device.
PARTS INVENTORY
Be sure to take a complete inventory of parts prior to beginning installation.
Description Qty
Overhead Assembly 1
Front Lift Arm Assembly 2
Rear Lift Arm Assembly 2
Off Side Post with Carriage Assembly 1
Power Side Post with Carriage Assembly 1
Hydraulic Cylinder 2
Parts Box (Packing List Enclosed) 1
Parts Bag (Packaged in Part Box) 1
Hydraulic Power Unit 1

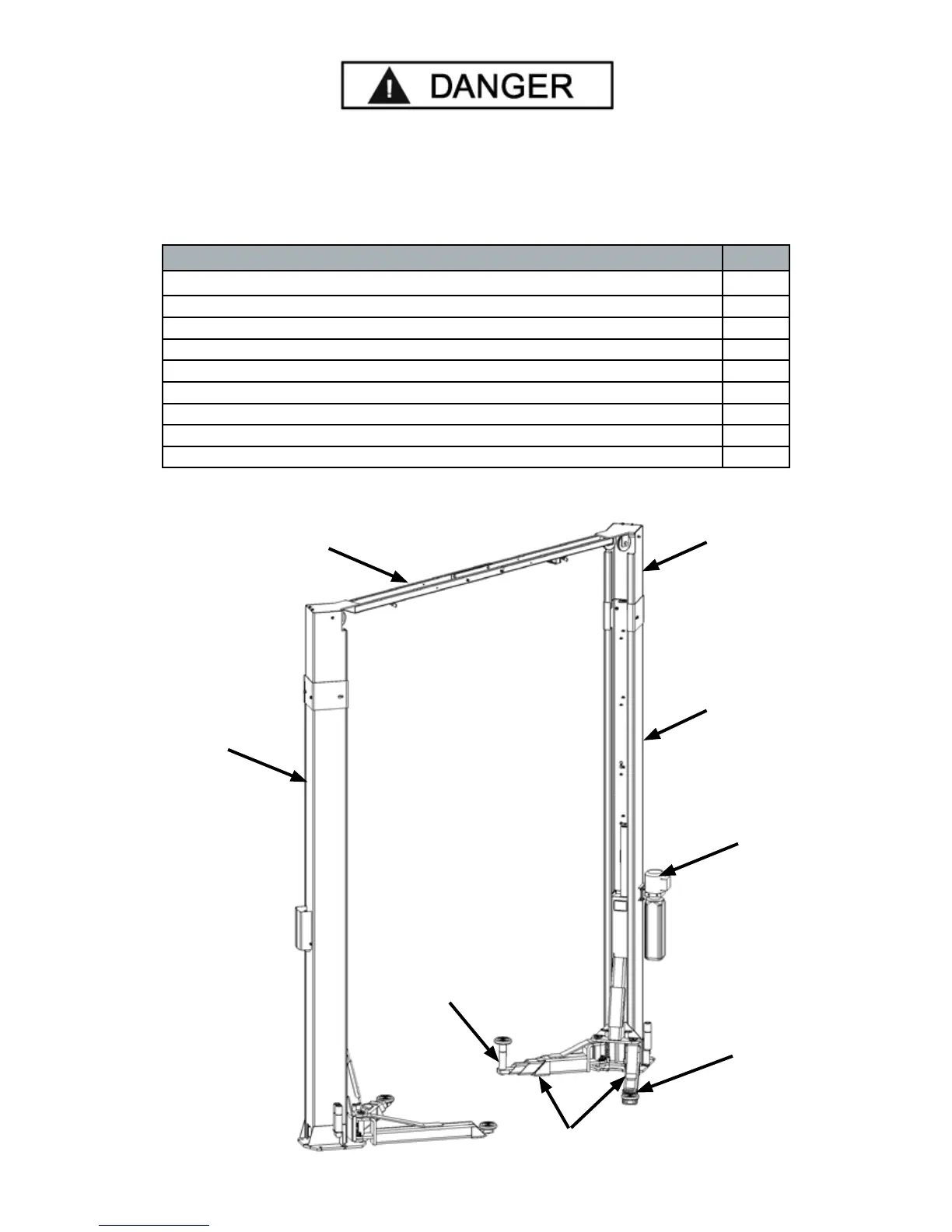

Overhead
Assembly
Off Side Post
Assembly
Post Extension
Weldments
Power Side Post
Assembly
Hydraulic
Power Unit
Telescoping
Screw Pad
Front and Rear
Arm Assemblies
Stacking Pad
Adapters
