BendPak XPR-10S - Page 72

72

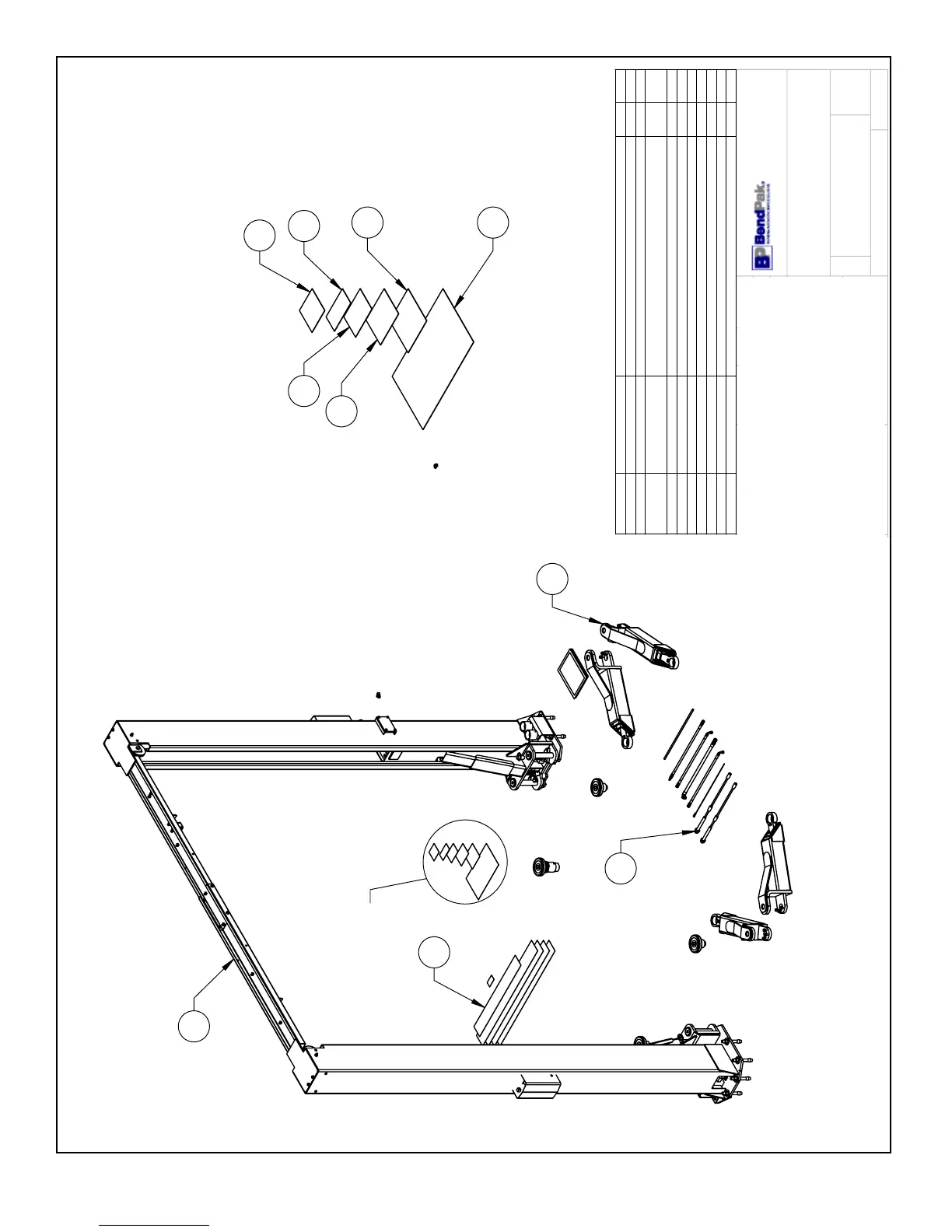

DIMENSIONS ARE IN MM
☺
A
1
2
3
5
DETAIL A
SCALE 1 : 12
10
98
6
7 4
ITEM NO
PART NUMBER
DESCRIPTION
QTY
REV
1 5245227
XPR-10 LIFT SUPERSTRUCTURE
1
R
2 5250048
XPR-10S PARTS BOX
1
A
3 5215287
XPR-9S/9DS/10S LOW PROFILE TRIPLE
TELESCOPING ARM ASSEMBLY
4
C
4 5905109
WARNING ALI/WL 101
1
--
5 5905131
2 POST DECAL KIT, LESS ALI
1
C
6 5905403
MAX CAP DANGER 10K
1
--
7 5905465
MANUFACTURER LABEL
1
--
8 5905655
MAX CAP NRTL DANGER 10K
1
--
9 5905940
PRODUCT DATA LABEL
1
--
10 5905950
2015_SERIAL_TAG-A-5905950
1
--
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
A
PRODUCTION RELEASE, DERIVED FROM 5260447
12/16/2015
TM
00738
SHEET 1 OF 2
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
A
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED
.
TM
5260572
XPR-10TS PRODUCTION
LIFT VER E
12/16/2015
DO NOT SCALE DRAWING
1:30
SCALE:
THIRD ANGLE PROJECTION
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING
1.
ALL LABELS TO BE APPLIED TO POSTS AFTER PAINTING.
2.
SEE ATTACHED LABEL PLACEMENT SHEET.
