Install the Floorplate XPR-9SBT Only
The Floorplate protects the Hydraulic Hoses, their connections, and the Equalizing Cables. The XPR-
9SBT uses three Floorplates (5210018) dropped into the recessed concrete. The Floorplates should
be roughly flush with the top of the Concrete Pour and require no fasteners.
Install the Floorplate XPR-9TF Only
The Floorplate protects the Hydraulic Hoses, their connections, and the Equalizing Cables. The XPR-
9TF uses one long Floorplate (5210018) for the narrow configuration. The Floorplate is
mechanically captured between the Lift Post Base Plates and requires no fasteners.

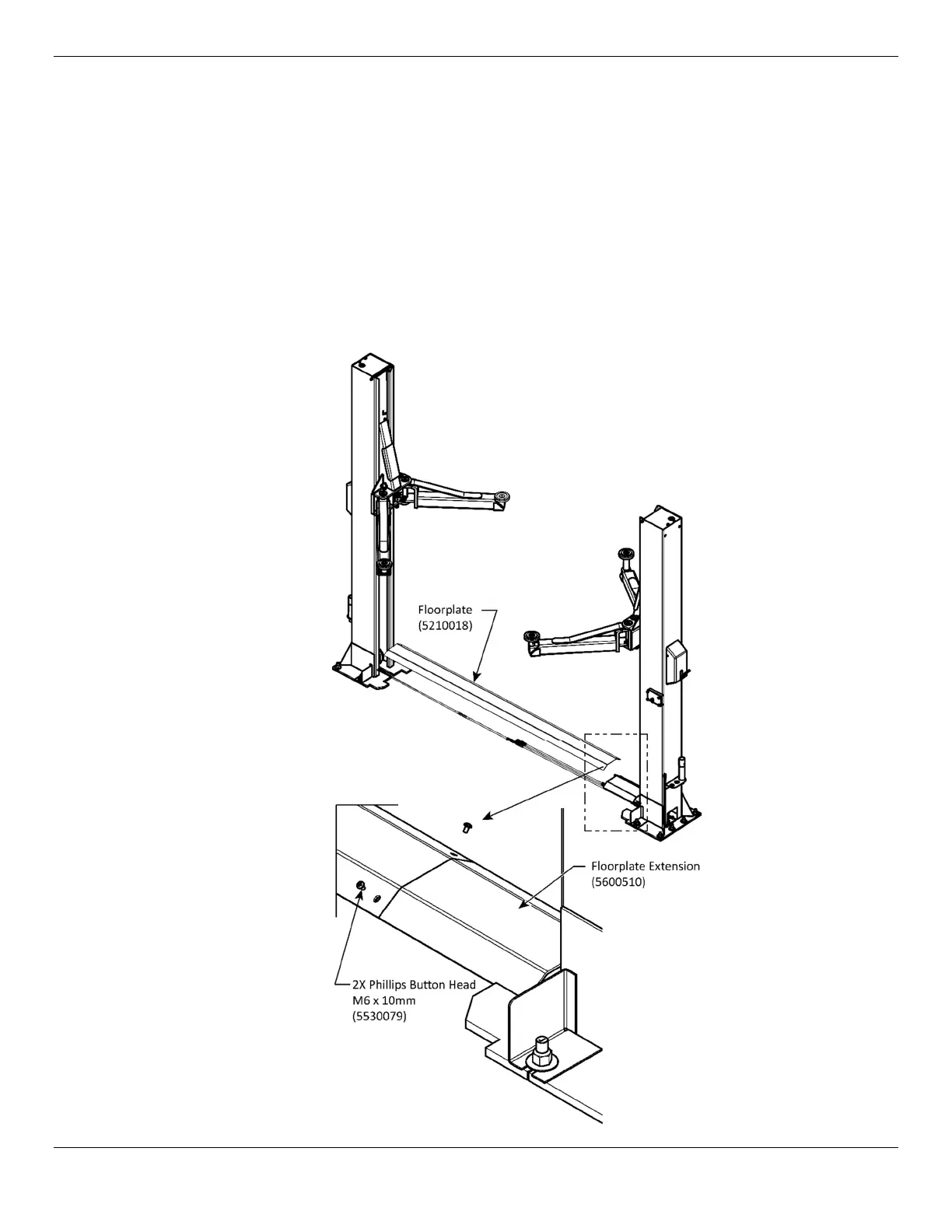

The XPR-9TF in the wide configuration requires an extension (5600510) and two fasteners
(5530079) as detailed in the figure below.
