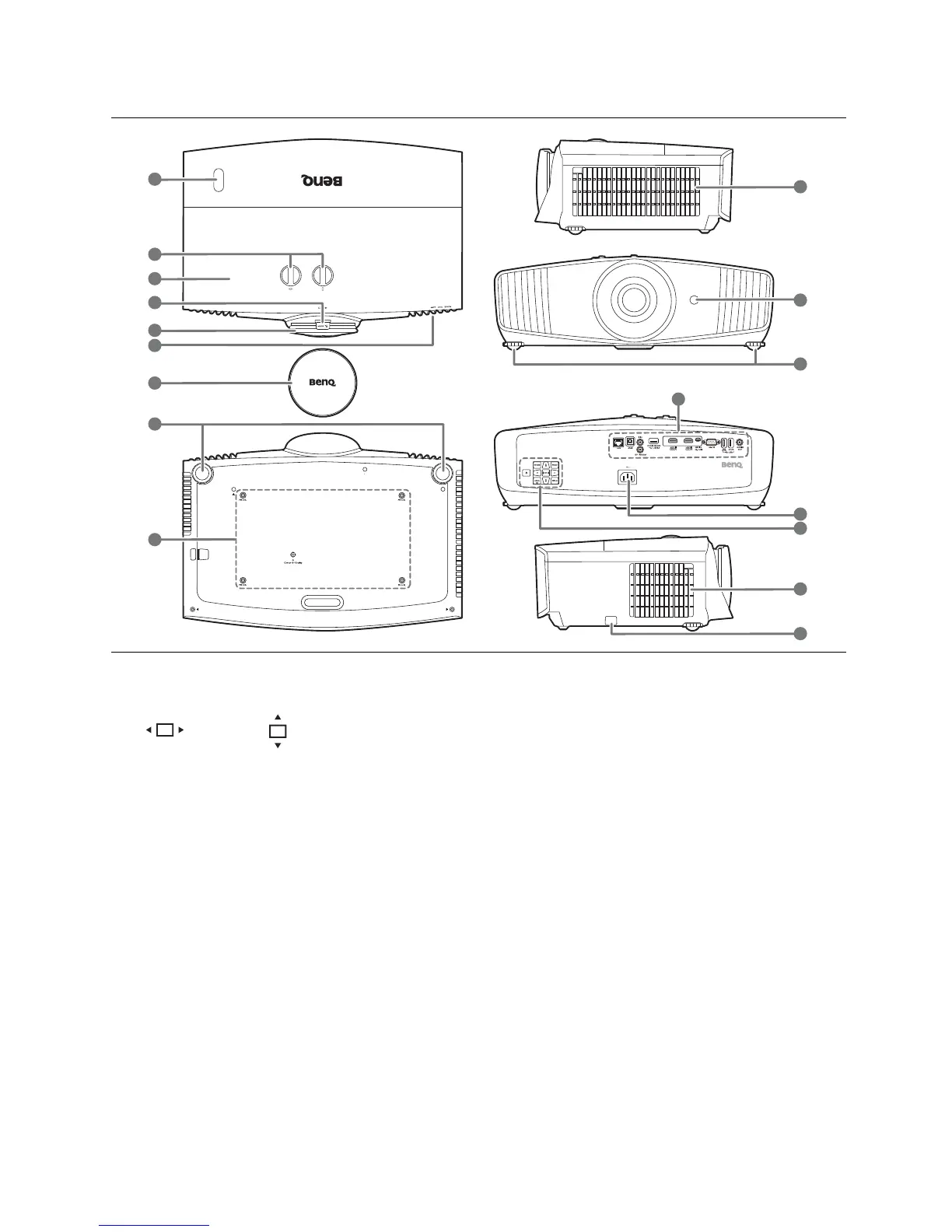

Projector exterior view
1. IR remote sensor
2. Lens shift adjustment knobs
( Left/Right, Up/Down)
3. Lamp cover
4. Zoom ring
5. Focus ring
6. POWER indicator light/TEMPerature
warning light/LAMP indicator light
See Indicators on page 44.
7. Lens cover
8. Adjuster feet
9. Ceiling mount holes
10. Vent (air inlet)
11. Connector panel
See Terminals on page 9.
12. AC power jack
13. External control panel
See Controls and functions on page 10.
14. Vent (air exhaust)
15. Anti-theft security bar
