BenQ HT5550 - Terminals

9 Introduction

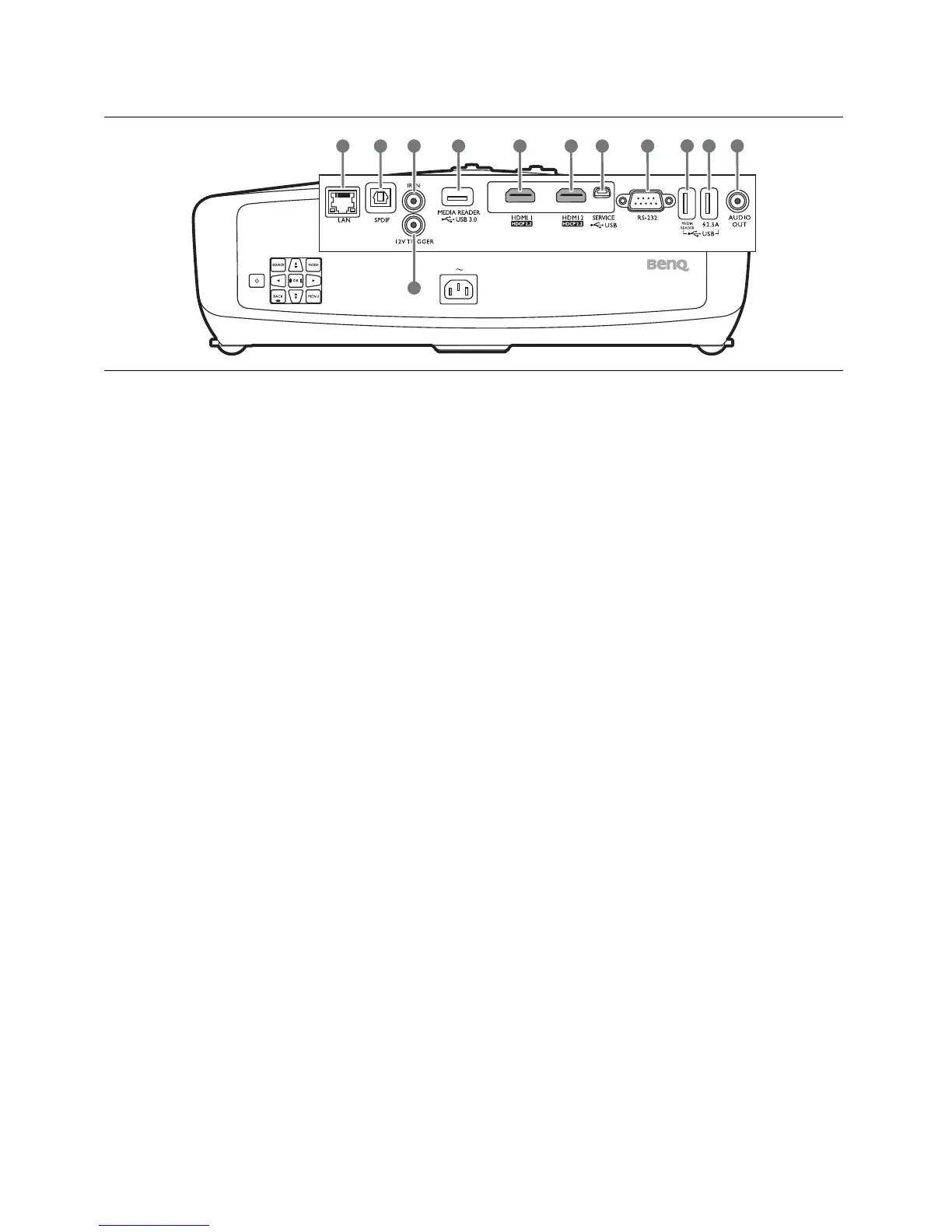

Te r m i n a l s
1. RJ-45 LAN input jack (10/100M)
2. SPDIF audio output port
3. IR-IN jack
For use with an IR extender cable to ensure
better signal reception from the remote
control.
4. 12V DC output terminal
Triggers external devices such as an electric
screen or light control, etc.
5. USB 3.0 Type-A port (MEDIA READER)
Connects to a USB flash drive for reading
multimedia files. See Presenting from a
Media Reader on page 23.
6. HDMI input port (Version 2.0b)
7. HDMI input port (Version 2.0b)
8. USB Mini-B port (for firmware upgrades)
9. RS-232 control port
10. USB 2.0 Type-A port (MEDIA READER)
Connects to a USB flash drive for reading
multimedia files. See Presenting from a
Media Reader on page 23.
11. USB 2.0 Type-A port (2.5 A power supply)
12. Audio output port
11
12
10
1 2 3
4
5 6 7 8 9
